UNI-T UT685B KIT

Name: UNI-T UT685B KIT - Communica [Part No: UNI-T UT685B KIT]
Brand: Uni-T
SKU: UNI-T UT685B KIT
Price: 2650 ZAR
Availability: OutOfStock

SKU: UNI-T UT685B KIT

BRAND: Uni-T

Sold Out
R 3,047.50_{(inc VAT)}
R 2,650.00_{(ex VAT)}

Collections: New Arrivals, Test & Measurement

Type: LAN/Telecom/Cable Testing

Category: Cable Tester Kit, New

TDR Cable Tester 2.8Inch LCD, Tested Cable Type: UTP (Unshielded Cable) - FTP (Aluminum Foil Shielded Cable) - SSTP (Double Shielded Network Cable), Coaxial Cable: 50Ω,75Ω, 93Ω, RANGE: 500M, Resolution: 0.33m , PoE Detection, I/P Protection: 70VDC

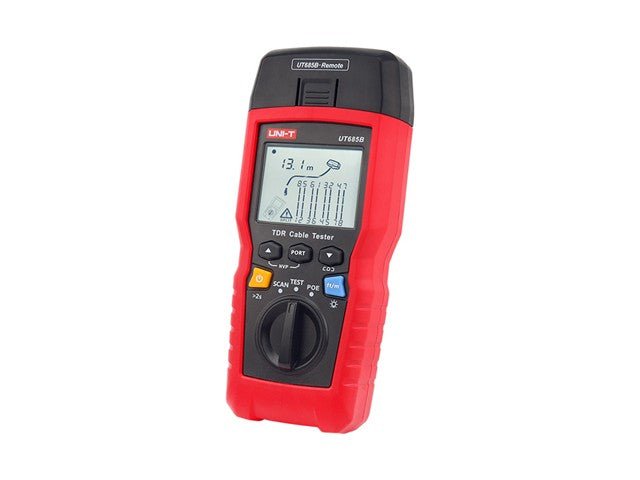

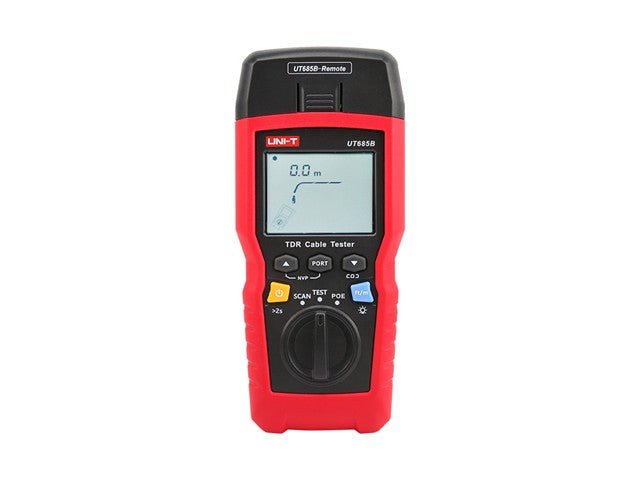

2.8Inch LCD TDR Cable Tester

Overview

UT685B can test various types of cables (including twisted pair cable, coaxial cable, and POE network cable): you can find the cable, detect the cable length, and line sequence, and confirm whether it is POE and POE standards. Plus, it integrated RJ11, RJ45, and coax test ports to support virtually any low-voltage cable testing without needing awkward adapters.

Effectively reduce the operator's ineffective testing and improve work efficiency, which makes high-quality installations more efficient and easier to troubleshoot.

Features

2.8 inch backlit LCD display
Graphical interface
Cable length test
Tests RJ11, RJ45 and coaxial cable types
Identify POE standards
Digital hunt
Range 500m
Resolution 0.33m
70V DC input protection
TDR technology: no blind area testing

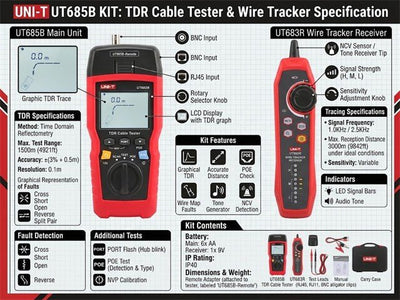

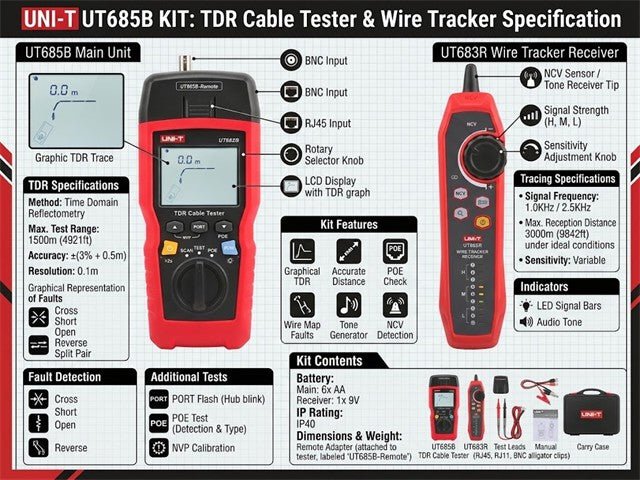

Specifications

Tested cable type	Twisted pair cable: 1. UTP (unshielded cable), 2. FTP (aluminum foil shielded cable); 3. SSTP (double shielded network cable);
Tested cable type	Coaxial cable: 50Ω, 75Ω, 93Ω
Cable length test	Range: 500 m
	Resolution: 0.33 m
	Accuracy: ± 4% or 0.6 m
POE detection	POE power detection
	POE standard: 802.3AF
	POE standard: 802.3AT
Ethernet port test	Yes
Cable location	Yes
Port blinks	Yes
Input protection	70VDC
Screen	2.8″ LCD
Auto power off	Around 10 minutes
General Characteristics
Standard accessories	RJ45 adapting cable: 1 pc; RJ11 adapting cable: 1 pc; RJ11 adapting cable (adapted to alligator clip): 1 pc; Plug, F-connector to F-connector: 1 pc; User manual: 1 pc
Power	AAA alkaline batteries x4
Product Dimension	180mm×84mm×37.8mm

Downloads

Datasheet - UNI-T UT685B KIT

Additional Information

Device	Cable Tester
Type	2.8Inch \| LCD \| TDR
