Hand Held Signal Generator, Which can simulate a 0 to 10V Voltage Signal and 0/4-20mA Current Signal. Unit Includes A Rechargeable Lithium Battery, 3.7V/1100mAh

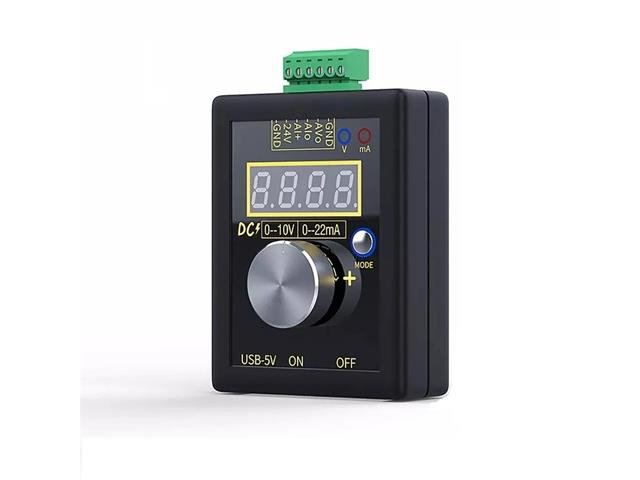

Hand Held Signal Generator
Overview
This handheld small voltage and current signal generator can be used in scientific research, laboratories, company factories, electrical maintenance, etc.
Features
- The voltage and current signal generator is the most commonly used electrical test instrument for electrical engineers and technicians during onsite installation, commissioning, overhaul and maintenance of electrical equipment.

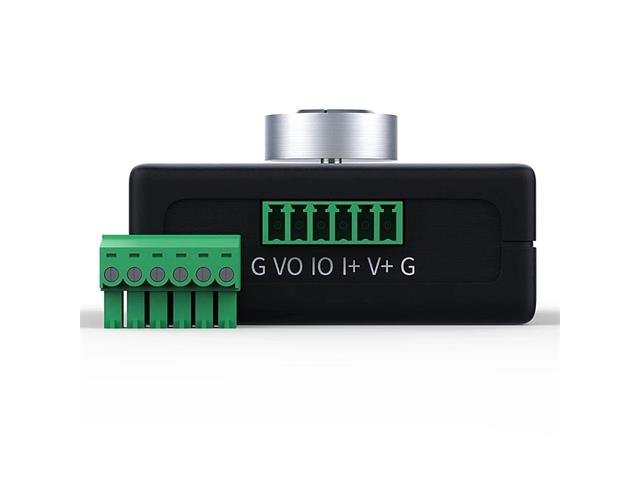

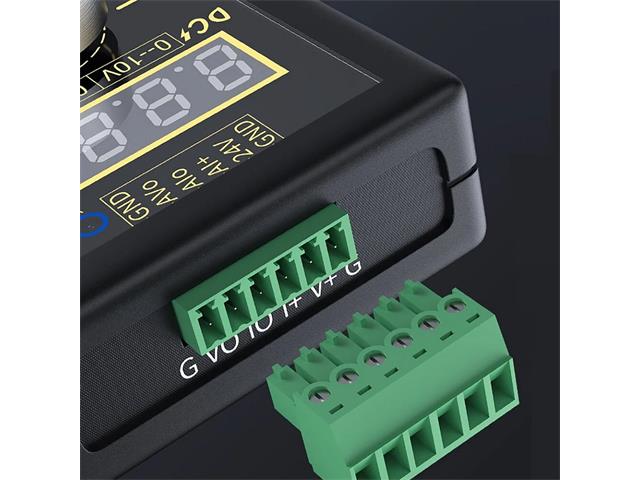

- Plug gable terminal blocks, safe and convenient wiring.

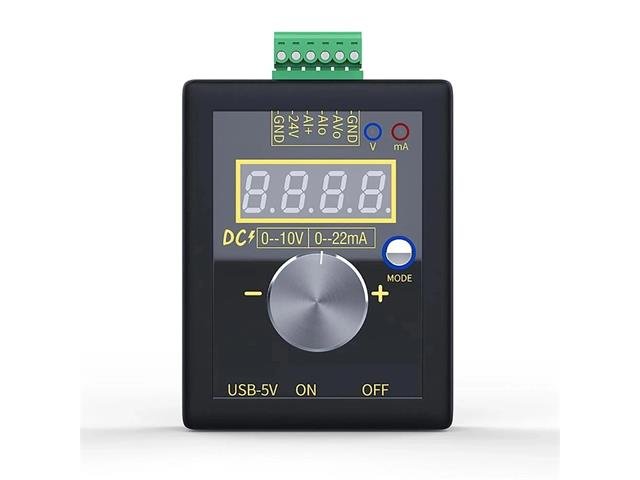

- 4-digit high-definition digital tube, the display brightness is evenly adjustable (1-8 brightness).

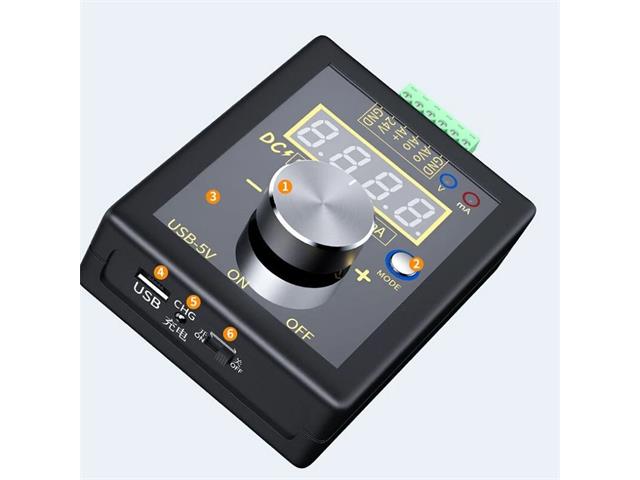

- Aluminum knob cap, electroplating button, high-quality film, charging indicator, battery switch.
- Three power supply methods: external power supply, DC5V micro USB, built-in lithium battery (chargeable). As long as you work all the way, you can also connect at the same time.
- DC 15-30V external power supply, which can share the 24V power supply of PLC and other equipment.
- Micro USB universal interface, can be connected to mobile power, charger, computer USB port, etc.
- On the normal operation screen, save a voltage and current value, click the encoder to save, and after releasing the "OK" button, the screen displays "...", indicating that the save is successful. After restarting, the saved value will be displayed directly, and there is no need to adjust the parameters every time when starting up, which is very practical.
- Easy to carry and small in size, it is the best choice for on-site debugging.
Specifications
- Material: ABS
- Color: black
- Voltage output: 0-10V
- Current output: 0-22mA
- Charging method: built-in lithium battery (chargeable).
- Battery: 1*Lithium battery, 3.7V, 1100mAh
- Size: about 13 x 10 x 4cm
Additional Information
| Device |
Generator |
| Type |
Hand Held | Signal |
