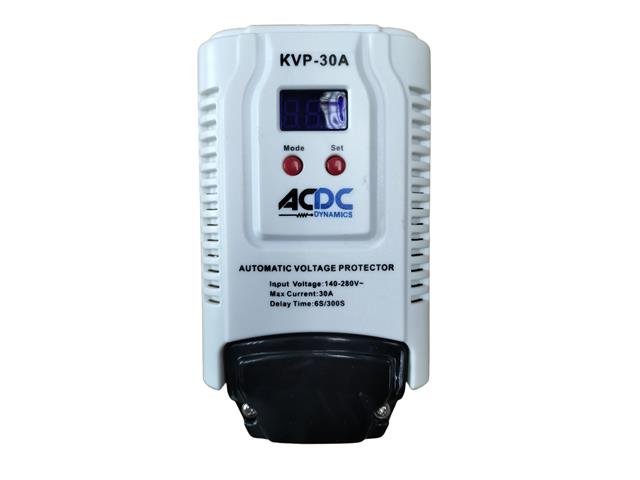

KVP-30A

Name: KVP-30A - Communica [Part No: KVP-30A]
Brand: ACDC
SKU: KVP-30A
Price: 575 ZAR
Availability: InStock

SKU: KVP-30A

BRAND: ACDC

In Stock
R 661.25_{(inc VAT)}
R 575.00_{(ex VAT)}

Collections: New Arrivals, Power

Type: Surge Protection

Category: Automatic Voltage Protector, New

Automatic Voltage Protector 30A, I/P Voltage:140-280vac, Delay Time:6s/300s, Surge/Spike Amps:6.5ka, Response Time Under Voltage:1s, High Voltage Disconnect (HVD):210-270VAC (Def:255VAC), High Voltage Reconnect:5-10V Below HVD, Reconnect Delay:6s-2m

Automatic Voltage Protector

Feature

Wide regulated voltage range 140-280V
Microprocessor controlled PCB board
Adjustable parameters settings
High speed response time <200ms
Automatic recovery system without user’s intervention
Full protection such as high/low voltage, delay output, overload, short circuit, surge, spike

Specifications

Name	Power Guard Voltage Protector
Model	KVP-30A
Input Voltage	140-280Vac±5Vac
Output Voltage	AC 220V/230V
Output Current	Max.30A
Output Frequency	50/60Hz
Functinal Settings
1. Delay Time	1s-300s selectable
2. High Voltage	230-280V selectable
3. Low Voltage	140-200V selectable
4. Over Current	2-30A selectable
Protection	Delay Output/Low Voltage/High Voltage/Overload/Short Circuit/Surge/Spike
Safety Standard	CE (LVD+EMC)
Unit Weight/N.W.	0.2 kgs
Giftbox Size (mm)	530380260 (20)

Downloads

Datasheet - KVP-30A

Additional Information

Device	Votage Protector
Type	Automatic
