Overview

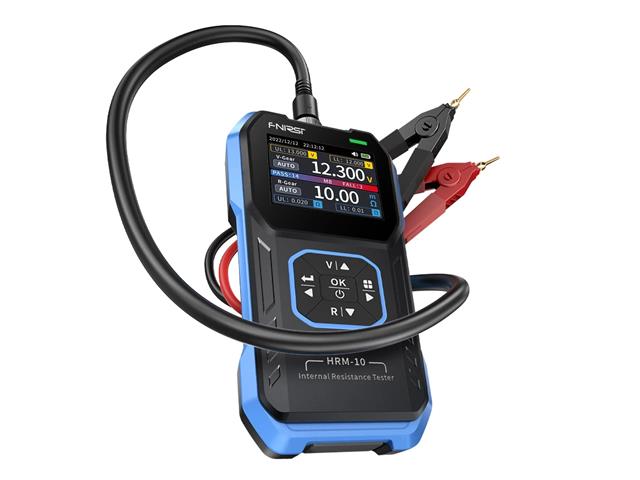

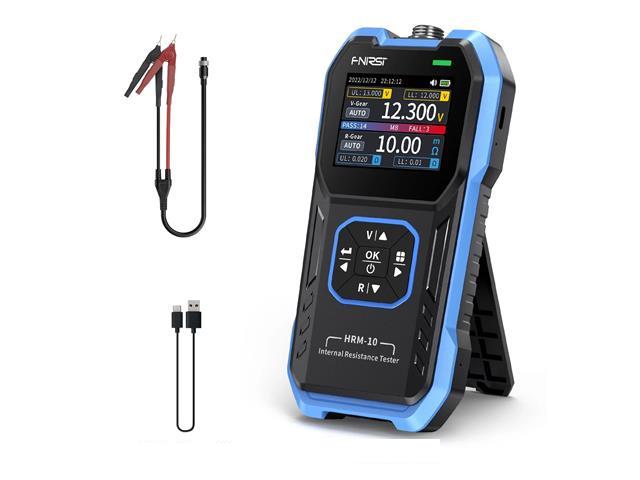

FNIRSI "HRM-10" is our company's first handheld high-precision attery internal resistance meter. It is a true four-wire measurement internal resistance meter, designed with precision, convenient to carry. The device can automatically test internal resistance and voltage values simultaneously, with measurement results displayed on the screen. Users can also manually adjust the voltage and resistance range. The product features a sorting mode, automatically filtering the good and bad batteries based on user-set thresholds. It also supports historical records and exporting data tables of historical measurements.
Features
- Voltage Internal Resistance Battery Tester: FNIRSI battery tester can automatically test internal resistance and voltage value at the same time. The measured value can be used to determine whether the battery quality has decreased.
- TFT HD Color Display: The display adopts advanced color HD technology and excellent layout. Compared with traditional monochrome displays, it can present test results more clearly and vividly, greatly enhancing the user's measurement experience.

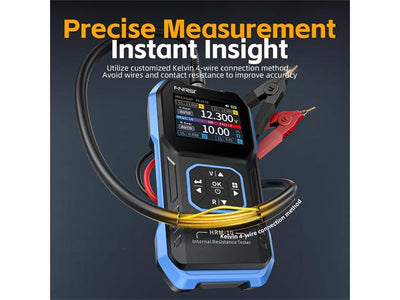

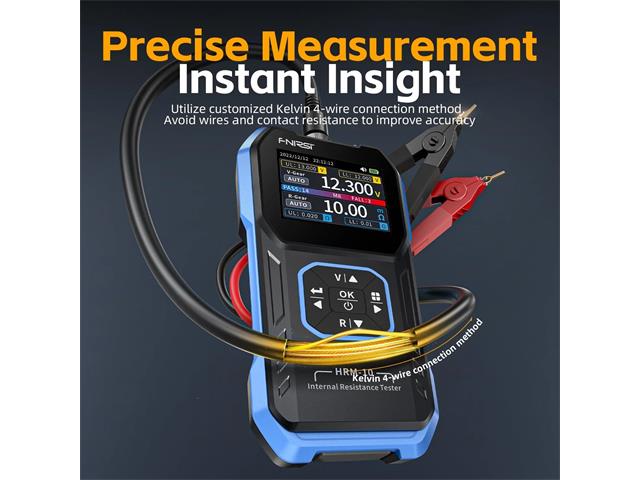

- Accurate Measurement: Adopts customized Kelvin four-wire connection method to avoid wire and contact resistance and improve measurement accuracy. Users can also manually adjust the voltage and resistance range.

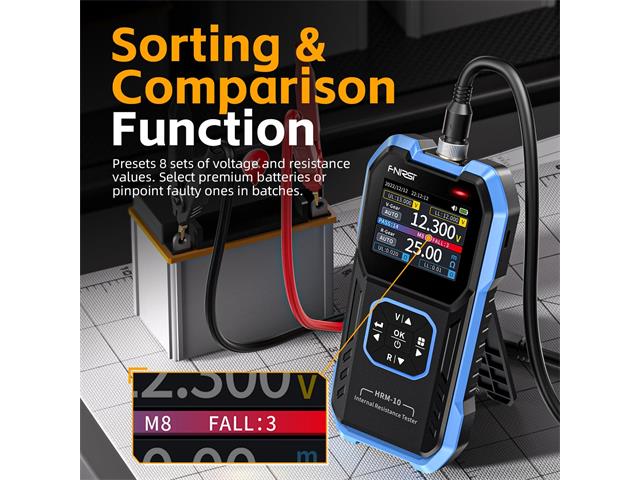

- Wide Application Range: Suitable for all kinds of batteries. Car battery tester, household battery. It supports historical records and export data tables of historical measurements. View 8 sets of voltage and resistance values to batch select batteries.
- LED Display Handheld Meter: The resistance measurement range is up to 200Ω and the voltage measurement range is up to 100 V. The device must not be used with a DC voltage higher than 100V. Do not apply AC voltage under any circumstances.
Specifications
Type : Vehicle Battery Tester
Voltage Measuring Range : 0 ~ ±100V (DC)
Voltage Gear : Auto, 1V, 10V, 100V
Resistance Measuring Range : 0 ~ 200Ω
Resistance Gear : Auto, 20mΩ, 200mΩ, 2Ω, 20Ω, 200Ω
Signal Frequency : AC 1Khz
Rechargeable : Type-C Intrrface (5V/1A)
Battery : 1000mAh lithium battery
User Calibration : Support
Recorded Data Export : Support
Working Environment : -10℃ ~ +45℃, relative humidity < 80%
Storage Environment : -20℃ ~ +80℃, relative humidity < 80%
Downloads
Additional Information
| Device |
Tester |
| Type |
Battery Voltage | Internal Resistance |
