Programmable Mini Portable DC Power Supply. 30V, 5A, 150W Variable DC Power with 0.01V, 0.001A Precision, CC/CV Modes, and <20MV Ripple to Protect Sensitive Electronics. Does Not Include PD65 Adapter
Programmable Mini Portable DC Power Supply
Overview
The FNIRSI-DP150 is a high-performance adjustable DC power supply launched by our company. It features a Type-C input interface and multiple power supply modes, allowing precise adjustment of output voltage (0-30V) and current (0-5A). It provides efficient, low-consumption, and stable output, equipped with multiple safety protection functions including overvoltage, overcurrent, overload, overheating, and reverse connection. It can be flexibly applied to serial connection of multiple devices, with rich and user-friendly display and operation, compact and portable humanized design, meeting various application needs. It is designed to provide you with high-performance and stable CNC power supply.
Features

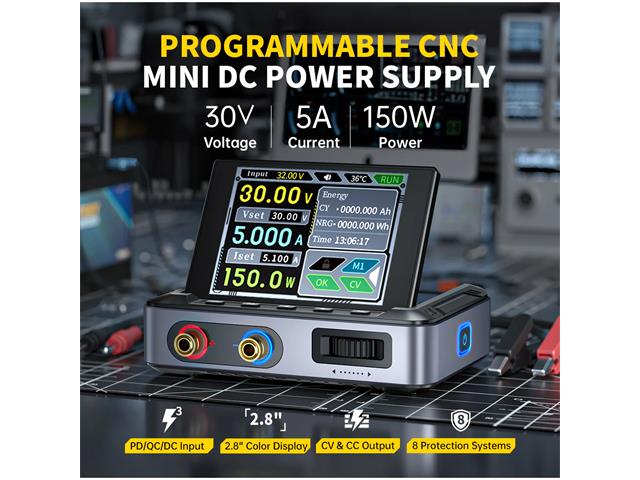

- High-Performance Output: 30V, 5A, 150W variable DC power with 0.01V, 0.001A precision, CC/CV modes, and <20mV ripple to protect sensitive electronics.

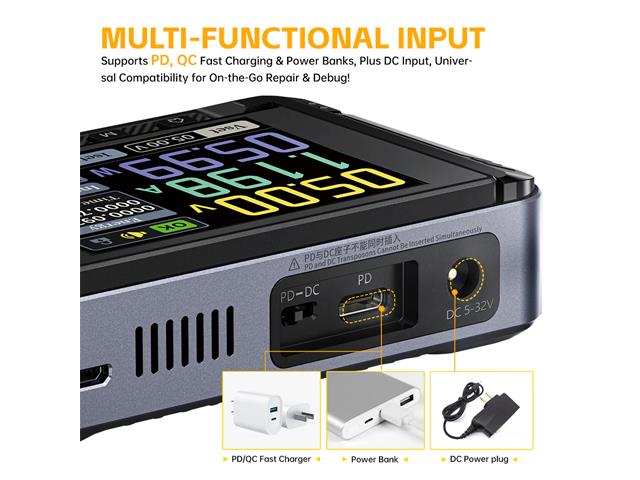

- Upgraded Features: Supports PC, QC, and DC inputs with programmable outputs and 6 preset voltage/current settings.
- Versatile Connections: Compatible with 4mm banana plugs, U-shaped terminals, and copper wires for various equipment.
- Comprehensive Protection: 8 safety mechanisms including overvoltage, current, short circuit, and overheating protection.

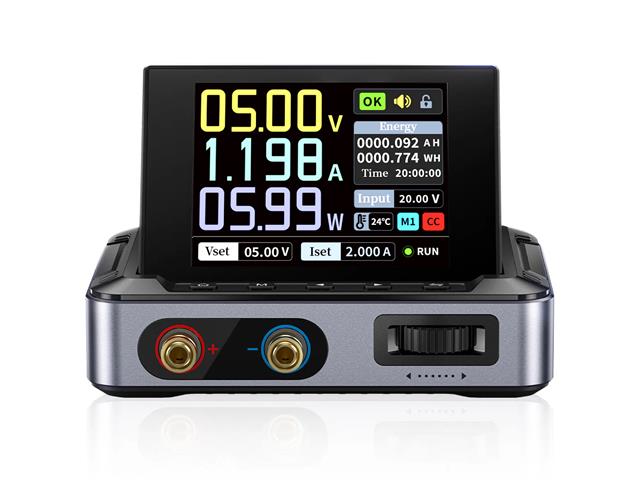

- HD Display: 2.8-inch IPS screen with 90° flip, numerical and curve displays for easy monitoring.
- Compact & Portable: Small, space-saving design for use in labs, repairs, and DIY projects.
Specifications
- Model : DPS-150
- Input Voltage : DC 5.0V~32V
- Input Current : 100mA-5A
- Input Way
- PD fast charger
- QC fast charger
- Power bank
- DC power adapters
- Output Voltage : 0~30V
- Output Currentv0~5A
- Output Power : 0-150W
- Operating Environment : 0℃-40℃
- Load Regulation : 0.49%
- Full Load Efficiency : 96.30%
- Screen : 2.8 Inch (320x240)
- Weight : about 178g
- Dimensions : 106x76x28mm
- Overvoltage Protection : Support
- Overcurrent Protection : Support
- Undervoltage Protection : Support
- Overpower Protection : Support
- Overtemperature Protection : Support
- Reverse Input Protection : Support
- Reverse Output Protection : Support
- Short Circuit Protection : Support

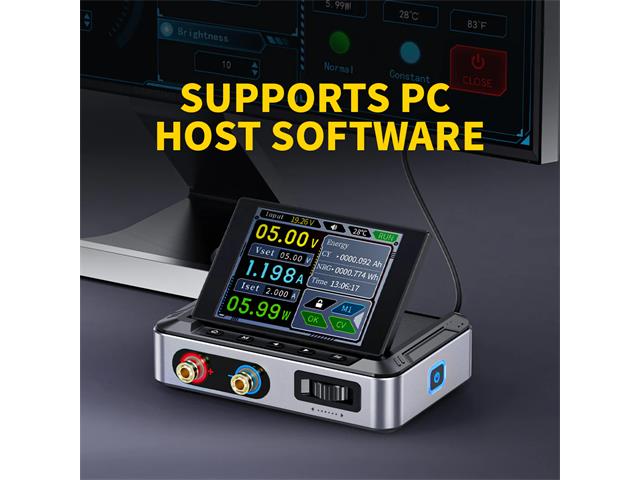

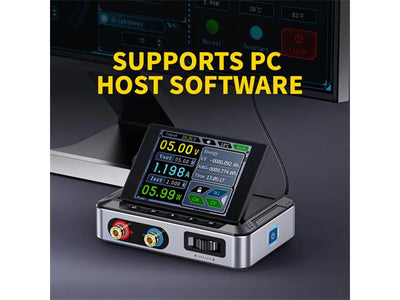

- Upper Computer Software : Support
- Firmware Upgrade : Support
