BDD PANEL SIGNAL GENERATO 4-20MA

Name: BDD PANEL SIGNAL GENERATO 4-20MA - Communica [Part No: BDD PANEL SIGNAL GENERATO 4-20MA]
Brand: Communica
SKU: BDD PANEL SIGNAL GENERATO 4-20MA
Price: 295.65 ZAR
Availability: InStock

SKU: BDD PANEL SIGNAL GENERATO 4-20MA

BRAND: Communica

In Stock
R 340.00_{(inc VAT)}
R 295.65_{(ex VAT)}

Collections: Test & Measurement

Type: Function Generators & Synthesisers

Category: Panel Mounted Signal Generator

A High Precision Programmable Panel-Mounted Signal Generator Which Can Simulate A 4mA to 20mA Signal. Has A Backlit LCD Display. Its Display Accuracy IS 0.01mA.

Programmable Panel-Mounted Signal Generator

Overview

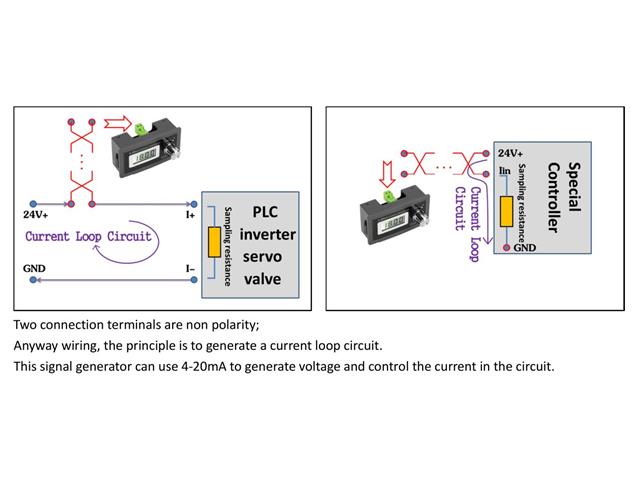

This Signal Generator is a high precision programmable panel-mounted, snap-in voltage signal generator current loop simulator with backlit LCD display. Its display accuracy is 0.01mA. Its output signal range, LED display mode, adjusting steps are all programmable through the encoders knob.The 4-20mA signal generator is an advanced simple current signal calibration tool for PLC, DCS, transmitter, meters and instruments, valves calibration, etc.

Specifications

Programmable Output to simulate sensor signals, Set 2-9 points to adjust, set 1-9 curve segments
Supply Voltage: 15V - 30V
Output Range: 4-20mA / 3-21mA
Display Mode: Actual Curren 0-100.0% 0-50.0Hz
Sampling Resistance: 500 ohms
Output Accuracy: ±5%
Display Accuracy: 0.01
Cutout: 77 x 40mm
Weight: 45g

Downloads

User Manual - BDD PANEL SIGNAL GENERATO 4-20MA

Additional Information

Device	Generator
Type	Programmable \| Panel-Mounted \| Signal
