SUN-8K-FBIHSK8K48P
Sunsynk Hybrid Inverter 8KW Battery Voltage :40~60V, Max Charge/Discharge Current 190A, PV Input Voltage:500V, Self-Adapt to BMS, MAX DC I/P PWR:10400W, MPPT Trackers 2, Max AC O/P PWR:8800W, 50Hz 230VAC (Single Phase), RS485, CAN, 670x420x233mm, 32kg, IP

SKU: SUN-8K-FBIHSK8K48P

BRAND: Sunsynk


Or split into 4x interest-free
payments Learn more

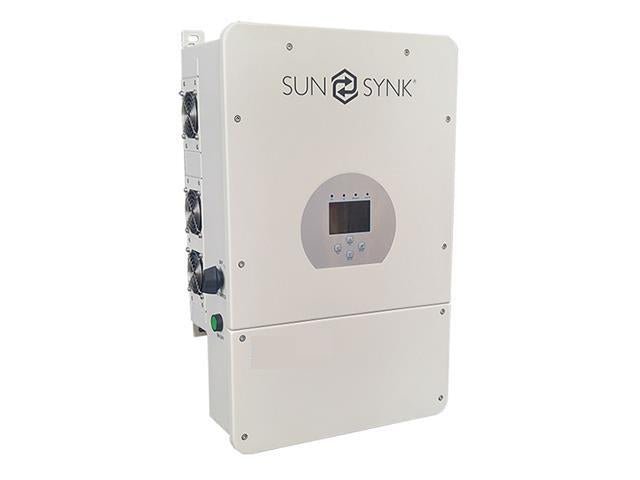

Sunsynk Hybrid Inverter

Reduce your electricity costs by managing power from various energy sources, including solar panels, batteries, the national electricity grid, a generator or even a wind turbine – all with a Sunsynk Hybrid Inverter.

It’s ideal for home and business and scalable so that you can expand it as required.

  • Start with UPS backup power (with batteries and inverter only) and add panels later;
  • Start with Grid-tied (with panels and inverter only) and add batteries later;
  • Install a complete Hybrid system including batteries and solar panels which can be expanded; or
  • Go totally off the grid with a completely independent system.

Ideal for powering TVs, decoders, computer equipment and appliances that consume more energy such as fridges, microwaves, washing machines, dishwashers, kettles and toasters.

  • Inputs:
    • PV solar
    • AC grid power
    • Batteries
    • Generator
  • Output voltage – 120/240Vac (split phase), 208Vac (2/3), 230Vac (single phase)
  • Continuous power – 8000W
  • Backup power – 8000W
  • DC – 48V
  • Battery charger – 190A
  • Transfer time <= 10ms
  • Battery charger adjustable for battery bank size and type
    • Can charge Lead Acid and Li-ion batteries
    • Li-ion battery charging self-adapts to BMS
  • Solar Input
    • Max power input – 10400W
    • Max V DC input – 370V (100V~500V)
    • Max current input – 18A + 18A
    • MPPTs – 2
    • MPPT Range – 125~425V
  • Multi-core processor design and advanced MPPT control
  • High reliability and response speed
  • Programmable export
  • Works parallel on or off-grid
  • Single or 3-phase operation
  • Multiple operating modes:
    • Battery only
    • Grid-tie only
    • Hybrid
    • Off-grid
  • Additional features
    • AC couple – For additional PV input
    • 6 stages time of use settings
    • IP65
Device Inverter
Type Hybrid
