• Supply voltage: 8 – 70 VDC
• Power draw without GX Touch : 2.8 W @ 12 V
• Power draw with GX Touch : Backlight off: 3.8 W @ 12 V | Backlight at max: 4.8 W @ 12 V
• Mounting : Wall or DIN rail (35 mm) (2)

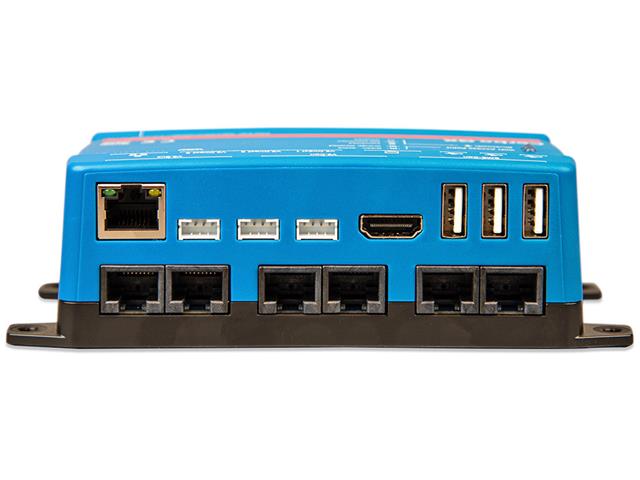

Communication ports

• VE.Direct ports (always isolated) : 3 (max. possible VE.Direct devices: 15) (3)
• VE.Bus (always isolated) : 2 paralleled RJ45 sockets
• VE.Can
  • Yes
  • VE.Can 1 isolated
  • VE.Can 2 non-isolated
• BMS-Can port : Yes – see VE.Can
• Bluetooth : Yes (4)
• Ethernet : 10/100 RJ45 socket - isolated except shield(7)
• WiFi : Built-in
• USB : 3USB Host ports

IO

• Resistive tank level inputs : 4
• Temperature sense inputs : 4
• Digital Inputs : 4
• Relays :  2 x NO/NC | DC up to 30 VDC: 6 A | DC up to 70 VDC: 1 A | AC: 6 A, 125 VAC

Other

• Outer dimensions (h x w x d) : 78 x 154 x 48 mm
• Operating temperature range : -20 to +50 °C
• IP Rating : IP20

Standards

• Safety : IEC 62368-1
• EMC : EN 301489-1, EN 301489-17
• Automotive : ECE R10-6

GX Touch 50 Flush / GX

• Mounting : Top/wall mount with included mounting accessories
• Protection cover
  • Included with every GX Touch from serial number HQ2242
  • Can also be purchased individually:
  • Part # BPP900462050: GX Touch 50 protection cover
  • Part # BPP900462070: GX Touch 70 protection cover
• Display Resolution : kkkGX Touch 50: 800 x 480GX | Touch 70: 1024 x 600
• IP Rating : IP54 (without connectors)
• Outer dimensions (h x w x d)
• GX Touch 50: 87 x 128 x 12.4 mm | GX Touch 70: 113 x 176 x 13.5 mm
• GX Touch 50 Flush: 94 x 136 x 12 mm | GX Touch 70 Flush: 120 x 184 x 13 mm
• Cable length : 2 meter

1. Datasheet - VICT CERBO GX MK2
