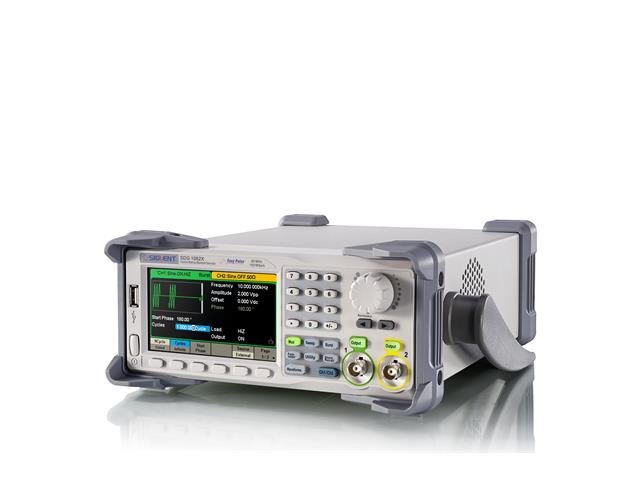

SIGLENT’s SDG1000X is a series of dual-channel function/arbitrary
waveform generators with specifications that include up to 60 MHz
maximum bandwidth, 150 MSa/s sampling rate and 14-bit vertical
resolution. The proprietary EasyPulse & TrueArb technique helps to
solve the weaknesses inherent in traditional DDS generators when
generating pulse and arbitrary waveforms, and the special square
generator is capable of generating square waveforms up to 60 MHz
in frequency with low jitter. With these advantages, the SDG1000X
can provide users with a variety of high fidelity / low jitter signals
while meeting the growing requirements of a wide range of
complex and varied applications.
- Dual-channel, with bandwidth up to 60 MHz, and amplitude up to 20 Vpp
- 150 MSa/s sampling rate, 14-bit vertical resolution, and 16 kpts waveform length
- Innovative EasyPulse technology, capable of generating lower- jitter Pulse waveforms, brings a wide range and extremely high precision in pulse width and rise/fall times adjustment
- Innovative TrueArb technology, based on a point-by-point architecture, supports any 2 pts ~ 16 kpts Arb waveform with a sampling rate in range of 1 μSa/s ~ 30 MSa/s
- Special circuit for Square wave function, can generate Square waves up to 60 MHz with jitter less than 300 ps+0.05 ppm of period
- Plenty of analog and digital modulation types: AM, DSB-AM, FM, PM, FSK, ASK, PSK and PWM
- Sweep and Burst functions
- Harmonics Generator function
- Waveform Combining function
- High precision Frequency Counter
- Standard interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11)
- 4.3” TFT-LCD display
- Bandwidth : 60 MHz
- Sampling rate : 150 MSa/s
- Vertical resolution : 14-bit
- Waveform Length : 16 kpts
- Num. of channels : 2
- Max. amplitude : ±10 V
- Display : 4.3” display, 480 x 272 x RGB
- Interface : Standard: USB Host, USB Device, LAN
