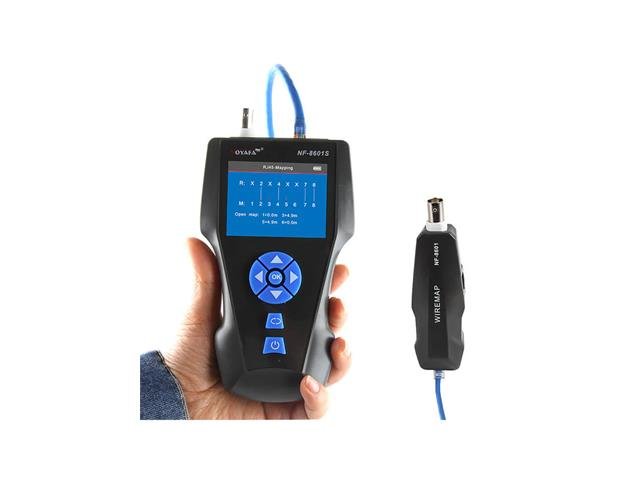

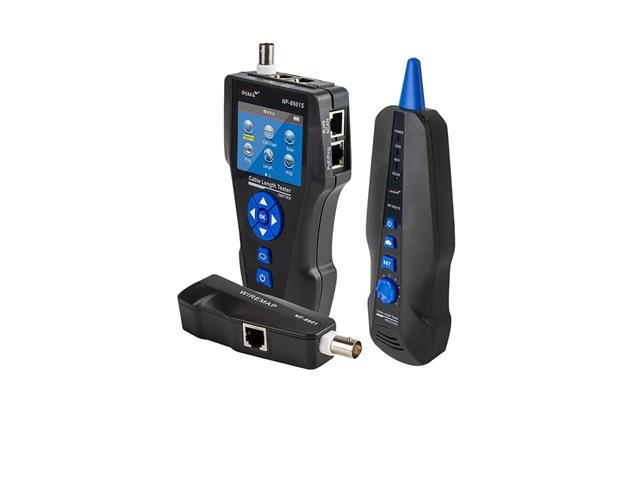

NF-8601S TDR CABLE TESTER + POE
NF-8601S TDR Cable Tracer Tester with PoE / Ping for RJ45, RJ11, BNC, Metal Cables

SKU: NF-8601S TDR CABLE TESTER + POE

BRAND: Noyafa


Sold Out

Or split into 4x interest-free
payments of R775 Learn more

Collections: Test & Measurement

Type: LAN/Telecom/Cable Testing

Category: Cable Tester

TDR Cable Tracer Tester

  • CAT5/6/7 tester: Continuity testing for Coaxial cables, RJ45 network cables, and RJ11 telephone cables. Display wiring fault names directly like Open Circuit, Short Circuit, etc.

  • TDR test: With TDR technology, 500m max (1640ft) length measurement for RJ11, RJ45, Coaxial, and power cables (only 2% error!). When faults exist, the NF-8601S TDR meter displays the distance to the fault.

  • Ethernet cable tester: Identify the power over ethernet cables and detect the exact voltage. It tells the pins delivering DC powers and data.

  • Network toner: Toner probe with complete AC interference rejection to trace ethernet cables. Three modes are available for fast and accurate cable tracing: high frequency / PoE switch / low frequency.

  • Port blinking: Easy and quick locating ethernet ports on the server/switch/hub/router port by the generated flashing light. It is convenient for identifying a cable connected to the switch.

  • Ping test: Network performance check and quality measurements. Examine the data packet and the minimum & maximum time to send and receive data.

  • Non-Contact Voltage Tester: Toner probe with NCV detector (90-1000V). One tap to tell if electricity runs through an object without touching it.

  • Extra accessories: 3.7V 1800mAh rechargeable lithium battery, 1GB TF card for data storage and export, adapters, and clamps to improve compatibility.

  • Friendly Offer & Considerate UI: Compared to expensive Fluke and Klein TDR tools, NOYAFA offers a budget-friendly alternative. Measure and test ethernet with no steep learning curve and zero practice.
  • Tracing Cables: RJ45 (CAT7 included), RJ11, BNC, Power Cable
  • Measure Cable Length: RJ45(CAT7 included), RJ11, BNC, Power Cable
  • Check Cable Error: RJ45(CAT7 included), RJ11, BNC, Power Cable
  • Max. Cable Length: 500m (1640ft)
  • Power Supply: Li-battery
  • Display Screen: Color
  • Length Measure Theory: TDR
  • Anti-current INterference: Yes
  • Data exported to PC: Yes
  • Port Flash: Yes
  • Scan on PoE Switch: Yes
  • High / Low Freq. Scan Mode; Yes
  • PoE Detecting: Yes
  • Ping Function: Yes
  • AC Voltage Detecting: Yes
  • Length Measurement Range: 5m-500m (18ft-1640ft)
  • Calibration Precision: 2%(+/-0.5m, or +/-1.5feet)
  • Measurement Precision: 3%(+/-0.5m, or +/-1.5feet)
Device Tracer Tester
Type TDR Cable
