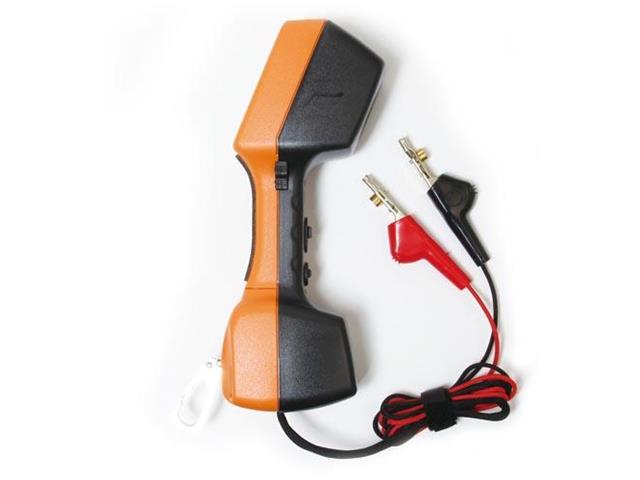

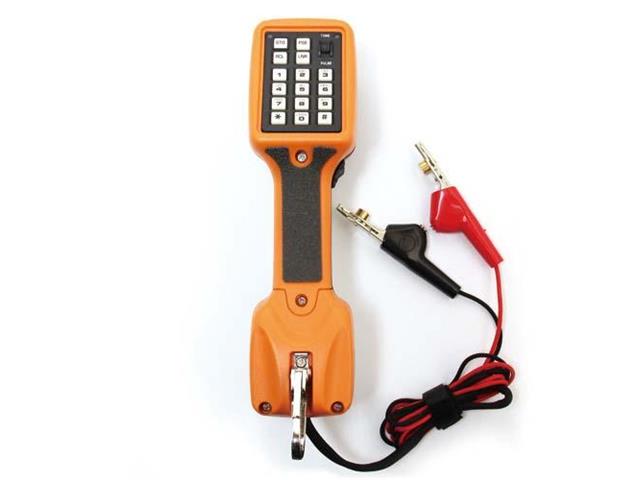

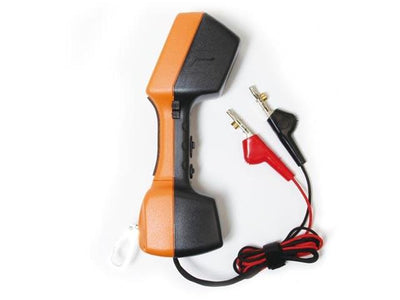

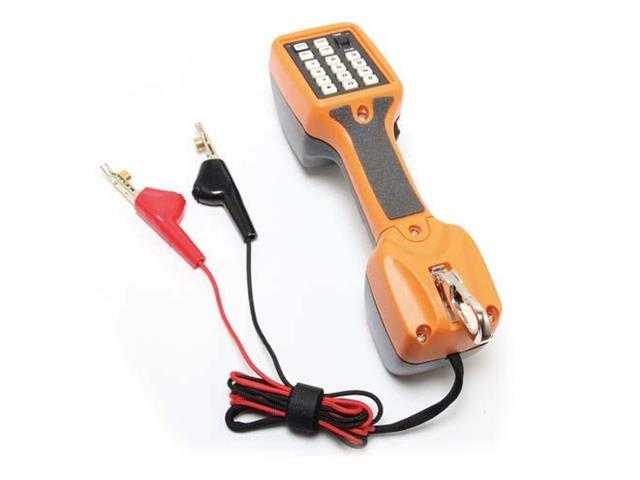

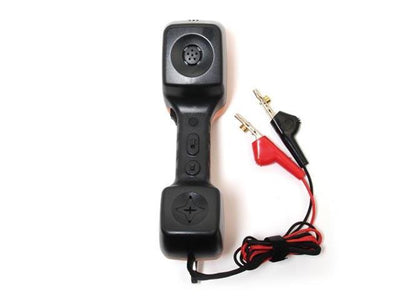

PRK MT-8001
Butt Set

Name: PRK MT-8001 - Communica [Part No: PRK MT-8001]
Brand: Proskit
SKU: PRK MT-8001
Price: 2700 ZAR
Availability: InStock

SKU: PRK MT-8001

BRAND: Proskit

In Stock
R 3,105.00_{(inc VAT)}
R 2,700.00_{(ex VAT)}

Or split into 4x interest-free
payments of R675 Learn more

Collections: Test & Measurement

Type: LAN/Telecom/Cable Testing

Category: Telephone Test Set

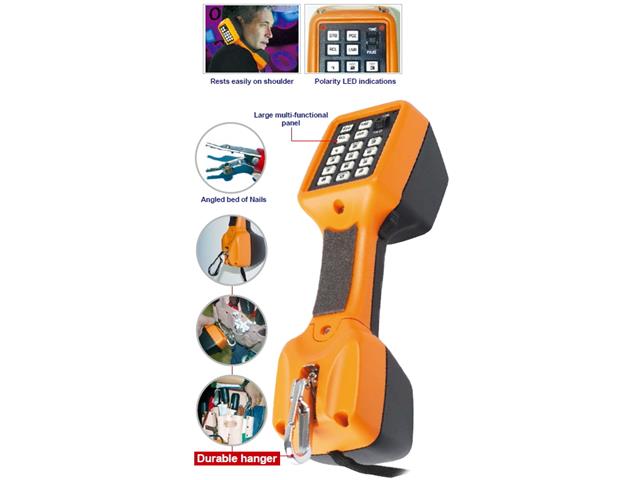

Features

Built-in amplified speaker provides three audio levels for hands free listening.
Functional tone and pulse mode applied to most telephone system.
Store up to twelve, 16-digit telephone numbers in speed dial.
Pre-dialing and last number redial operation save up to 32-digit telephone number
Advanced PBX pause function easily inserted between digits of a stored number
High-impedance monitor mode design provides minor noise output while operating.
Equipped with the mute switch to turn off the speakerphone microphone for privacy.
Continuous polarity LED indications, easy to verify and detect the current connection status.
Power saving function automatically shut down after 5 minutes of inactivity, providing longer operating time.
Audible electronic ringer in 3 level volume controls.
Ergonomic and lightweight design, enjoy unparalleled mobility and reliability.
Used as a regular telephone while positioning the “Talk/Monitor” switch in talk mode.
Product does not contain batteries.

Overview

Recognized as the new industry standard, the MT-8001 butt set provides superior quality at an affordable price. With its high impedance monitor for data safe operation, technicians can clip onto a line in Monitor mode without disrupting existing traffic. Prokit's unsurpassed protection standards and durability assure the butt set will keep working even in the toughest environments. New weatherproofing provides enhanced resistance to severe weather conditions.

Specifications

Electrical

Loop limit : 2 kΩ maximum at 48 VDC(nominal 20 mA minimum loop current)

DC resistance

Talk mode : 300Ω typical
Monitor impedance : 39kΩ nominal at 1 kHz

Rotary dial output

Pulsing rate : 10pps+0.8pps
Percent break : 61%±2%
Interdigit interval : 1000 ms typical
Leakage during break : >50 kΩ

DTMF output

Tone frequency error : ±1.2% maximum
Tone level : -8±2dBm combined(typical)
High versus low tone difference : 4 dB maximum

Memory dialing

Memory capacity : 12 memories plus last number redialing
Digit capacity : 16 digits per memory
PBX pause duration : 4 seconds
Monitor amplifier power source : 9V transistor; provides 25 hours continuous use, typical
Speaker levels : Low, medium, high
Automatic power shut off : After 5 min. of no audio signal
Speaker phone levels : Low, medium high
Power source : Shared line and battery power

Physical

Length : 10-1/4 inches(26.0 cm)
Width : 2-3/4 inches(7.0 cm)
Height : 3-1/2 inches(8.90 cm)
Weight : 560 g typical

Environmental

Temperature : Operating:0 to 50&degC : Storage:-40 to 66&degC
Altitude relative humidity : To 10,000 feet 5 to 95%

Downloads

Datasheet - PRK MT-8001

Additional Information

Device

Butt Set
