OPX IT-UTP5EGY5-PVC
CAT5e UTP P/Cord 5mtr- Grey

SKU: OPX IT-UTP5EGY5-PVC

BRAND: Communica

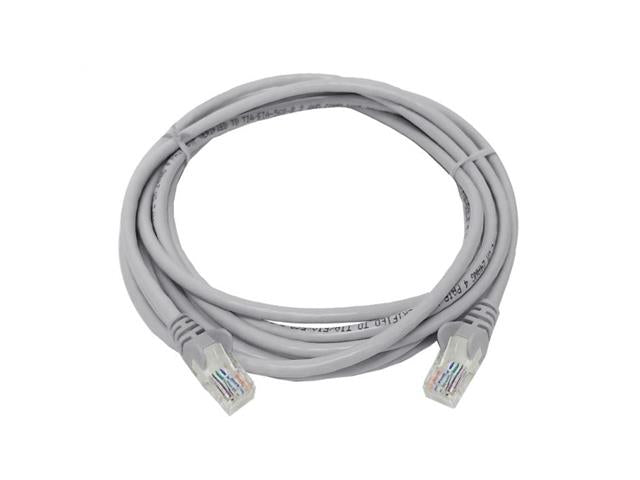

Cat5e UTP Patch Cord

Category 5e Unshielded twisted pair (UTP) patchcords conform to class D standards. our patchcords are made to the highest standards, using only quality stranded cable, giving you the best in flexibility, plus, top grade 50μ gold plated RJ45 connector plugs for high quality connections. this combination makes for outstanding performance and reduced degradation. all patchcords are produced with a injection moulded boot with an easy depression latch cover. available across 8 colours, 6 standard lengths and in pVc or lsZH jacket varieties. For best performance we recommend these as part of a full optronicsplUs category 5e system.

  • Quality 24 AWG stranded (flexible) cable
  • High grade 50μ gold plated rJ45 connector
  • Injection moulded boot for improved strain relief
  • Soft latch-cover design for easy depression applications
  • Supports category 5e (class D) networks running up to 100 mHz applications
Conformance
  • Category 5e
  • ISO/IEC 11801 : 2002
  • ANSI/EIA/TIA 568B.2 : 2002
  • RoHs
  • REACH
  • UL approved

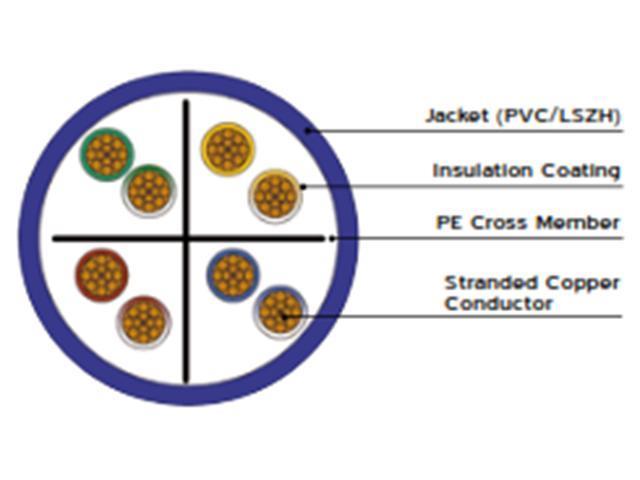

Conductors
  • AWG : 24
  • Size mm : 7/0.20 +/- 0.008
  • Material : Bare copper
Insulators
  • Diameter mm : 0.98+/-0.05
  • Material ; Polyolefin
Jacket
  • External O.D. : 6.0 +/- 0.20
  • Thickness mm : 0.5
  • Material : pVc or lsZH
Device Cable
Type Cat5e | UTP | Patch Cord
