SKU: 77-3434-0000-50005-0200
BRAND: Binder
In Stock
R 285.99 (inc VAT)
R 248.69 (ex VAT)
Collections: Wire & Cable
Type: Actuator/Sensor Cable
| Part no. |
77 3434 0000 50005-0200
Alternative part no.: 79 3444 32 05
|

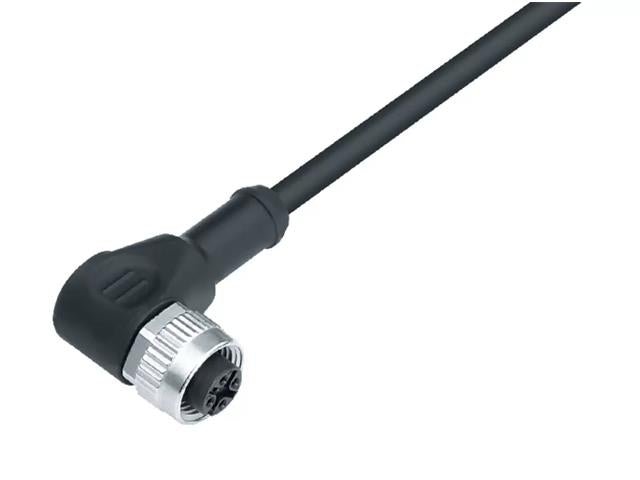

| Connector design | Female angled connector |
| Type standard | DIN EN 61076-2-101 |
| Cable length | 2 m (Standard 2 m and 5 m. Other lengths are available on request.) |
| Version | Connector socket angled |
| Connector locking system | screw |
| Termination | moulded on the cable |
| Degree of protection | IP69K |
| Cross-sectional area | 0.34 mm² / AWG 22 |
| Temperature range from/to | -25 °C / 90 °C |
| Mechanical operation | > 100 Mating cycles |
| Weight (g) | 83.00 |
| Structure of the cable | |
| Cable diameter | 5.0 mm |
| Cross section | 5 x 0.34 mm² |
| Sheath material | PUR |
| Single-lead insulation | PP9Y halogen-free |
| Single-lead structure | 42 x 0.10 mm |
| Cable color | black |
| Electrical properties | |
| Conductor resistance | 60 Ω/Km (20°C) |
| Mechanical properties | |
| Bending radius, fixed cable | ≥ 5 x Ø |
| Bending radius, moving cable | ≥ 10 x Ø |
| Bending cycles | > 5 million |
| Permitted acceleration | 5 m/s² |
| Travel distance, horizontal | 5 m/s² -> 5 m |
| Travel distance, vertical | 5 m/s² -> 2 m |
| Travel speed | ≤ 200 m/min (5 m horizontal distance) |
| Thermal properties | |
| Temperature range cable in move from/to | -25 °C / 90 °C |
| Temperature range cable fixed from/to | -50 °C / 90 °C |
| Other features | |
| Halogen free | yes |
| Device | Cordset |
| Highlights | 5 Pole |
| Cable | 2M PUR Cable |
