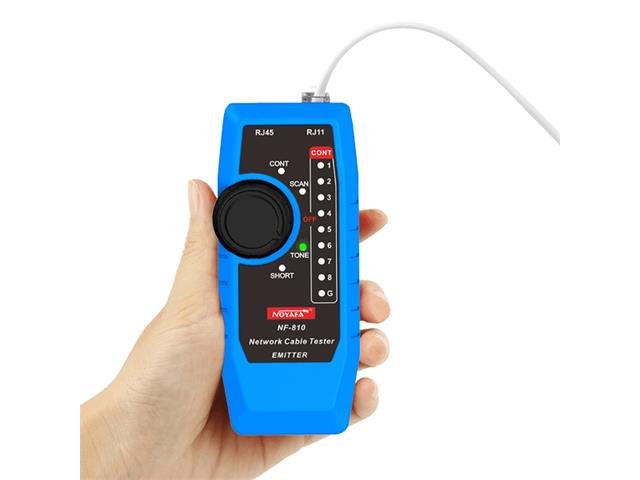

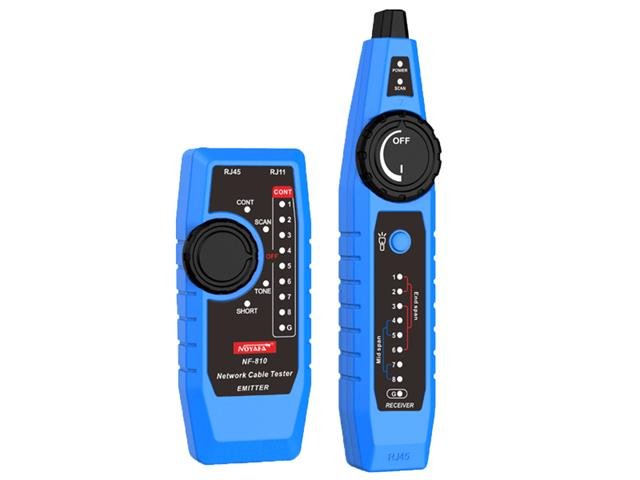

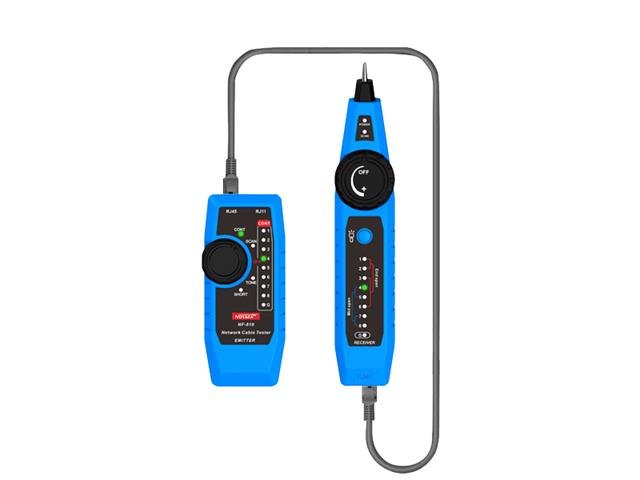

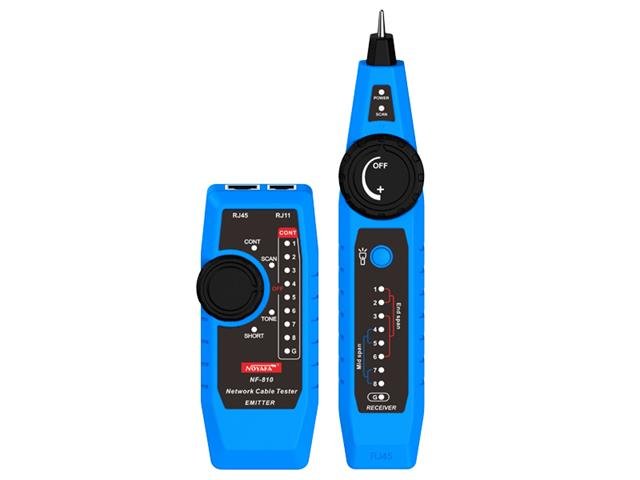

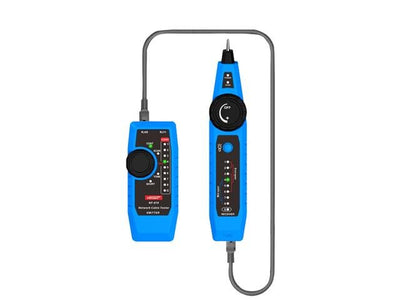

NF-810 NETWORK CABLE TESTER

Name: NF-810 NETWORK CABLE TESTER - Communica [Part No: NF-810 NETWORK CABLE TESTER]
Brand: Noyafa
SKU: NF-810 NETWORK CABLE TESTER
Price: 460 ZAR
Availability: OutOfStock

SKU: NF-810 NETWORK CABLE TESTER

BRAND: Noyafa

Sold Out
R 529.00_{(inc VAT)}
R 460.00_{(ex VAT)}

Collections: Test & Measurement

Type: LAN/Telecom/Cable Testing

Category: Cable Tester

RJ11 Tracing / RJ45 Tracing / Electronic Wire Tracing / PoE Tracing / Wiremap/ PoE Testing / Tel Testing / Lighting / Earphone.

Network Cable Tester

Features

Multi Function - RJ11 Tracing / RJ45 Tracing / Electronic wire Tracing / PoE Tracing / Wiremap/ Against 60V / PoE Testing / TEL Testing / Lighting / Earphone.
Multi Function Testing Mode - It supports to open, short, cross of lan cable, included STP cable.
PoE Switch Testing - It supports the power supply by switch. D1D2 lighting, it means the PIN I &2 supply power.
Wire Tracing - For RJ11/RJ15/Electronic cables.
Against DC60V - Say no for burning.
Telephone Line Status Detection - Polarity & Status Test (Idle, Rings, Conversation).
LED Lighting - It is easier to work in dark environment.
Earphone Function - It helps you to work well in a noise environment.
Certification - Passes RoHS, FCC, and CE compliance testing, and Noyafa is certified to the ISO 9001 standard.
100% Affordable - Manufactured in China and a lot cheaper than competitor products with similar quality.

Specifications

Technical parameter description
Product model		NF-810
Power specification		9V laminated battery
Applicable network cable		CAT5 CAT6 / Telephone cable
Interface withstand voltage		60V
Transmitter	Wiremap function	Wiremap interface	RJ45
		Wiremap status light	√
		Cross circuit,Result	9 line sequence LED green lights
		Wire sequence and fault test	√
		Wire shielded / unshielded	√
		Short circuit prompt	√
		Switch to line	Switch to line RJ45 main interface + directly connected to the switch
		short circuit prompt	√
		Applicable cable	Network cable, Telephone line
	Scanning function	scanning interface	RJ45,RJ11
		Signal transmission format	Dual tone pulse
		Signal transmission distance	≤1km
		Test interface	RJ11
		Short circuit / channel test	√
		Short circuit status indicator	√
		Telephone line polarity state test	√
		Maximum working current	<70mA
		Size	2014527 ( mm)
Receiver	Scanning Receiving Function		√
	Sensitivity adjustment		√
	Signal strength reminder		√
	Headphone function		√
	Tracking working current		≤40mA
	POE switch test		√
	Wiremap function		√
	LED lighting		√
	Size		1252845.3( mm)

Downloads

User Manual - NF-810 NETWORK CABLE TESTER

Additional Information

Device	Cable Tester
Type	Network
