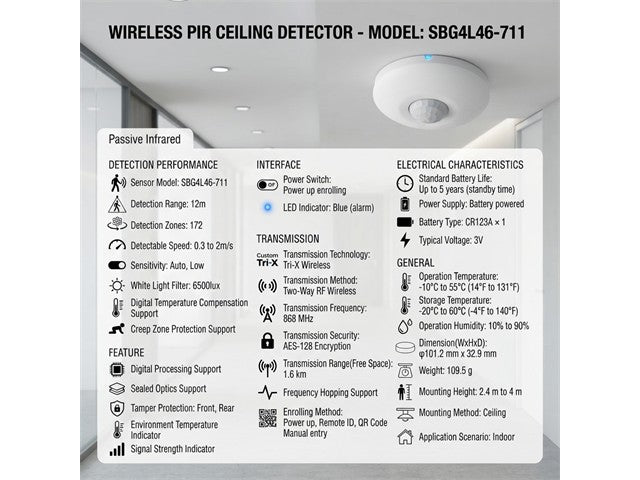

Detection Performance

• Detection Method : Passive Infrared
• Sensor Model : SBG4L46-711
• Detection Range : 12m
• Detection Angle : 360°
• Detection Zones : 172
• Detectable Speed : 0.3 to 2m/s
• Sensitivity : Auto, Low
• White Light Filter : 6500lux
• Digital Temperature Compensation Support
• Creep Zone Protection Support

Feature

• Digital Processing : Support
• Sealed Optics : Support
• Tamper Protection : Front, Rear
• Environment Temperature Indicator : Support
• Signal Strength Indicator : Support

Interface

• Power Switch : Power up enrolling
• LED Indicator : Blue (alarm)

Transmission

• Transmission Technology : Tri-X Wireless
• Transmission Method : Two-Way RF Wireless
• Transmission Frequency : 868 MHz
• Transmission Security : AES-128 Encryption
• Transmission Range(Free Space) : 1.6 km
• Frequency Hopping : Support
• Enrolling Method Power : up,Remote ID,QR Code

Electrical Characteristics

• Standard Battery Life : Up to 5 years (standby time)
• Power Supply Battery powered
• Battery Type CR123A × 1
• Typical Voltage : 3V

General

• Operation Temperature : -10°C to 55°C (14°F to 131°F)
• Storage Temperature : -20°C to 60°C (-4°F to 140°F)
• Operation Humidity : 10% to 90%
• Dimension(WxHxD) : φ101.2 mm x 32.9 mm
• Weight : 109.5 g
• Mounting Height : 2.4 m to 4 m

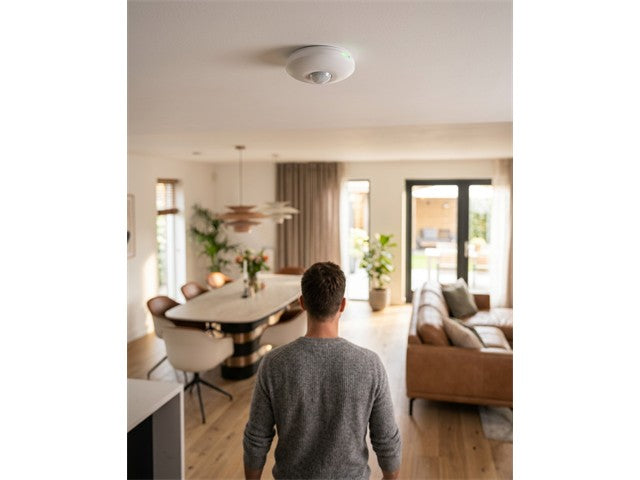

• Mounting Method : Ceiling
• Application Scenario : Indoor
