DHA XVR5116HE-I3

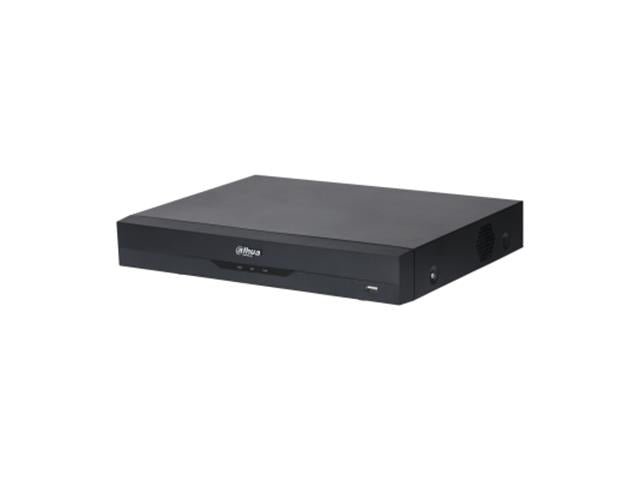

Dahua 16CH Penta-brid 5MP Value/1080P Mini 1U 1HDD WizSense DVR, HDCVI/AHD/TVI/CVBS/IP, Smart H.265+ and H.265, 1 Sata Port UP TO 16TB, HDMI/VGA/RS485, 2XUSB, QuickPick 2.0, 1xRJ45 10/100/1000Mbps, PSU12VDC 2A

SKU: DHA XVR5116HE-I3

BRAND: Dahua


16CH Mini 1U 1HDD WizSense Digital Video Recorder

  • 2-channel QuickPick 2.0 for analog channels which improves the efficiency of target retrieval.
  • 16-channel SMD Plus for analog channels or 24-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
  • 4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
  • 2-channel face recognition for analog channels which supports face comparison.
  • 16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
  • Supports HDCVI, AHD, TVI, CVBS and IP video input.
  • Supports up to 24-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 128 Mbps.
  • Smart H.265+ and H.265 dual-stream video compression.
  • IoT and POS capabilities.

System

  • Main Processor : Industrial-grade processor
  • Operating System : Embedded Linux
  • Operating Interface : Web; Local GUI

QuickPick 2.0

  • QuickPick 2.0 AI by Recorder (Number of Channels) : 2 channels

Perimeter Protection

  • Perimeter Performance AI by Recorder (Number of Channels)
    • Advanced Mode: 2 channels, 10 IVS rules for each channel
    • General Mode: 4 channels, 10 IVS rules for each channel

Face Detection

  • Face Attributes : 6 attributes
  • Face Detection Performance of AI by Recorder (Number of Channels) : 2 channels(up to 12 face images/s each channel)

Face Recognition

  • Face Database Capacity : Up to 10 face databases with 10,000 images.
  • Face Recognition Performance of AI by Recorder (Number of Channels) : 2 channels

SMD Plus

  • SMD Plus by Recorder : 16 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
  • SMD Plus by Camera : 24 channels

AI Video Quality Analytics

  • AI Video Quality Analytics by Recorder : 16 channels: Supports detecting brightness levels, color
    cast, defocus, overexposure, contrast levels, black and white

Scene Changing

  • Scene Changing by Recorder : 1 channel

Irregular Black Block Masking

  • Irregular Black Block Masking by Recorder : 1 channel

Audio and Video

  • Analog Camera Input : 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto- detect
  • Camera Input
    • 1. CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps.
    • 2. TVI: 5 MP(2560 x 1944)@20 fps; 5 MP(2960 x 1665)@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
    • 3. AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
  • IP Camera Input
    • Up to 24 channels of IPC access
    • 8 IP channels by default + 16 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps *After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection,
      SMD, Perimeter Protection and QuickPick 2.0 cannot be used.
  • Encoding Capacity
    • Main stream:
    • 5 MP Mode: 4-ch 5 MP@(1 fps-6 fps); others 5M-N@(1 fps-12 fps) 5M-N Mode: 5M-N@(1 fps –12 fps); 4M-N/1080p@(1 fps–15 fps); 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps)
    • Sub stream: D1/CIF@(1 fps–15 fps)
  • Dual-stream : Yes
  • Video Bit Rate : 32 kbps–6144 kbps
  • Audio Sampling : 8 kHz, 16 bit
  • Audio Bit Rate : 64 kbps
  • Video Output
    • 1 HDMI, 1 VGA
      • VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
      • HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
    • It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when Face, IVS&SMD or Quick Pick is selected in AI Mode.
  • Multi-screen Display
    • When IP extension mode not enabled: 1/4/8/9/16
    • When IP extension mode enabled: 1/4/8/9/16/25
  • Third-party Camera Access : Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF

Compression Standard

  • Video Compression : AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
  • Audio Compression : G.711a; G.711u; PCM

Network

  • Network Protocol : HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
  • Mobile Phone Access : iOS; Android
  • Interoperability : ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
  • Browser : Chrome; IE; Safari; Edge; Firefox

Recording Playback

  • Record Mode : General; alarm; motion detection; intelligent; POS
  • Recording Playback
    • 1/4/9/16
    • It changes to 1/4/9 split when Face or IVS&SMD is selected in AI Mode.
  • Backup Method : USB device and network
  • Playback Mode : Instant playback; general playback; event playback; tag playback; smart playback

Alarm

  • General Alarm : Motion detection; local alarm; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm
  • Anomaly Alarm : Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
  • Intelligent Alarm : Face detection; face recognition; perimeter protection; SMD Plus
  • Alarm Linkage : Record; snapshot (panoramic); local alarm output; IPC external alarm output; audio; buzzer; log; preset; email

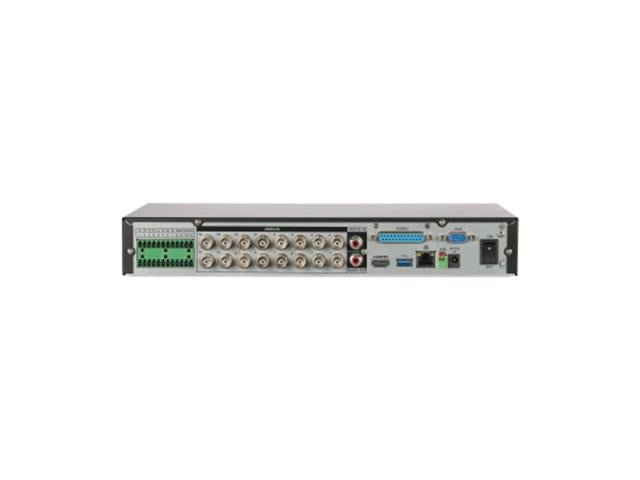

Ports

  • Audio Input
    • 16-channel RCA
    • 16-channel BNC (Coaxial Audio)
  • Audio Output : 1-channel RCA
  • Two-way Talk : Yes (share the same audio input with the first channel)
  • Alarm Input : 16 channels
  • Alarm Output:  3 channels
  • Disk Interface : 1 SATA port, up to 16 TB. This limit varies depending on the environment temperature.
  • RS-485 : 1
  • USB : 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
  • HDMI : 1
  • VGA : 1
  • Network Port : 1 (10/100/1000 Mbps Ethernet port, RJ-45)

General

  • Power Supply : 12 VDC, 2 A
  • Power Consumption : <12 W(without HDD)
  • Net Weight : 1.36 kg (3.00 lb)
  • Gross Weight : 2.16 kg (4.77 lb)
  • Product Dimensions : 325.0 mm × 257.1 mm × 55.0 mm (12.80" × 10.12" × 2.17") (W × D × H)
  • Packaging Dimensions : 372.0 mm × 117.0 mm × 308.0 mm (14.65" × 4.61" × 12.13") (W × D × H)
  • Operating Temperature : –10 °C to +55 °C (+14 °F to +131 °F)
  • Storage Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
  • Operating Humidity : 10%–90% (RH), non-condensing
  • Installation : Desktop
Device Digital Video Recorder
Type 16CH | Mini | 1U | 1HDD | WizSense
