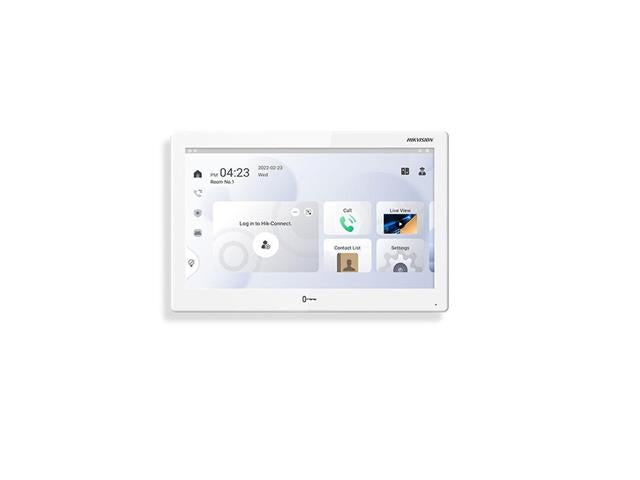

Hikvision Video Intercom Network Indoor Station 10.1 inch Colorful Touch Screen, Resolution:1024×600, ROM 8GB, RAM 2GB, TCP/IP, SIP, RTSP, WIFI:2.4 GHz, IEEE802.11b, 1xRJ45 10/100, Android 10.1, Built-in Loudspeaker, Alarm O/P 1, 12VDC/1A, PoE
Video Intercom Network Indoor Station
Overview
The KH9 series IP indoor station, with 10-inch touch screen and Android system, brings you a fluent video and audio
communication. You can install the third-party application in the device according to your actual need. Hikvision’s
Hik-Connect app is also pre-installed in the device, which helps you to manage Hikvision’s device integratedly, without
system switching.

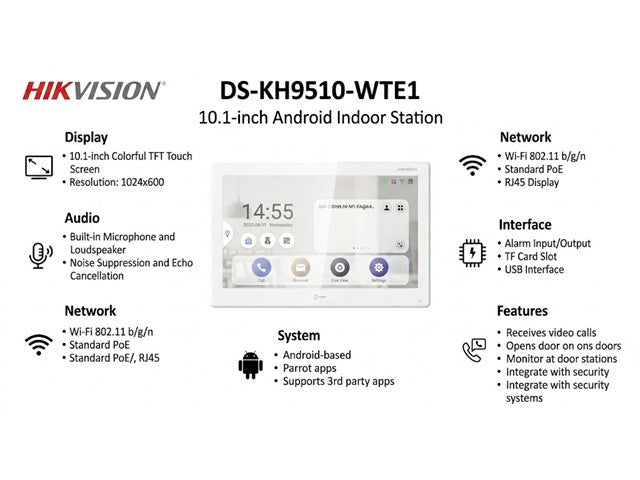

Features
- 10.1-inch colorful touch screen with 1024 × 600 resolution
- Built-in Android System
- Supports Android APP installation
- Support for three-party software integration
- Built-in Hik-Connect APP
- For all-in-one management of Hikvision’s devices on tablet
Specifications
System Parameters
-
Operation System : Android 10.1
-
ROM : 8 GB
-
RAM : 2 GB
-
Processor : Embeded high performance processor
Display Parameters
-
Screen Size : 10.1-inch
-
Operation Method : Capacitive touch screen
-
Type : Colorful IPS
-
Resolution : 1024 × 600
Audio Parameters
-
Audio Input : 1 built-in omnidirectional microphone
-
Audio Compression Standard : G.711U, G.711A
-
Audio Output : 1 built-in loudspeaker
-
Audio Compression Bitrate : 64 Kbps
-
Audio Quality : Noise suppression and echo cancellation
-
Volume Adjustment : Adjustable
Capacity
-
Message Capacity : 200 captured pictures, 200 alarm records
-
Notice Capacity : 200
-
Linked Indoor Extensions Capacity : 16
-
Linked Network Camera Capacity : 16
-
Linked Doorphone Capacity : 17
Network Parameters
-
Network Protocol : TCP/IP, SIP, RTSP
-
Wi-Fi : 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
Device Interfaces
-
Alarm Input : 8
-
Network Interface : 1 RJ-45 10/100 Mbps self-adaptive
-
RS-485 : 1 RS-485 (Half duplex)
-
TF Card : Support TF card, up to 128 G
-
Alarm Output : 1
-
Lock Control : 1 relay, Max. 30 VDC 0.3 A, and 1 high/low level relay (3.3 V/0V)
General
-
InstallationSurface mounting
-
Weight
- Net weight: 875 g
- Gross weight: 1060 g
-
Working Temperature : -10 °C to 50 °C (14 °F to 122 °F)
-
Working Humidity : 10% to 90% (no-condensing)
-
Dimension (W × H × D) : 254 mm × 166 mm × 26.65 mm (10.0" × 6.54" × 1.05")
-
Power Supply : 12 VDC, 1 A, IEEE802.3af, standard PoE
-
Application Environment : Indoor
-
Power Consumption : ≤ 12 W
-
Language : English, Russian, Estonian, Bulgaria, Hungarian, Greek, German, Italian, Czech, Slovak, France, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Traditional Chinese, Vietnamese, Hebrew, Latvian, Lithuanian, Brazilian Portuguese, Ukrainian, Mongolian
Downloads
Additional Information
Device |
Video Intercom |
Type |
Network | Indoor Station |
