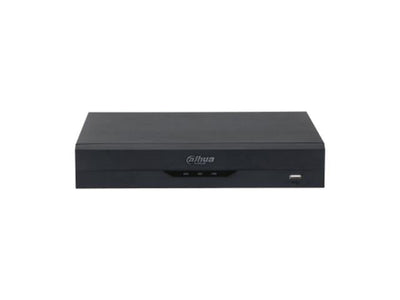

DHA NVR2108HS-8P-I2

SKU: DHA NVR2108HS-8P-I2

BRAND: Dahau


Dahua WizSense 8 Channel Compact 1U 1HDD 8PoE Network Video Recorder, 1xSATA Port MAX 10TB, 2xUSB, HDMI, VGA, 1xRJ45 Port 10/100/1000Mbs, 8 × PoE Ports, 10/100 Mbps, Smart H.265+/H.265, Resolution: 12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1

1U 8PoE 1HDD WizSense Network Video Recorder

Overview

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

Feature(s)

  • Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format
  • Max. decoding capability: 6 × 1080p@30 fps. Supports adaptive decoding
  • 1-channel face detection and recognition (AI by NVR); 1-channel perimeter protection (AI by NVR); up to 10 face databases and 5,000 face images; 4-channel SMD Plus (AI by NVR);
  • AI by camera: Face detection and recognition, perimeter protection, and SMD Plus
  • Connected to the third-party network cameras
  • Security baseline 2.1

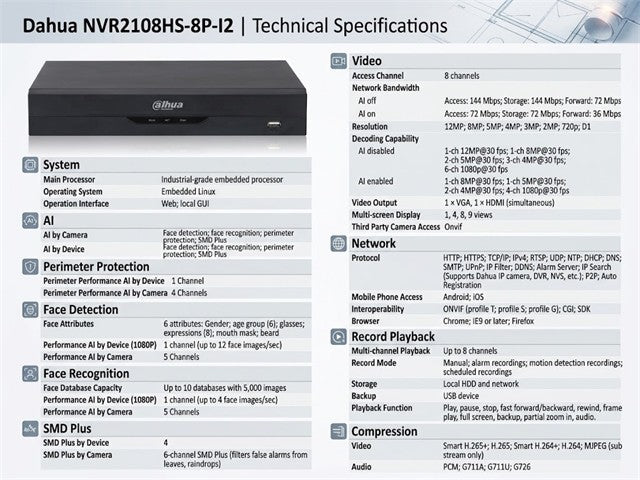

Specifications

System

Main Processor

Industrial-grade embedded processor

Operating System

Embedded Linux

Operation Interface

Web; local GUI

AI

AI by Camera

Face detection; face recognition; perimeter protection; SMD Plus

AI by Device

Face detection; face recognition; perimeter protection; SMD Plus

Perimeter Protection

Perimeter Performance AI by Device(Number of Channels)

1

Perimeter Performance of AI by Camera (Number of Channels)

4

Face Detection

Face Attributes

6 attibutes: Gender; age group (6); glasses; expressions (8); mouth mask; beard

Face Detection Performance of AI by Device (1080P) (Number of Channels)

1 (up to 12 face images/second)

Face Detection Performance of AI by Camera (Number of Channels)

5

Face Recognition

Face Database Capacity

Up to 10 face databases with 5,000 images

Face Recognition Performance of AI by Device (1080P) (Number of Channels)

1 (up to 4 face images/second)

Face Recognition Performance of AI by Camera (Number of Channels)

5

SMD Plus

SMD Plus by Device

4

SMD Plus by Camera

6-channel SMD Plus (AI by camera): Detects tripwire and intrustion of human or vehicle; filters false alarms caused by leaves, raindrops and change of brightness away

Video

Access Channel

8 channels

Network Bandwidth

AI off: Access: 144 Mbps; Storage: 144 Mbps; Forward: 72 Mbps
AI on: Access: 72 Mbps; Storage: 72 Mbps; Forward: 36 Mbps

Resolution

12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1

Decoding Capability

AI disabled: 1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps
AI enabled: 1-channel 8MP@30 fps; 1-channel 5MP@30 fps; 2-channel 4MP@30 fps; 4-channel 1080p@30 fps

Video Output

1 × VGA, 1 × HDMI (simultaneous)

Multi-screen Display

1, 4, 8, 9 views

Third Party Camera Access

Onvif

Compression

Video

Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Audio

PCM; G711A; G711U; G726

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); P2P;Auto Registration

Mobile Phone Access

Android; iOS

Interoperability

ONVIF (profile T; profile S; profile G); CGI; SDK

Browser

Chrome; IE9 or later; Firefox

Record Playback

Multi-channel Playback

Up to 8 channels

Record Mode

Manual record; alarm recordings; motion detection recordings; scheduled recordings

Storage

Local HDD and network

Backup

USB device

Playback Function

1. Play; pause; stop; fast forward; fast backward; rewind; play by frame
2. Full screen; backup (vide clip/file); partially zom in; audio on/off

Alarm

General Alarm

Motion detection; privacy masking; video loss; PIR alarm; IPC alarm

Anomaly Alarm

Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exception

Intelligent Alarm

Face detection; face recognition; perimeter protection (intrusion and tripwire); IVS; SMD Plus

Alarm Linkage

Recording; snapshot; buzzer; log; preset; email; tour

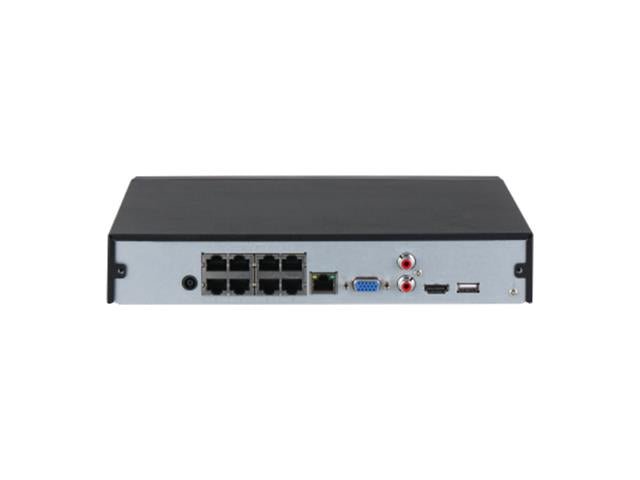

External Port

HDD

1 SATA port, up to 10 TB. The maximum HDD capacity varies with environment temperature

USB

1 × front USB2.0; 1 × back USB2.0

HDMI

1 (max. resolution: 4K)

VGA

1

Network

1 × RJ-45, 10/100/1000 Mbps

PoE

8 × PoE ports, 10/100 Mbps

RCA Input

1

RCA Output

1

General Parameter

Power Supply

53VDC, 1.8A

Power Consumption

Total output of NVR is ≤ 10W (without HDD)Total output power of PoE is 72W, the maximum output power of asingle port is 25.5W

Net Weight

0.92 kg (2.03 lb)

Gross weight

2.07 kg (4.56 lb)

Product Dimensions

260 mm × 232.7 mm × 47.6 mm (10.24" × 9.16" × 1.87") (W × L × H)

Package Dimensions

117 mm × 373 mm × 307 mm (4.61" × 14.69" × 12.09") (W × L × H)

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Storage Temperature

0 °C to 40 °C (32 °F to 104 °F)

Operating Humidity

10%–93%

Storage Humidity

30%–85%

Operating Altitude

3,000 m (9,842.52 ft)

Installation

Desktop



Downloads

Additional Information

Device Network Video Recorder
Type 1U | 8PoE | 1HDD | WizSense
