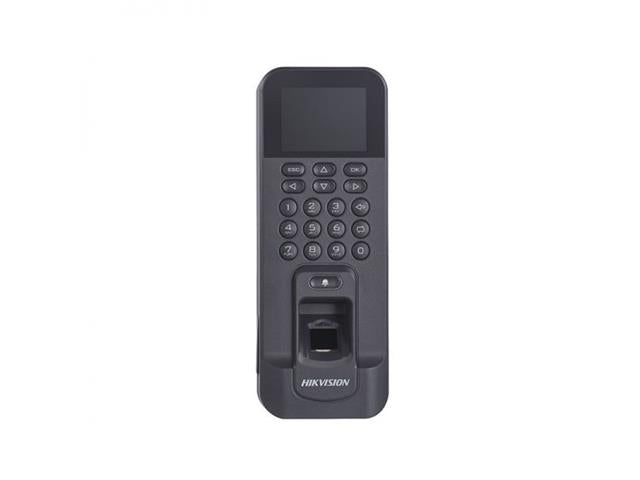

HKV DS-K1T804AMF

HKV DS-K1T804AMF
Hikvision Fingerprint Access Control Terminal, TCP/TP & Wi-Fi Communication, 2.4" LCD Display 320x240, Finger Capacity: 3000, Card Capacity:3000 & 100 000 Event Storage, TCP/IP 10/1000Mbs, RS-485, MiFare 1 Card, Wiegand, USB, PSU 12V/1A,

SKU: HKV DS-K1T804AMF

BRAND: Hikvision


In Stock
R 1,569.75 (inc VAT)
R 1,365.00 (ex VAT)

Collections: Security, Access Control & Surveillance

Type: Access Automation

Category: Fingerprint Terminals

Fingerprint Access Control Terminal

  • Access control fingerprint terminal
  • 3,000 fingerprints, 3,000 cards and 100,000 events storage
  • Built-in card reader for Mifare1 card
  • Communication via TCP/TP and Wi-Fi
  • RS-485, wiegand interface
  • Alarm input and output interface
  • ISUP5.0,ISAPI

Display

  • Screen size : 2.4-inch
  • Resolution : 320 × 240
  • Type : LCD-TFT display screen

Audio

  • Audio output : 1 loudspeaker, 1 buzzer

Network

  • Wired network : TCP/IP, 10/100Mbps, self-adaptive
  • Wi-Fi : Support

Interface

  • Network interface : 1
  • RS-485 : 1
  • Wiegand : 1
  • Lock control : 1
  • Exit button : 1
  • Door contact input : 1
  • Alarm input : 1
  • Alarm output 1
  • TAMPER : 1
  • USB : 1

Capacity

  • Card capacity : 3000
  • Fingerprint capacity : 3000
  • Event capacity : 100,000

Authentication

  • Card type : Mifare 1 card
  • Card reading distance : 0 to 4.5 cm
  • Card reading duration : < 1 s
  • Fingerprint module : Optical fingerprint module
  • Fingerprint comparing mode : 1:1 and 1:N
  • Fingerprint recognition duration : < 1 s

General

  • Indicator : Power/status (red/green)
  • Power supply : 12 VDC/1 A
  • Working temperature : -10 °C to +55 °C (14 °F to +131 °F)
  • Working humidity : 10% to 90% (no condensing)
  • Color : Black (included), gold (optional), silver (optional), white (optional)
  • Dimensions : 205 mm × 76.5 mm × 37 mm (8.07" × 3.01" × 1.46")
  • Installation : Surface mounting
Device Terminal
Type Fingerprint | Access Control
