Hikvision Face Recognition Terminal 4.3inch Touch Screen 2MP, 10M/100M Self-Adaptive, Card Capacity:3000, Face Capacity:1500, Fingerprint Capacity:3000, Card Type:M1 13.56Mhz, Face Recognition Distance:0.3~1.5m, PSU:12VDC/1A or PoE 37~57VDC 0.6A
Face Recognition Terminal
Overview
Face recognition terminal adopts deep learning algorithm, which helps to recognize the face faster with higher accuracy. It
also supports multiple authentication modes: face/card/fingerprint authentication, etc. It can be applied in multiple
scenarios, such as buildings, enterprises, financial industries, and other important areas.
Features
- Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
- Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in M1 card reading module
- Two-way audio with client software, indoor station, and main station; Supports TCP/IP, Wi-Fi
- Supports ISAPI, ISUP5.0
- Configuration via the web client
- Face Recognition Distance: 0.3 m to 1.5 m; Duration < 0.2 s/User; Accuracy rate ≥ 99%
- Supports face with mask recognition
- Powers supply by standard PoE and at the same time powers supply for door lock (12 VDC/1 A)
- Supports platform-applied personal PIN and device-set personal PIN

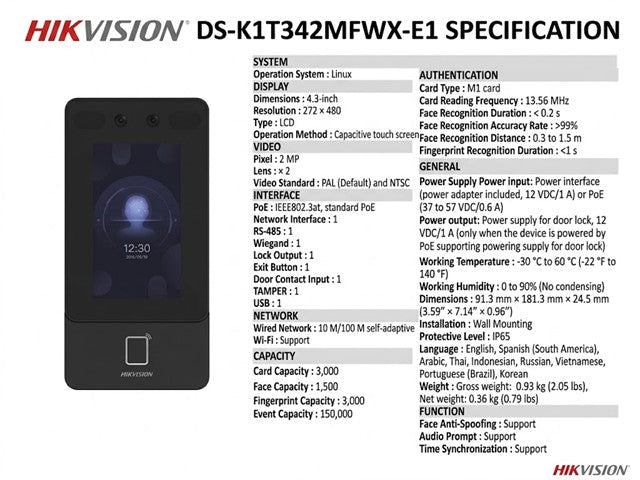

Specifications
System
Display
-
Dimensions : 4.3-inch
-
Resolution : 272 × 480
-
Type : LCD
-
Operation Method : Capacitive touch screen
Video
-
Pixel : 2 MP
-
Lens : × 2
-
Video Standard : PAL (Default) and NTSC
Network
-
Wired Network : 10 M/100 M self-adaptive
-
Wi-Fi : Support
Interface
-
PoE : IEEE802.3at, standard PoE
-
Network Interface : 1
-
RS-485 : 1
-
Wiegand : 1
-
Lock Output : 1
-
Exit Button : 1
-
Door Contact Input : 1
-
TAMPER : 1
-
USB : 1
Capacity
-
Card Capacity : 3,000
-
Face Capacity : 1,500
-
Fingerprint Capacity : 3,000
-
Event Capacity : 150,000
Authentication
-
Card Type : M1 card
-
Card Reading Frequency : 13.56 MHz
-
Face Recognition Duration : ＜ 0.2 s
-
Face Recognition Accuracy Rate : ＞99%
-
Face Recognition Distance : 0.3 to 1.5 m
-
Fingerprint Recognition Duration : ＜1 s
General
-
Power Supply
- Power input: Power interface (power adapter included, 12 VDC/1 A) or PoE (37 to 57 VDC/0.6 A)
- Power output: Power supply for door lock, 12 VDC/1 A (only when the device is powered by PoE supporting powering supply for door lock)
-
Working Temperature : -30 °C to 60 °C (-22 °F to 140 °F)
-
Working Humidity : 0 to 90% (No condensing)
-
Dimensions : 91.3 mm × 181.3 mm × 24.5 mm (3.59" × 7.14" × 0.96")
-
Installation : Wall Mounting
-
Protective Level : IP65
-
Language : English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean
-
Weight :
- Gross weight: 0.93 kg (2.05 lbs)
- Net weight: 0.36 kg (0.79 lbs)
Function
-
Face Anti-Spoofing : Support
-
Audio Prompt : Support
-
Time Synchronization : Support
Downloads
Additional Information
| Device |
Terminal |
| Type |
Face Recognition |
