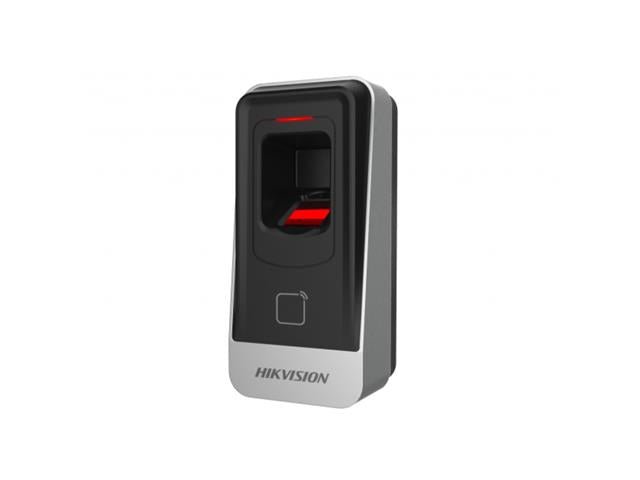

HKV DS-K1201AMF
Hikvision Fingerprint & Mifare Card Reader, Tamper Proof Function, Built-in Buzzer for Status Indication, IP65

Name: HKV DS-K1201AMF - Communica [Part No: HKV DS-K1201AMF]
Brand: Hikvision
SKU: HKV DS-K1201AMF
Price: 1065 ZAR
Availability: InStock

SKU: HKV DS-K1201AMF

BRAND: Hikvision

In Stock
R 1,224.75_{(inc VAT)}
R 1,065.00_{(ex VAT)}

Collections: Security, Access Control & Surveillance

Type: Access Automation

Category: Fingerprint Terminals

Fingerprint & Mifare Card Reader

Features

A group of messy code encrypted data for the security of fingerprint storage
Supports RS-485 communication with 19200bps-N-8-1 transmission rate. There are CRC test for the protocol
Supports M1 card reading
Card induction distance is 30 mm to 100 mm
Supports multiple authentication modes (card, fingerprint, and card + fingerprint)
Optical CMOS fingerprint module. The characters of fingerprint can be export to the card reader
Max. 5000 fingerprints storage
Adopts the optical fingerprint module, supporting 1:N mode (fingerprint, card + fingerprint) and 1:1 mode (card + fingerprint)
Fingerprint comparison time: 1:1 ≤ 1 s, 1:1000 ≤ 1 s; FRR ≤ 0.01%, FAR ≤ 0.001%
Communication circuit is designed with optical coupling isolation and noise suppression function
Built-in buzzer for status indication
Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the basic function of the terminal
Tamper-proof function

Specifications

Interface

TAMPER : 1

Authentication

Fingerprint module : Optical fingerprint module
Fingerprint comparing mode : 1:1/1:N
Card type : Mifare 1 card

General

Power supply : 12 VDC ± 10%
Working temperature : -40 °C to 70 °C (-40 °F to 158 °F)
Working humidity : 10% to 90% (No condensing)
Dimensions : 62 mm × 132 mm × 44 mm (2.44" × 5.20" × 1.73")
Installation : Surface mounting
Buzzer : Support

Downloads

Datasheet - HKV DS-K1201AMF

Additional Information

Device	Card Reader
Type	Fingerprint & Mifare
