HKV DS-K1107MK

Name: HKV DS-K1107MK - Communica [Part No: HKV DS-K1107MK]
Brand: Hikvision
SKU: HKV DS-K1107MK
Price: 560 ZAR
Availability: InStock

SKU: HKV DS-K1107MK

BRAND: Hikvision

In Stock
R 644.00_{(inc VAT)}
R 560.00_{(ex VAT)}

Collections: Security, Access Control & Surveillance

Type: Access Automation

Category: Card Readers

Hikvision Mifare Reader & Keypad, RS485 & Wiegand, Tamper Proof Alarm, Built-in Buzzer for Identifying the reading status, 32-bit, Keypad with 12 Keys, 10% to 90% (Non Condensing), 12VDC, 115×44×22mm, IP65

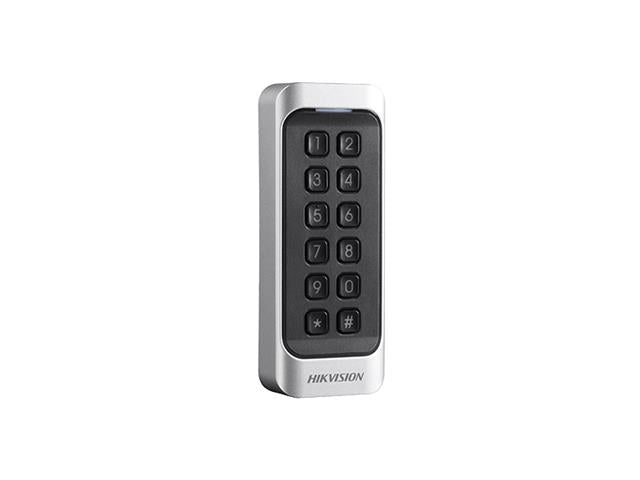

Mifare Reader & Keypad

Features

Mifare1/ EM card reader
Built-in audible beeper
RS-485， Wiegand (W26/W34) protocol, and OSDP protocol
IP65

Specifications

System

Processor : 32-bit

Interface

TAMPER : support
RS-485 : support
Wiegand : support

Authentication

Card reading distance : ≤50mm (≤1.97")

General

Indicator : Power Indicator, Status Indicator
Power supply : 12V DC
Power consumption : ≤2W
Working temperature : -20°C to +65°C (-4°F to 149°F)
Working humidity : 10% to 90% (Non Condensing)
Protective level : IP65
Dimensions : 115mm × 44mm × 22mm (4.53” × 1.73” × 0.87”)
Keypad : No Keypad (DS-K1107E and DS-K1107M)Keypad with 12 Keys (0~9, *, #) (DS-K1107EK and DS-K1107MK)
Buzzer : support

Function

ID settings : via DIP Switch

Downloads

Datasheet - HKV DS-K1107MK

Additional Information

Device	Reader & Keypad
Type	Mifare
