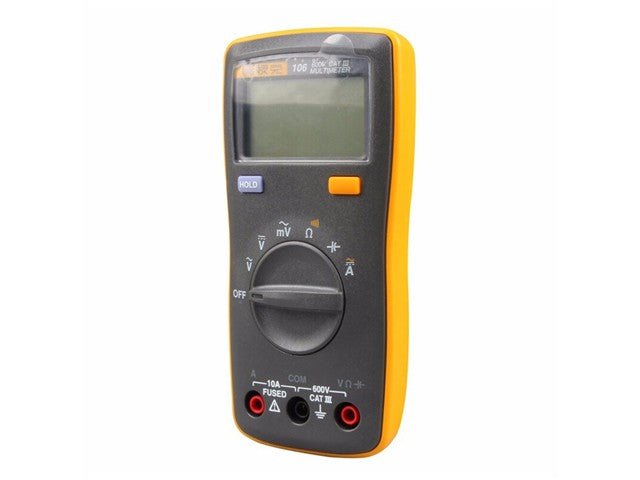

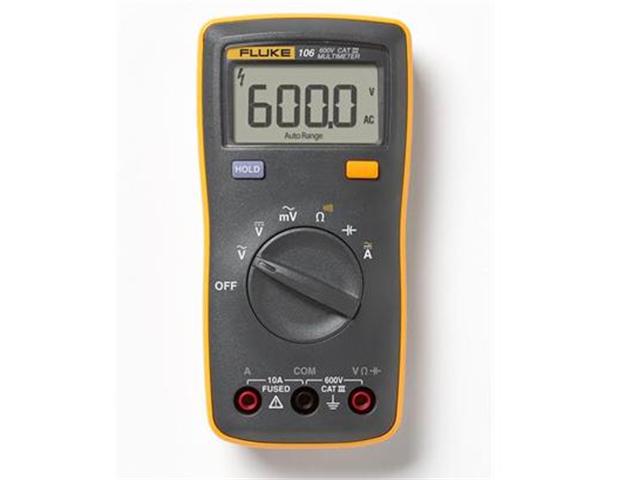

FLUKE 106

The Fluke 106 digital multimeter is made to fit the way you work! It is designed to fit in the palm of your hand and go with you no matter where your job takes you.

• Voltage, resistance, continuity, capacitance
• Input terminal for AC and DC current measurements to 10 A and current
• Backlit display
• Data hold
• Diode test, plus frequency and duty cycle measurements

• Includes:

  • Fluke 106 Palm-sized Digital Multimeter
  • Tl75 Hard Point Test Lead Set
  • 2 AAA Batteries (Installed)
  • User’s Manual

Electrical Specifications

AC Volts (40 Hz to 500Hz)

• 6V (0.001 V) : 1.0% + 3
• 60V (0.01 V) : 1.0% + 3
• 600V (0.1 V) : 1.0% + 3

DC Volts

6V (0.001V) : 0.5% + 3 60V (0.01V) : 0.5% + 3 600V (0.1V) : 0.5% + 3

AC Millivolts

• 600mV (0.1 mV) : 3.0% + 3

Diode Test2

• 2V (0.001 V) : 10%

Resistance (Ohms)

• 400Ω (0.1Ω) : 0.5% + 3
• 4kΩ (0.001 kΩ) : 0.5% + 2
• 40kΩ (0.01 kΩ) : 0.5% + 2
• 400kΩ (0.1 kΩ) : 0.5% + 2
• 4MΩ (0.001 MΩ) : 0.5% + 2
• 40MΩ (0.01MΩ) : 1.5% + 3

Capacitance3

• 50nF (0.01 nF) : 2% + 5
• 500nF (0.1nF) : 2% + 5
• 5μF (0.001μF) : 5% + 5
• 50μF (0.01μF) : 5% + 5
• 500μF (0.1μF) : 5% + 5
• 1000μF (1μF) : 5% + 5

• 4A (0.001A) : 1.5% + 3
• 10A (0.01A) : 1.5% + 3

DC Current

• 4A (0.001A) : 1.5% + 3
• 10A (0.01A) : 1.5% + 3

• Backlight : No

General Specifications

• Maximum voltage between any terminal and earth ground : 600 V
• Display (LCD) : 6000 counts, updates 3/sec
• Battery type : 2 AAA, NEDA 24A, IEC LR03
• Battery life : 200 hours minimum
• Temperature Operating : 0°C to 40°C
• Storage Temperature : -30°C to 60°C
• Relative humidity
• Non-condensing when < 10°C
• ≤ 90 % at 10 °C to 30 °C;
• ≤ 75 % at 30 °C to 40 °C
• Operating Humidity 40 MΩ Range
• ≤ 80 % at 10 °C to 30 °C;
• ≤ 70 % at 30 °C to 40 °C
• Altitude Operating : 2000m
• Temperature coefficient : 0.1 X (specified accuracy)/°C (< 18 °C or > 28 °C)
• Fuse protection for current inputs : 11 A, 1000 V Fast Fuse, Fluke specified part only
• Storage : 12 000m
• Size : 142 mm x 69 mm x 28mm
• Weight : 200 g
• IP rating : IEC 60529: IP40
• Safety : IEC 61010-1: 600 V CAT III, Pollution Degree 2
• Electromagnetic environment : IEC 61326-1 portable
• Electromagnetic compatibility : Applies to use the Korea only. Class A Equipment (Industrial broadcasting and communication equipment)
• Warranty : One year
