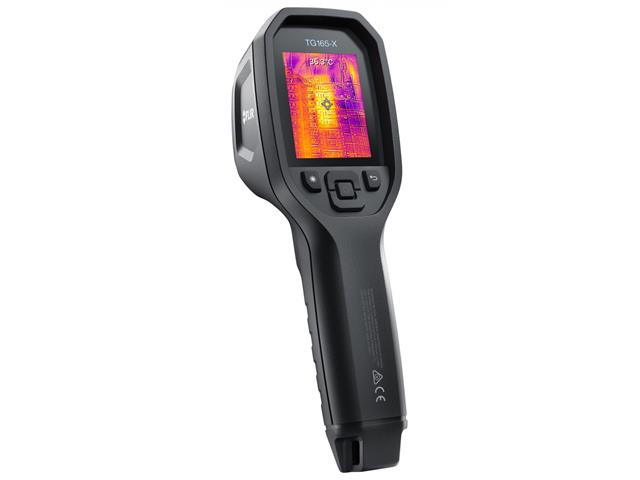

The FLIR TG165-X lets you both see and evaluate the hot and cold spots that can indicate serious
issues. Ideal for commercial electrical, facility maintenance applications, the FLIR TG165-X reduces
diagnostic time while simplifying repair and maintenance reporting. FLIR MSX enhancement improves
image clarity by embossing visual scene details on full thermal images, providing added context to help
you accurately target potential faults and troubleshoot repairs. Record images to monitor maintenance
history and reassure your customer that problems have been resolved.
• See beyond the limitations of single-spot IR thermometers with a 80 × 60 (4,800 pixel) true thermal
imager.
• FLIR patented MSX enhancement adds sharp visual detail to thermal images, making it easier to
diagnose problems.
• Measure a wide range of temperatures, from –25°C to 300°C (–13°F to 572°F).
• Multipoint Laser pointer provides a circle to clearly show the area you are measuring.
• Rugged and reliable with an IP54 enclosure that protects the camera from dirt, dust, and oil.
- IR resolution 80 × 60 pixels
- Thermal sensitivity/NETD < 70 mK
- Field of view (FOV) 51° × 66°
- Minimum focus distance 0.3 m (0.98 ft.)
- Distance to spot ratio 24:1
- Pseudo dual range No
- Image frequency 8.7 Hz
- Focus Fixed
- Focal plane array/spectral range Uncooled microbolometer/7.5–14 μm
- Detector pitch 17 μm
- Image presentation
- Display resolution 320 × 240 pixels
- Surface brightness (cd/m2) 400
- Screen size 2.4 in. portrait
- Viewing angle 80°
- Color depth (bits) 24
- Aspect ratio 4:3
- Display technology TFT
- Cover glass material Optical grade silicon
- Image adjustment Automatic
- Image modes MSX (Multi Spectral Dynamic Imaging)
Visual with temperature reading
- Gallery Yes
| Device |
Thermometer |
| Type |
Imaging | IR |
