FKWT 4-225/2M
Cordset M12 FixCon A COD Female Angled. 4 Pole - Single End - 2M PUR Cable IP67 (51634) (EWF124FIX PUR4X034L0200)

Name: FKWT 4-225/2M - Communica [Part No: FKWT 4-225/2M]
Brand: Belden
SKU: FKWT 4-225/2M
Price: 187.03 ZAR
Availability: InStock

SKU: FKWT 4-225/2M

BRAND: Belden

In Stock
R 215.08_{(inc VAT)}
R 187.03_{(ex VAT)}

Or split into 4x interest-free
payments of R46.75 Learn more

Collections: Wire & Cable

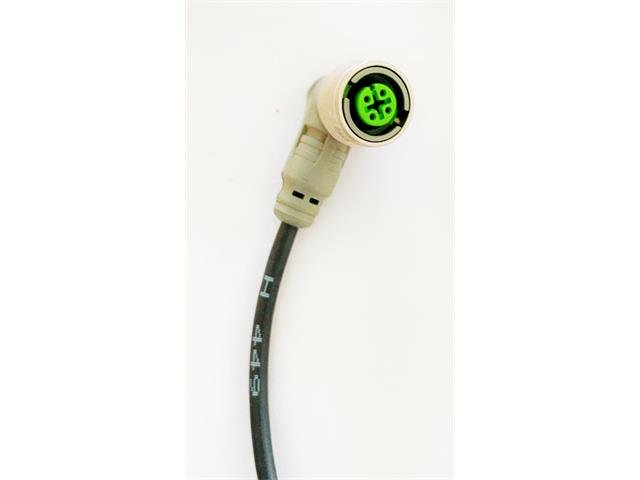

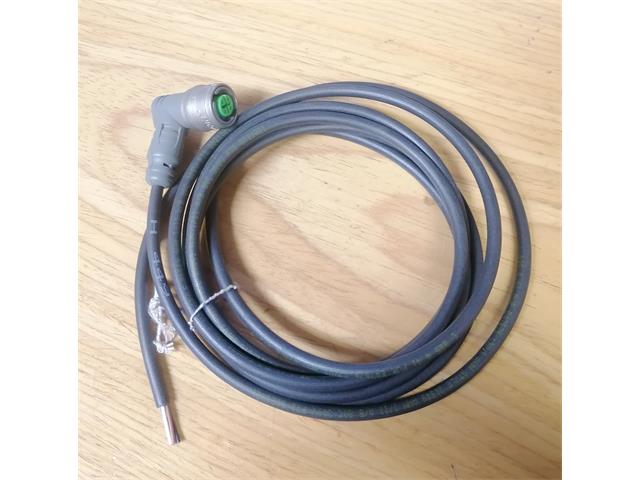

Cordset M12 FixCon A COD Female Angled

Product Family	Sensor / Actuator Connectors
Product Sub Family	M12 Standard
Connector Type	Cordset, single ended
Type of Contact / Gender	Female
Connector Design	Angled
Number of Pins	4
Coding	A
Shielding	Unshielded
Attachment Type	Coupling Nut
Rated Voltage	250 V
Rated Voltage (UL)	250 V AC
Rated Impulse Voltage	2.5 kV
Operating Voltage	230 V AC/DC
Rated Current*	4 A
Rated Current (UL)*	4 A
Contact Resistance	≤ 10 mOhm
Insulation Resistance	˃ 10^9 Ohm
Mating Cycles	≤ 100
Ambient Temperature (Operation)*	- 40 °C - + 90 °C
Operating Temperature (UL)	max. + 50 °C
Protection Degree / IP Rating**	IP65, IP67, IP68 (1 m / 24 h), IP69K
Design Standard	IEC 61076-2-101
Pollution Degree	3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category	II acc. to DIN EN 60664-1 (VDE 0110-1)

Contact Base Material	CuSn
Contact Plating	Cu/Au
Contact Bearer Material	TPU
Contact Bearer Color	Orange
Flammability Class (Contact Bearer)	UL 94 HB
Molded Body Material	TPU
Molded Body Color	Translucent
Flammability Class (Molded Body)	UL 94 HB
Attachment Material	CuZn
Attachment Plating	Nickel-plated
O-Ring Material	FKM, green

Fastening Torque (Attachment)	M 12x1: (50-60) Ncm, hand-tight

Cable Number	225
Conductor Size	0.34 mm²
Number of Wires	4
Minimal Bending Radius (Fixed Inst)	˃ 5 x D
Minimal Bending Radius (Flexible Inst)	˃ 10 x D
Cycles (Bending)	˃ 5 M
Cycles (Torsion)	˃ 5 M @ ± 360 °/1 m
Conductor material	Cu
Cable Jacket Material	PUR
Cable Jacket Color	black matt similarly RAL 9005
Cable Diameter D	ø 4.70 ± 0.15 mm
Wire Insulation Material	PP
Insulated Wire Diameter	ø 1.30 ± 0.10 mm
Ambient Temperature (Fixed Installation)	- 50 °C - + 90 °C (UL: + 80 °C)
Ambient Temperature (Flex Installation)	- 25 °C - + 90 °C (UL: + 80 °C)
Ambient Temperature (Drag Chain Inst)	- 25 °C - + 60 °C
UL Cable Type	AWM: 20549
Flammability Class (Cable Jacket)	DIN EN 60332-2-2, VDE 0482-332-2-2, IEC 60332-2-2, CSA FT-2
Cable Characteristics	Good microbes and hydrolysis resistance; Mainly plasticizer diffusion free; Exclusion of PVC and silicone; Coldness flexibility; Free of lacquer wetting disturbing substances

Device	Cordset
Type	M12 \| FixCon \| A COD \| Female \| Angled
