SKU: DHA VTO2311R-WP
BRAND: Dahau
In Stock
R 1,980.00 (inc VAT)
R 1,721.74 (ex VAT)
Collections: New Arrivals, Security, Access Control & Surveillance
Type: Access Automation
Category: Intercom and Accessories, New

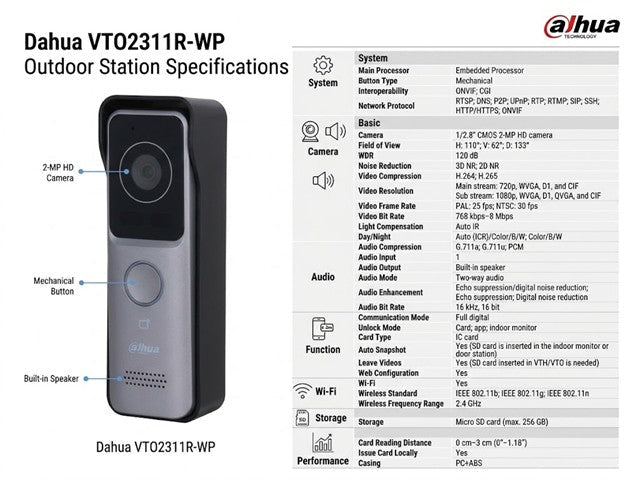

System |
|
Main Processor |
Embedded Processor |
Button Type |
Mechanical |
Interoperability |
ONVIF; CGI |
Network Protocol |
RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF |
Basic |
|
Camera |
1/2.8" CMOS 2-MP HD camera |
Field of View |
H: 110°; V: 62°; D: 133° |
WDR |
120 dB |
Noise Reduction |
3D NR; 2D NR |
Video Compression |
H.264; H.265 |
Video Resolution |
Main stream: 720p, WVGA, D1, and CIF; |
Video Frame Rate |
PAL: 25 fps |
Video Bit Rate |
768 kbps–8 Mbps |
Light Compensation |
Auto IR |
Day/Night |
Auto (ICR)/Color/B/W; Color/B/W |
Audio Compression |
G.711a; G.711u; PCM |
Audio Input |
1 |
Audio Output |
Built-in speaker |
Audio Mode |
Two-way audio |
Audio Enhancement |
Echo suppression/digital noise reduction; Echo suppression; Digital noise reduction |
Audio Bit Rate |
16 kHz, 16 bit |
Function |
|
Communication Mode |
Full digital |
Unlock Mode |
Card; app; indoor monitor |
Card Type |
IC card |
Auto Snapshot |
Yes (SD card is inserted in the indoor monitor or door station) |
Leave Videos |
Yes (SD card inserted in VTH/VTO is needed) |
Web Configuration |
Yes |
Wi-Fi |
Yes |
Wireless Standard |
IEEE 802.11b; IEEE 802.11g; IEEE 802.11n |
Wireless Frequency Range |
2.4 GHz |
Storage |
Micro SD card (max. 256 GB) |
Performance |
|
Card Reading Distance |
0 cm–3 cm (0"–1.18") |
Issue Card Locally |
Yes |
Casing |
PC+ABS |
Capacity |
|
Card Capacity |
3000 |
Port |
|
Exit Button |
1 |
Door Status Detection |
1 |
Lock Control |
1 |
Network Port |
1 × RJ-45 10/100 Mbps Ethernet port |
Alarm |
|
Tamper Alarm |
Yes |
General |
|
Appearance color |
Light grey |
Power Supply |
12–33 VDC, 1 A ; Standard PoE |
Power Adapter |
Optional |
Installation |
Surface Mount |
Certifications |
CE; FCC |
Accessory |
Included: Alarm power ribbon cable, rain cover |
Product Dimensions |
160 mm × 50 mm × 30 mm (6.30" × 1.97" × 1.18") |
Protection |
IP65 |
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
Operating Humidity |
10%–90% (RH), non-condensing |
Operating Altitude |
0 m–3,000 m (0 ft–9,842.51 ft) |
Power Consumption |
≤ 3.5 W (standby), ≤ 6 W (working) |
Gross Weight |
0.4 kg (0.88 lb) |
Net Weight |
0.18 kg (0.40 lb) |
Device | Door Station |
Type | 2MP | Wi-Fi | Villa |
