HKV DS-2DE2C200MWG-E (2.8MM)

SKU: HKV DS-2DE2C200MWG-E (2.8MM)

BRAND: Hikvision

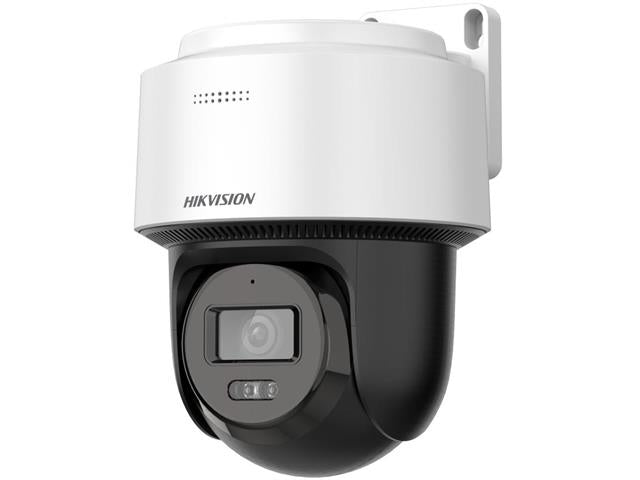

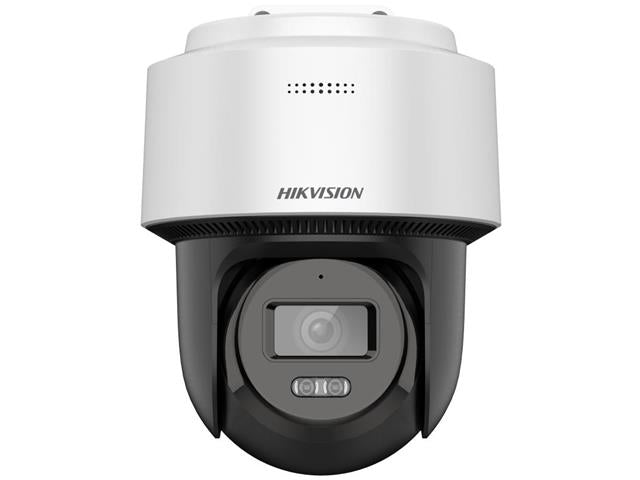

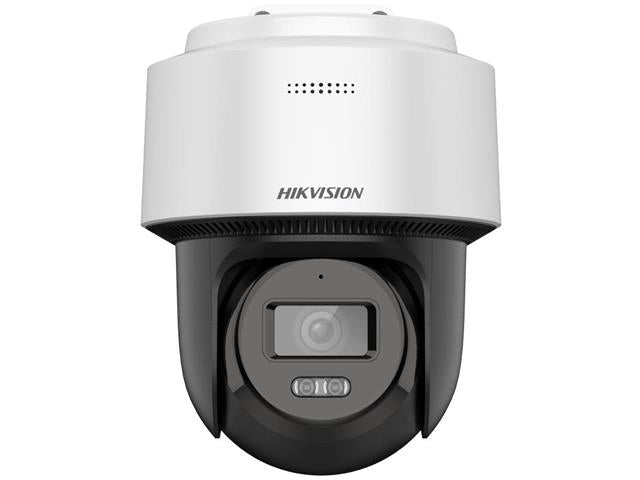

Hikvision Smart Hybrid Light Mini PT Network Camera 2MP 2.8mm Lens, 30m IR, 1/2.9" CMOS, Built-in Microphone & Speaker, Support Human Detection & Auto-Tracking Lite, 1xRJ45 10M/100M, WDR, 12VDC ± 25%, 0.75A, PoE:IEEE 802.3af 36V~57V, IP66

Smart Hybrid Light Mini PT Network Camera

Feature(s)

  • High quality imaging with 2 MP resolution
  • Support Human Detection and Auto-tracking Lite
  • Smart Hybrid Light: advanced technology with long range
  • Hik-Connect cloud service and APP for remote management and views of device
  • Built-in microphone and speaker for real-time audio security
  • Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB
  • Water and dust resistant (IP66)

Specifications

Camera

  • Image Sensor : 1/2.9" Progressive Scan CMOS
  • Max. Resolution : 1920 × 1080
  • Min. Illumination : Color: 0.01 Lux @ (F2.0, AGC ON),B/W: 0.005 Lux @ (F2.0, AGC ON),0 Lux with light

Lens

  • Focal Length : 2.8 mm
  • FOV : 2.8 mm, horizontal FOV 105°, vertical FOV 58°, diagonal FOV 123°
  • Aperture : F2.0

Illuminator

  • Supplement Light Type : IR,White Light
  • Supplement Light Range : White light distance: up to 30 m,IR distance: up to 30 m
  • IR Wavelength : 850 nm

PTZ

  • Movement Range (Pan) : 0° to 345°
  • Movement Range (Tilt) : 0° to 80°
  • Pan Speed : Up to 25°/s
  • Tilt Speed : Up to 20°/s

Video

  • Main Stream
    • 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
    • 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub-Stream
    • 50 Hz: 25 fps (640 × 480, 640 × 360)
    • 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Video Compression : H.265, H.264, MJPEG
  • Video Bit Rate : 32 Kbps to 8 Mbps
  • H.264 Type : Baseline profile,Main profile,High profile
  • H.265 Type : Main profile

Audio

  • Audio Compression : G.711/G.722.1/G.726/MP2L2/PCM//AAC-LC
  • Audio Bit Rate : 16 Kbps (G.722.1)/64 Kbps (G.711)/32 to 192 Kbps (MP2L2)/16 Kbps (G.726)/16 to 64 Kbps (AAC-LC)/8 to 48 Kbps (PCM)
  • Audio Sampling Rate : 8 kHz,16 kHz
  • Environment Noise Filtering : Yes

Network

  • Protocols : IPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, DNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour
  • API : ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP


  • Image Settings : Saturation, brightness, contrast, and sharpness adjustable by client software or web browser
  • Wide Dynamic Range (WDR) : Digital WDR
  • Image Enhancement : BLC, HLC, 3D DNR

Interface

  • Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Built-in Microphone : 1 built-in microphone
  • On-board Storage : Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Built-in Speaker : 1 built-in speaker

Event

  • Basic Event : Motion detection (support alarm triggering by specified target type (human)), video tampering alarm, exception
  • Linkage : Upload to FTP/memory card, notify surveillance center, send email, trigger capture, audible warning, auto-tracking lite

General

  • Power
    • 12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection,
    • PoE: IEEE 802.3af, 36 V to 57 V, 0.2 A to 0.3 A, max. 10.5 W
  • Dimension
    • Camera dimension: 163.9 mm × 185.8 mm × 131.9 mm (6.45" × 7.31\" × 5.19\")
    • With package dimension: 224 mm × 164 mm × 230 mm (8.82 × 6.46\" × 9.06\")"
  • Weight
    • Camera weight: 600 g (1.32 lb.)
    • With package weight: 900 g (2.0 lb.)
  • Material : Plastic
  • Operating Condition : -30 °C to 40 °C (-22 °F to 104 °F). Humidity 90% or less (non-condensing)
  • General Function : Mirror, password protection, watermark

Downloads

Additional Information

Device Camera
Type Smart | Hybrid Light | Mini | PT | Network
