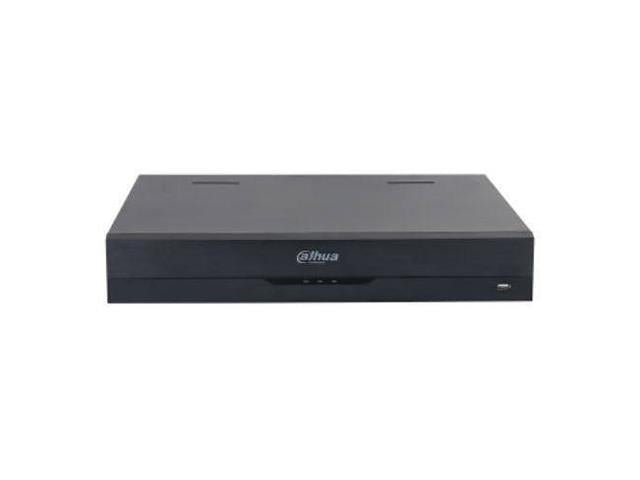

DHA NVR5464-EI

SKU: DHA NVR5464-EI

BRAND: Dahua


Dahua WizSense NVR 64 Channels 1.5U 4HDDs,Smart H.265+/H.265/Smart H.264+,Max Decoding Capability:32×1080p@30fps or 32×2MP@30fps ,Resolution:32MP,24MP,16MP,12MP,8MP,5MP,4MP,1080p,720p,D1,CIF,QCIF,2xHDMI,2xVGA,3xUSB,RS232,RS485,RJ45 10/100/1000Mbps,Non POE

64 Channels WizSense NVR

Feature(s)

  • Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
  • Max. decoding capability: 32 × 1080p@30 fps or 32 × 2MP@30 fps.
  • Max. 384 Mbps incoming/recording/outgoing bandwidth.
  • Support AcuPick with Max. 16-Channel.
  • Support N+M cluster.
  • AI by recorder: 2-channel face detection and recognition, 4-channel
    perimeter protection, and 8-channel SMD Plus.
  • AI by camera: Face detection and recognition, perimeter protection,
    SMD Plus, metadata, ANPR, stereo analysis, heat map, and people
    counting.
  • Security baseline 2.3.

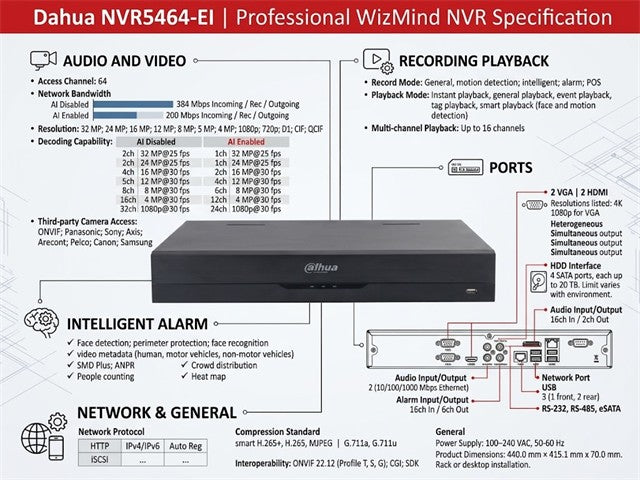

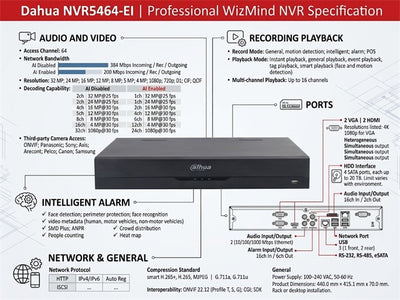

Specifications

System

  • Main Processor : Industrial-grade processor
  • Operating System : Embedded Linux
  • Operating Interface : Web, Local GUI

AI

  • AI by Recorder : Face detection; face recognition; perimeter protection; SMD Plus
  • AI by Camera : Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles);
    perimeter protection; SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map
  • AcuPick AI by Camera + Recorder : Max. 16-channel, 1 combined event per channel/s

Perimeter Protection

  • Perimeter Performance AI by Recorder (Number of Channels) : 4 channels, 10 IVS rules for each channel
  • Perimeter Performance of AI by Camera (Number of Channels) : 16 channels

Face Detection

  • Face Attributes : Gender; age group; glasses; expressions; face mask; beard
  • Face Detection Performance of AI by Recorder (Number of Channels) : 2 channels (up to 12 face images/s each channel)
  • Face Detection Performance of AI by Camera (Number of Channels) : 16 channels

Face Recognition


  • Face Database Capacity : Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
  • Face Recognition Performance of AI by Recorder (Number of Channels) : 1. 16-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s 2. 2-channe FD (by recorder) + FR (by recorder), video stream: 12 face images/s
  • Face Recognition Performance of AI by Camera (Number of Channels) : 16 channels

SMD Plus

  • SMD Plus by Recorder : 8 channels: Secondary filtering for human and motor
    vehicle , reducing false alarms caused by leaves, rain and lighting condition change
  • SMD Plus by Camera : 16 channels

Video Metadata

  • Metadata Performance of AI by Camera (Number of Channels) : 8 channels
  • Human Attributes : Top color, top type, bottom color, bottom type, hat, bag, age, gender and umbrella
  • Motor Vehicle Attributes : License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location.
  • Non-motor Vehicle Attributes : Vehicle model, vehicle color, number of persons, helmet.

Vehicle License Plate Comparison

  • ANPR by Camera (Number of Channels) : 8 channels
  • License Plate Database Capacity
    • Create up to 20,000 plate numbers.
    • Blocklist and allowlist

Audio and Video

  • Access Channel : 64
  • Network Bandwidth
  • AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing
    AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing
  • Resolution : 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1; CIF; QCIF
  • Decoding Capability
  • AI disabled:
    • 2-channel 32 MP@25 fps; 2-channel 24 MP@25 fps;
    • 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps;
    • 8-channel 8 MP@30 fps; 12-channel 5 MP@30 fps;
    • 16-channel 4 MP@30 fps; 32-channel 1080p@30 fps
  • AI enabled:
    • 1-channel 32 MP@25 fps; 1-channel 24 MP@25 fps;
    • 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps;
    • 6-channel 8 MP@30 fps; 8-channel 5 MP@30 fps;
    • 12-channel 4 MP@30 fps; 24-channel 1080p@30 fps
  • Video Output
    • 2 VGA, 2 HDMI
    • VGA:1920 × 1080, 1280 × 1024, 1280 × 720
    • HDMI:3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
    • Heterogeneous video source output for HDMI1 and HDMI2
    • Simultaneous video source output for VGA1 and HDMI1
    • Simultaneous video source output for VGA2 and HDMI2
  • Multi-screen Display
    • Main screen: 1/4/8/9/16/25/36/64
    • Sub screen: 1/4/8/9/16
  • Third-party Camera Access : ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung

Compression Standard

  • Video Compression : Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
  • Audio Compression : G.711a; G.711u; PCM; G726

Network

  • Network Protocol : HTTP; HTTPS; TCP/IP; IPv4/IPv6; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI
  • Mobile Phone Access :  iOS; Android
  • Interoperability : ONVIF 22.12 (Profile T; Profile S; Profile G); CGI; SDK
  • Browser : Chrome;IE;Safari;Edge;Firefox
  • Network Mode : Multi-address mode, load balance, fault tolerance and other network port binding modes

Recording Playback

  • Multi-channel Playback : Up to 16 channels
  • Record Mode : General, motion detection; intelligent; alarm; POS
  • Backup Method : USB device and network
  • Playback Mode : Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)



Storage

  • Disk Group : YES

Alarm

  • General Alarm : Motion detection; privacy masking; local alarm
  • Anomaly Alarm : Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fan; cybersecurity exception
  • Intelligent Alarm : Face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map
  • Alarm Linkage : Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email

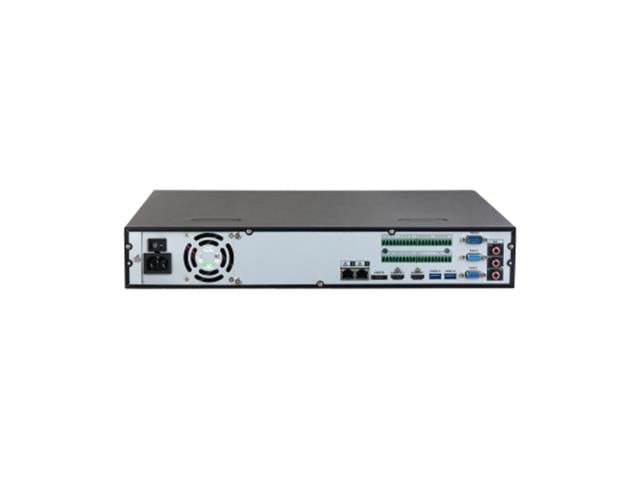

Port

  • Audio Input : 1-channel RCA
  • Audio Output : 2-channel RCA
  • Alarm Input : 16 channels
  • Alarm Output : 6 channels (1-channel 12 V 1 A output)
  • HDD Interface : 4 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
  • eSATA : 1
  • RS-232 : 1
  • RS-485 : 1 (half-duplex serial communication)
  • USB : 3(1 front USB 2.0 port, 2 rear USB 3.0 ports)
  • HDMI : 2
  • VGA : 2
  • Network Port : 2 (10/100/1000 Mbps Ethernet port, RJ-45)

General

  • Power Supply : 100–240 VAC, 50-60 Hz
  • Power Consumption : Total output of NVR is ≤ 13 W (without HDD)
  • Net Weight : 4.74 kg (10.45 lb)
  • Gross Weight : 6.11 kg (13.47 lb)
  • Product Dimensions : 440.0 mm × 415.1 mm x 70.0 mm (17.32"" × 16.34"" × 2.76"") (W ×D × H)
  • Packaging Dimensions : 530.0 mm × 500.0 mm × 210.0 mm (20.87"" × 19.69"" × 8.27"")(W × D × H)
  • Operating Temperature : –10 °C to +55 °C (14 °F to +131 °F)
  • Storage Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
  • Operating Humidity : 10%–93% (RH)
  • Installation : Rack or desktop



Additional Information

Device NVR
Type 64 Channels | WizSense
