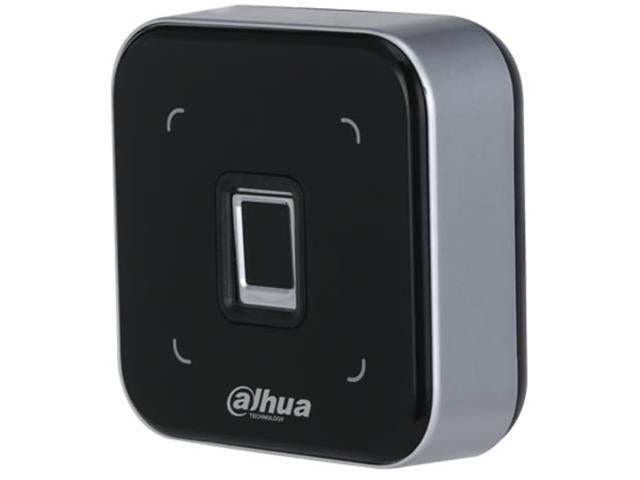

Dahua Access Reader, Support Card/Fingerprint Unlock, RS485, Fingerprint Capacity:3000, Buzzer, Tamper Alarm, Support Contactless Recognition of IC Card (Mifare Card), PSU12V 0.5A, Fingerprint Recognition 1.5s, 70×70×26mm, IP65
Features
- PC material, acrylic panel and IP65, suitable for indoor and outdoor use
- Support contactless recognition of IC card (Mifare card)/ID card
- Support card/fingerprint unlock
- Support RS-485 communication protocol
- Support buzzer and indicator prompt
- Support anti-tampering alarm
- The built-in watchdog can detect and control the abnormal operation status of the equipment and perform recovery processing to ensure the long-term operation of the equipment
- All connection ports have overcurrent and overvoltage protection

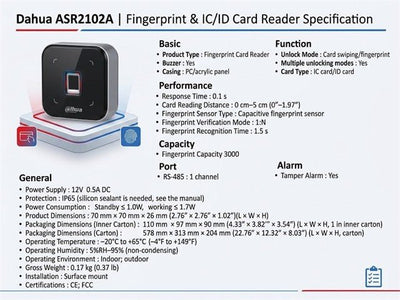

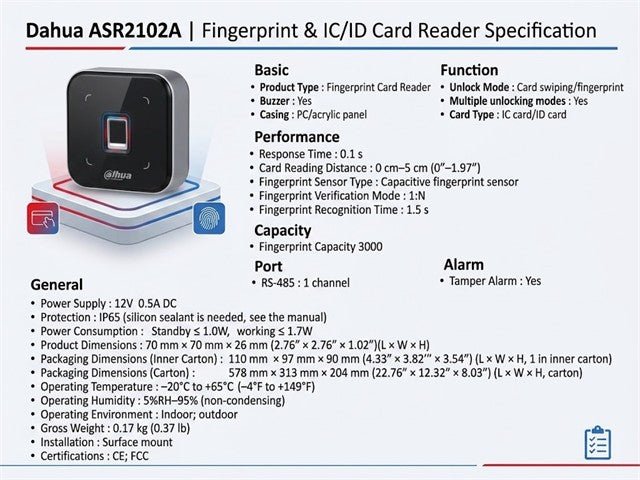

Specifications
Basic
- Product Type : Fingerprint Card Reader
- Buzzer : Yes
Casing : PC/acrylic panel
Function
- Unlock Mode
- Card swiping/fingerprint
- Multiple unlocking modes
- Card Type : IC card/ID card
Performance
- Response Time : 0.1 s
- Card Reading Distance : 0 cm–5 cm (0"–1.97")
- Fingerprint Sensor Type : Capacitive fingerprint sensor
- Fingerprint Verification Mode : 1:N
- Fingerprint Recognition Time : 1.5 s
Capacity
- Fingerprint Capacity 3000
Port
Alarm
General
- Power Supply : 12V 0.5A DC
- Protection : IP65 (silicon sealant is needed, see the manual)
- Power Consumption : Standby ≤ 1.0W, working ≤ 1.7W
- Product Dimensions : 70 mm × 70 mm × 26 mm (2.76" × 2.76" × 1.02")(L × W × H)
- Packaging Dimensions
- 110 mm × 97 mm × 90 mm (4.33" × 3.82"" × 3.54")
(L × W × H, 1 in inner carton)
578 mm × 313 mm × 204 mm (22.76" × 12.32" × 8.03")
(L × W × H, carton)
- Operating Temperature : –20°C to +65°C (–4°F to +149°F)
- Operating Humidity : 5%RH–95% (non-condensing)
- Operating Environment : Indoor; outdoor
- Gross Weight : 0.17 kg (0.37 lb)
- Installation : Surface mount
- Certifications : CE; FCC
