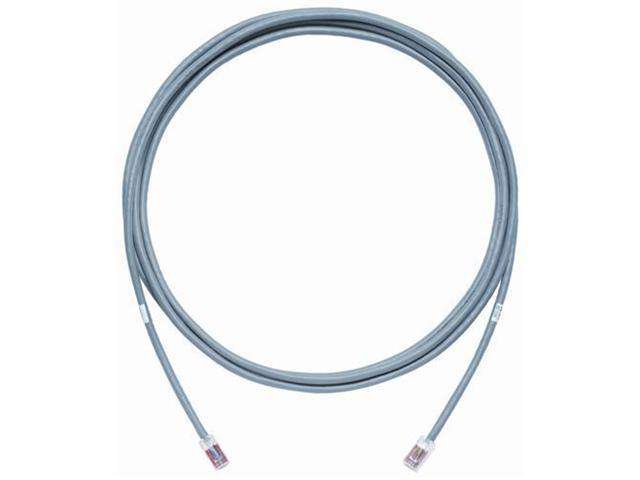

CMS CPC3312-03F005

1.5m Cat6a UTP Stranded Cable with 1Gb/s Network Capability in Grey Colour

• Electrical performance guaranteed to meet or exceed ANSI/TIA-586-C.2 Category 6 and ISO/IEC Category 6/Class E specifications

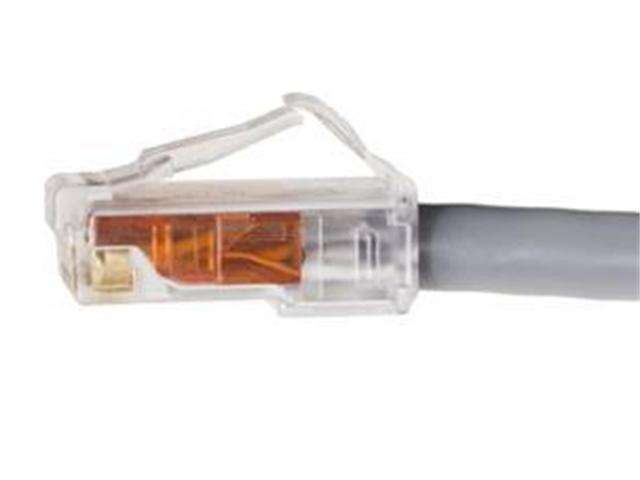

• Patented plug design, improved 24-gauge cordage and a unique manufacturing process assures extremely high electrical performance with low variability
• Improved anti-snag feature provides maximum protection from snagging during moves and rearrangements
• Can support network line speeds in excess of 1 gigabit per second
• Qualifies for a 20-year product and applications assurance warranty when included in a Certified SYSTIMAX GigaSPEED XL channel
• Ideal for Data Center architectural requirements

Electrical Specifications

• ANSI/TIA Category : 6
• DC Resistance, maximum : 0.30 ohm
• Safety Voltage Rating : 300 V

Environmental Specifications

• Environmental Space : Non­plenum
• Flammability Rating : UL 94 V-0
• Operating Temperature : -10°C to 60°C
• Safety Standard : Anatel , cETL, ETL

General Specifications

• Cable Type : U/UTP (unshielded)

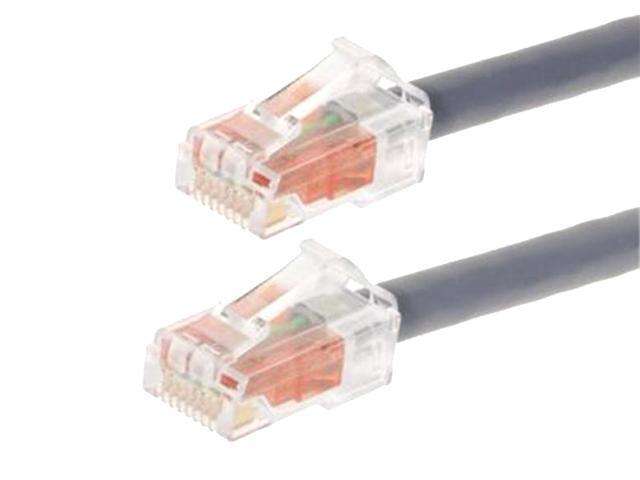

• Interface, Connector A : RJ45 plug
• Interface, Connector B : RJ45 plug
• Jacket Color : Light Blue
• Interface Feature, Connector A : Standard
• Interface Feature, Connector B : Standard
• Package, quantity : 1
• Pairs, quantity : 4

Mechanical Specifications

• Conductor Type : Stranded
• Material Type : Copper Alloy | Polycarbonate
• Outlet/Module Contact Plating : Precious metals
• Plug Insertion Life, minimum : 750 times
• Plug Retention Force, minimum : 133 N | 30 lbf
• Wiring : T568B

Regulatory Compliance/Certifications

• Agency : Classification
• RoHS 2011/65/EU : Compliant
• ISO 9001:2008 : Designed, manufactured and/or distributed under this quality management system
