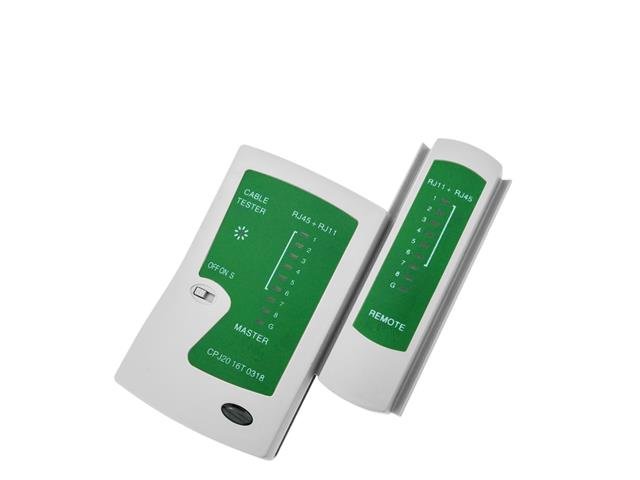

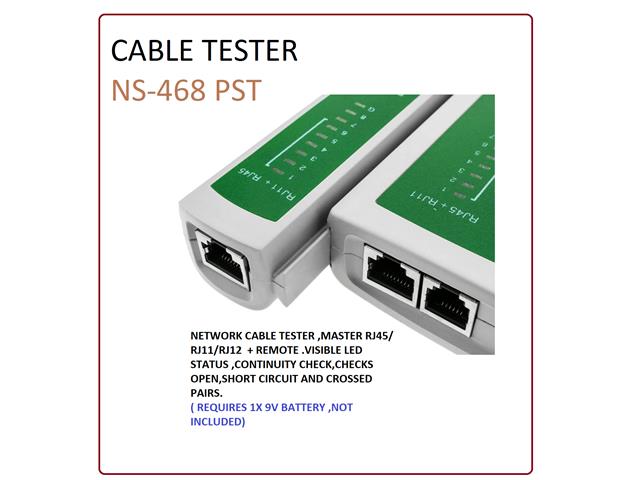

Cable tester consists of two pieces, a master unit and a remote unit.
Master unit = Sends test signals to remote unit.
Remote unit = Receives test signals from master unit.
Cable tester required 9 volt battery for proper operation, battery compartment located in back of master unit.
Connect master unit to one end of a cable in the either rj45 or RJ11/RJ12 connection port on the master unit. Connect remote unit to the opposite end of the cable in the RJ45 or RJ11/RJ12 connection port on the remote unit.
Turn unit to “ON” position. Fast test mode
Turn unit to “S” position. Slow test mode
The maximum test length this cable can test is 1000 feet or 300 meters with a fresh 9 volt battery.
Warnings
Unconnect both ends of cable being tested from any electronic device, hub, computer, phone jack, or phone. Do not attempt to test cable while still connected to any device. Short circuit to device or tester may occur. Not responsible for damages that incur if cables are left in connected position while trying to test cables.
do not test cables while trying to crimp new cable ends on cables. doing so will short circuit tester through the crimp die tooling. This will damage the cable tester.
Troubleshooting
1. If green strobe LED will not illuminate with switch in “ON” or “S” position, change 9 volt battery in master unit.
