Installation

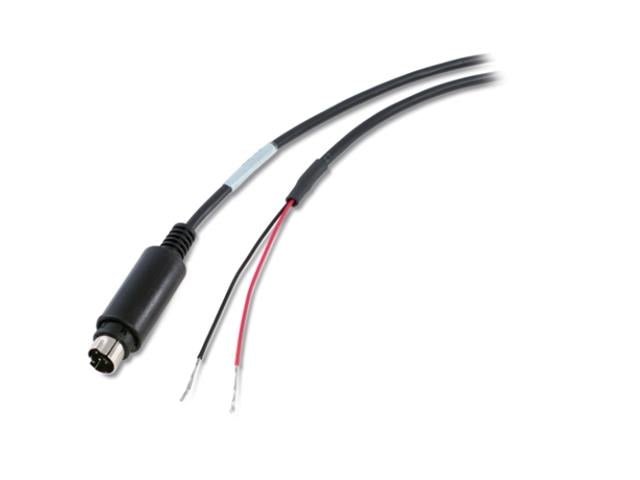

• To use your NetBotz 0-5V Sensor Cable, connect the two wire leads at the end of the NetBotz 0-5V Sensor Cable to the 0-5V sensor.
• Use the instructions included with your,sensor to determine the proper wiring for the sensor.
• Then, connect the other end of the NetBotz 0-5V Sensor Cable to an External Sensor port on your NetBotz appliance or on a Sensor Pod 120.
• When you have finished installing, use the Advanced View to configure the NetBotz appliance to use the 0-5V sensor.
• Once you have configured your appliance you will be able to use the Advanced View to specify the conditions that will cause this sensor to generate a NetBotz alert notification.

General

• Provided equipment : Cable mounting kit, Installation guide

Physical

• Colour : Black
• Depth : 17.8 cm
• Height : 1.3 cm
• Net Weight : 0.14 kg
• Width : 25.4 cm

Output

• Number of port : 1

Environmental

• Operating Altitude : 0...30000 ft
• Relative Humidity : 10…90 %
• Ambient Air Temperature for Storage : -15…65 °C
• Storage Altitude : 0.00…9144.00 m
• Storage Relative Humidity : 10…90 %
