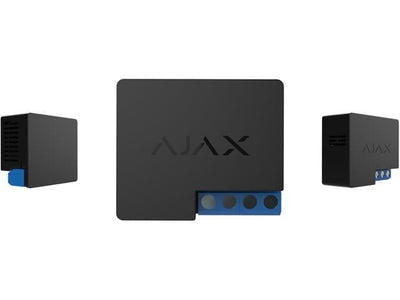

AJAX RELAY
Wireless Low Current Dry Contact Relay, Max Load Current:5A@ 36V DC, 13A @ 230VAC, ADJ Pulse Duration: 0.5~255 sec, Frequency: 868.0~ 868.6MHz, IP20, Power Supply: 7~ 24 V(DC only), 39×33×18mm, 25g

Name: AJAX RELAY - Communica [Part No: AJAX RELAY]
Brand: Ajax
SKU: AJAX RELAY
Price: 798 ZAR
Availability: InStock

SKU: AJAX RELAY

BRAND: Ajax

In Stock
R 917.70_{(inc VAT)}
R 798.00_{(ex VAT)}

Collections: AJAX, Security, Access Control & Surveillance

Type: Alarms & Accessories

Category: Alarm Accessories

Low Current Dry Contact Relay

Overview

Settings versatility and low power consumption make Relay a universal tool for equipment control. Dry contact is not galvanically connected to the device power supply so that it can be used both in low-voltage and household networks. There are bistable and pulse modes. The relay can be easily connected to a power supply unit paired with a backup battery.

Pulse 0.5–255 seconds
Power supply 7–24 V DC
Dry contact

Installation

No extra effort

Connecting Relay to the hub takes less than a minute — it's enough to scan a QR code with the Ajax app. The miniature device (39×33×18 mm) fits easily into a junction box, an electrical panel, or a switching unit body. And the flexible external antenna provides stable connectivity.

Specifications

Classification : Radio channel relay unit
Device type : Wireless
Installation method : Into electric switchboard, junction box
Compatibility : Operates with all Ajax hubs, and range extenders
Actuating element : Electromagnetic relay
Relay service life : 200,000 switch-ons
Voltage protection : Max — 36.5 V, min — 6.5 V
Maximum load current : 5A at 36V DC, 13A at 230V AC
Maximum current protection : No
Maximum temperature protection : > 65°C at the place of installation
Electric power meter function : No
Energy consumption parameter check : Voltage
Power supply : 7 - 24 V (DC only)

Operation modes

Impulse
Bistable

Contact state

Normally open
Normally closed

Adjustable pulse duration : 0.5–255 sec

Jeweller radio technology

Communication range with central unit — up to 1,000 m in an open space
Two-way communication between devices
Operating frequencies — 868.0 - 868.6 MHz
Self-adjusting RF output power — up to 25 mW
Block encryption based on AES algorithm
Device scanning period — 12 - 300 s

Operating temperature range : From 0°С to +64°С
Permissible humidity : Up to 75%
Protection class of body : IP20

Anti-sabotage

Protection against fraud
Jamming detection

Remote setting and testing : +

Dimensions : 39 × 33 × 18 mm

Weight : 25 g

Warranty : Replacement and repair within 24 months of the date of sale.

Complete set

Relay
Installation set
User's guide

Downloads

User Manual - AJAX RELAY

Additional Information

Device	Relay
Type	Low Current \| Dry Contact
References	How to connect
