Wireless Indoor Touch Keypad with Support for Encrypted Contactless Cards & Key Fobs, Two-Way Communication Between Devices, FREQ:868.0~ 868.6 MHz, Contactless Access: DESFire EV1, EV2, ISO14443-А (13,56 MHz), 165×113×20mm

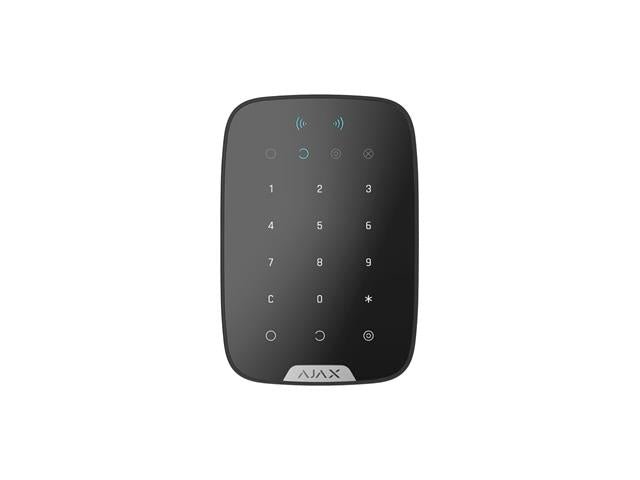

Wireless Indoor Touch Keypad
Overview

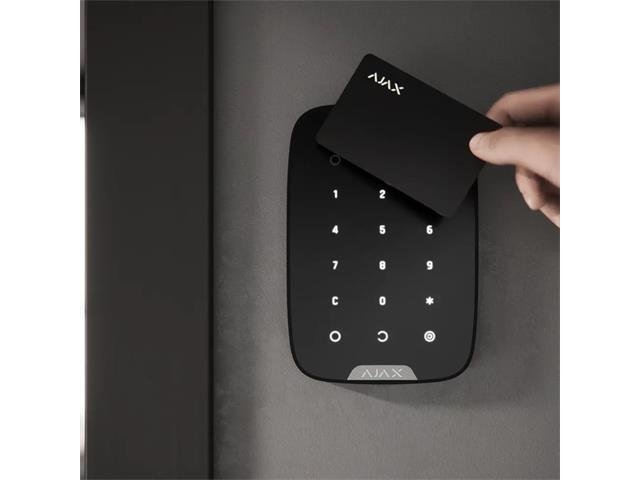

KeyPad Plus is a combination of design, advanced encryption technology, and elaborated user experience for the most straightforward and protected security management. Arm and disarm Ajax, activate Night Mode and manage specific groups with a Pass card or Tag1 key fob.
Specifications
- Keypad type : Capacitive touch keypad
- Installation : Indoor only
- Compatibility : Hub Plus, Hub 2, Hub 2 Plus, ReX with OS Malevich 2.11 and higher
- Personal passcodes : Yes
- Passcode guessing protection : Yes
- Duress code : Yes
- Contactless access : DESFire® EV1, EV2 ISO14443-А (13,56MHz)
- Power supply Batteries:
- 4 lithium AA (FR6)
- Voltage 1.5V
- Battery life: up to 4.5 years
- Temperature sensor : Available
- Jeweller radio technology
- Communication range with central unit — up to 1,700m
- Two-way communication between devices
- Operating frequencies — 868.0–868.6 MHz5
- Self-adjusting RF output power — up to 20 MW
- Block encryption with a dynamic key
- Ping period — 12–300 s
- Anti-sabotage
- Authentification
- Jamming detection
- Tamper notifications
- Operating temperature range : From -10°C to +40°C
- Operating humidity : Up to 75%
- Dimensions : 165 × 113 × 20 mm
- Weight : 267 g
- Certification : EN 50131, complies with the requirements of the technical regulations for radio equipment
- Warranty : 24 months
- Complete set
- KeyPad Plus
- SmartBracket mounting panel
- 4 АА batteries (pre-installed)
- Installation kit
- User guide
Downloads
Additional Information
Device |
Keypad |
Type |
Wireless | Indoor | Touch |
