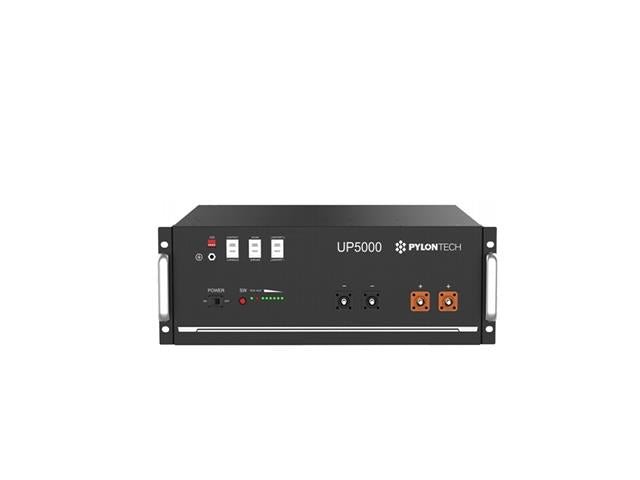

BATT 48V100A LI-ION PYL

Name: BATT 48V100A LI-ION PYL - Communica [Part No: BATT 48V100A LI-ION PYL]
Brand: Pylontech
SKU: BATT 48V100A LI-ION PYL
Price: 21098 ZAR
Availability: InStock

SKU: BATT 48V100A LI-ION PYL

BRAND: Pylontech

In Stock
R 24,262.70_{(inc VAT)}
R 21,098.00_{(ex VAT)}

Collections: Loadshedding, Only Few Left!, Power

Type: Batteries

Category: Lithium Ion Rechargeable Battery, Loadshedding

Pylontech Lithium Ion Rechargeable Battery UP5000 48V 100A 4.8KWH, Charge/Discharge Current 90-200A (Peak@15s), RS485/CAN, Discharge Voltage:44.5V, Charge/Voltage(V): 52.5~53.5, Cycle Life >4,500 (25℃) 95% DOD, (442x420x165mm), 41kg

Lithium Ion Rechargeable Battery

Overview

Electricity power occupies more than half of increasing energy consumption in this decade, DER (distributed energy resources) is crucial today during the COVID-19 pandemic while the conventional grid is less reliable because of the less manpower available.

Specifications

Nominal

Nominal Voltage(V) : 48
Nominal Capacity(Wh) : 4,800
Ussable Capacity(Wh) : 4,560

Physical

Dimension(mm ) : 442*420*165
Weight(Kg) : 41

Electrical

Discharge Voltage(Vdc) 44.5
Charge Voltage(Vdc) 52.5 ~ 53.5
Charge / Discharge Current(Amps) : 50(Continuous) 74-89(60sec) 90-200A(Peak@15sec)

Others

Communication Port RS485,CAN
Single string quantity(pcs) 16
Working Temperature/°C
- 0~50 Charge
- -10~50 Discharge
Shelf Temperature/°C -20~60
Altitude (M) : <4000
IP rating : IP20
Humidity (RH) : 5~95%
Certification : IEC62619/CE/ UN38.3
Design life : 10+ Years (25°C/77°F)
Cycle Life : >4,500 (25°C)

Downloads

Additional Information

Device	Battery
Type	Lithium Ion \| Rechargeable
