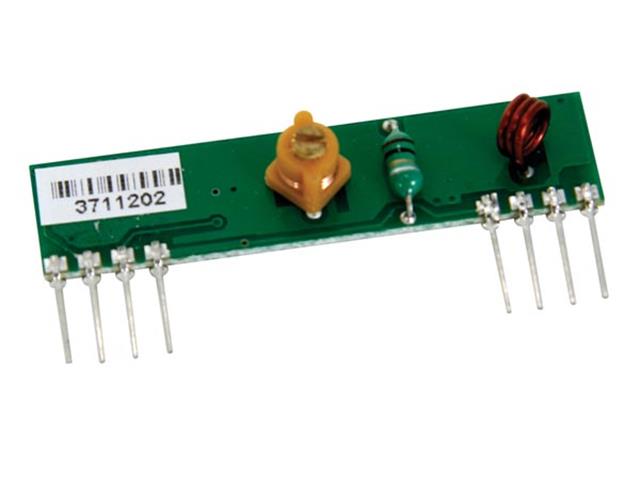

VELLEMAN RX433N
Receiver Module 433MHz 2meter Range Kit
• Function Group : Transmitters / Receivers / Remote

SKU: VELLEMAN RX433N

BRAND: Velleman


Or split into 4x interest-free
payments of R45.93 Learn more

Receiver Module 433MHz 2meter Range Kit

  • No adjustments required
  • Stable output
  • Suitable for remote controls, telemetry
  • Range: 200 m in open air
  • Frequency: 433 MHz
  • Modulation: ASK
  • Sensitivity: -106 dBm
  • Power supply: 4.5-5.5 VDC
  • Digital and linear output
  • Pin numbers:

  • 1: gnd
  • 2: digital output
  • 3: linear output
  • 4: Vcc
  • 5: Vcc
  • : gnd
  • 7: gnd
  • 8: antenna (30-35cm)
Device Receiver Module
Type 433MHz
