BDD ESP32 CAM 4WD SMART CAR KIT - Educational Kits -

BDD ESP32 CAM 4WD SMART CAR KIT
ESP32 CAM 4WD Smart Robot Car Kit with WiFi APP Control (Without 18650 Battery & Charger)

Name: BDD ESP32 CAM 4WD SMART CAR KIT - Communica [Part No: BDD ESP32 CAM 4WD SMART CAR KIT]
Brand: Communica
SKU: BDD ESP32 CAM 4WD SMART CAR KIT
Price: 1000 ZAR
Availability: InStock

SKU: BDD ESP32 CAM 4WD SMART CAR KIT

BRAND: Communica

In Stock
R 1,150.00_{(inc VAT)}
R 1,000.00_{(ex VAT)}

Collections: DIY Kits, New Arrivals

Type: Educational Kits

Category: ESP32 CAM 4WD Smart Robot Car Kit, New

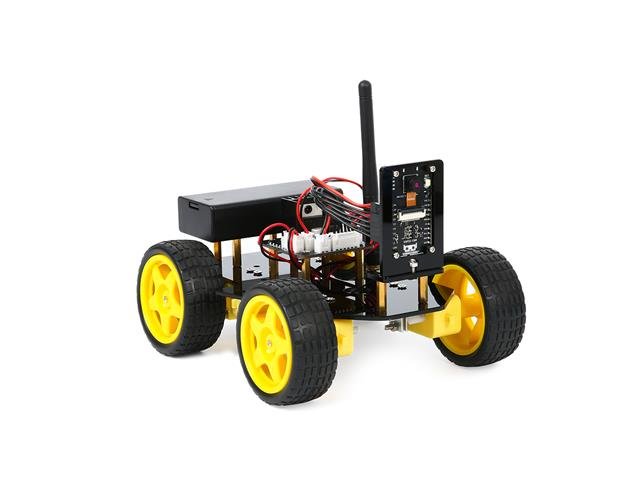

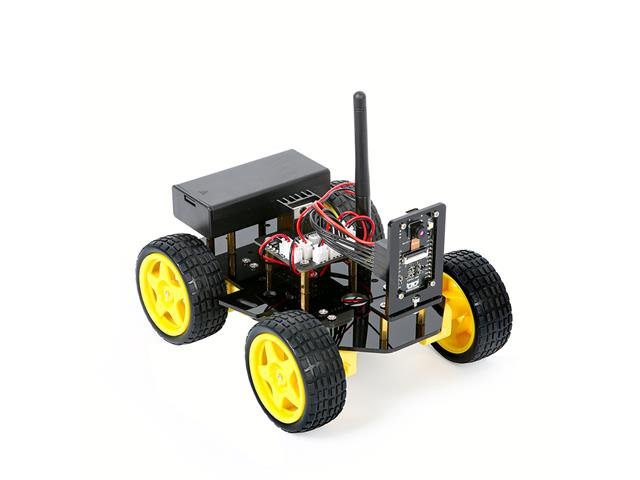

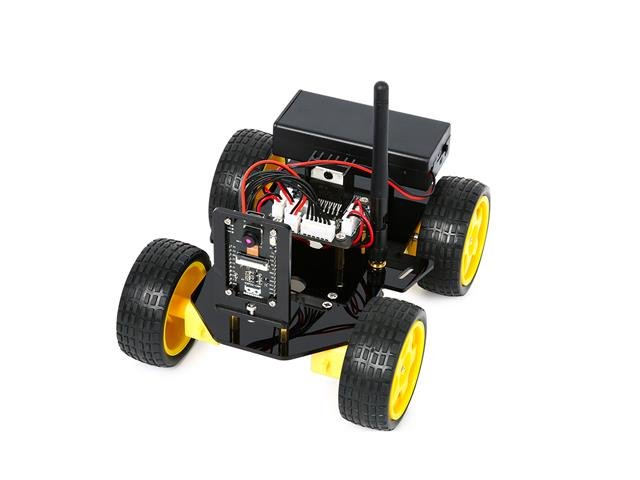

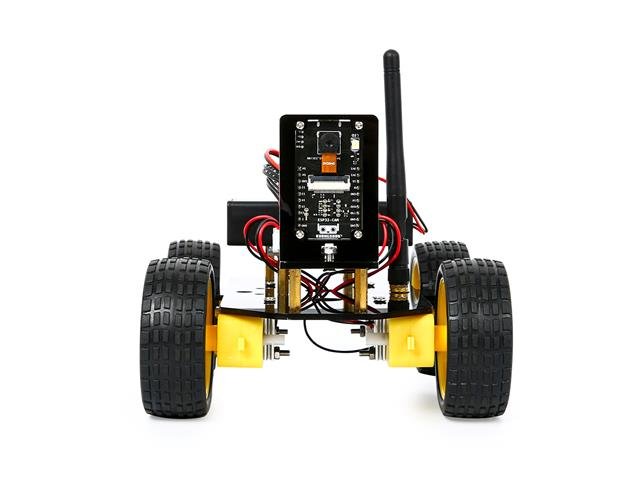

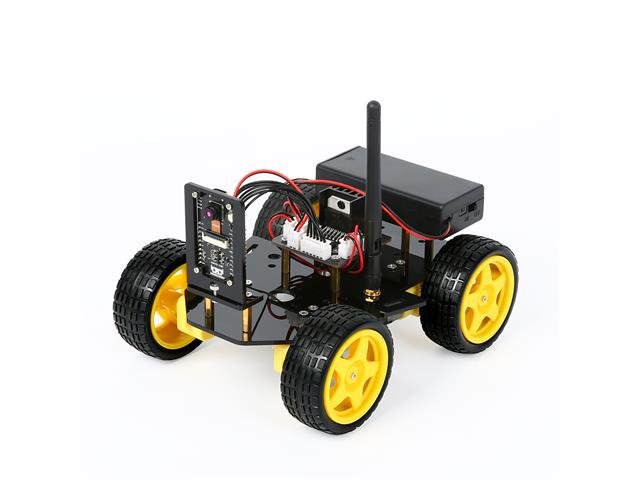

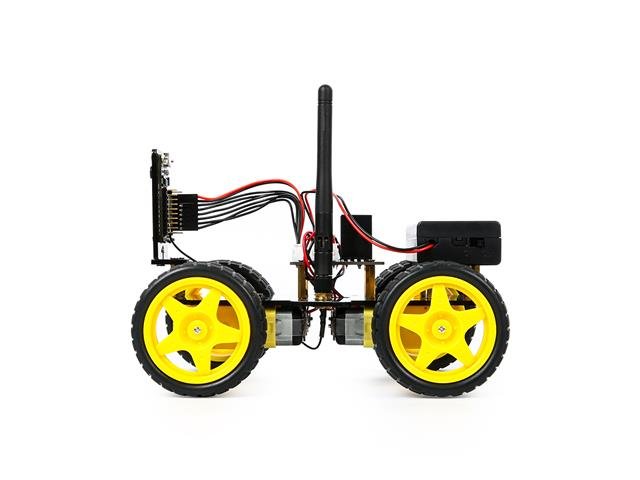

ESP32 CAM 4WD Smart Robot Car Kit

Overview

4WD Smart Robot Car ESP32 Camera Wifi Automation Kit For Arduino Programming ESP Robot with Antenna Learning Complete Coding Kit

ESP32 Wifi Camera.
Live Video.
Easy to Assembly.

Imagine if you had a robot that had a camera on board and could be controlled via the Internet. It opens up so many opportunities to use it. For example, you can send the robot into the kitchen to check if you accidentally left the kettle on the stove! I found it can be done easily with ESP32-CAM. The ESP32-CAM is a very small camera development board with an ESP32-S chip, an OV2640 camera, microSD card slot and several GPIOs for connecting peripherals. OV2640 is a 1/4 inch CMOS UXGA (1632*1232) image sensor.
The sensor's small size and low operating voltage provide all the features of a single UXGA camera and image processor.

Features

Low power dual core 32 bit CPU for application processors.
Main frequency up to 240MHz, processing power up to 600dmips.
Internal 520 KB SRAM, external 4M PSRAM.
Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC.
Support OV2640 and OV7670 cameras, built-in flash. Support image WiFi upload.
Support TF card. 7. Support multiple sleep modes.
Embedded Lwip and free RTOS.
Support STA/AP-/STA + AP- working mode.
Support smart configuration/AirKiss one-click distribution network.
Promote secondary development.

Shipping list

1 x ESP32-CAM Dev Board
1 x L298N Motor Driver
1 x 2-Cell 18650 Battery Holder
4 x TT DC Gear Motors
4 x Wheels (with Rubber Tyres)
2 x ESP32-CAM Support Frame
1 x Acrylic Base Plate
1 x USB Type-C Cable
4 x Metal Motor Brackets
10 x M3x18mm Double Pass Copper Standoff
10 x M3 Nuts
5 x M2 Nuts
8 x M3x30mm Round Head Screw
5 x M2x10mm Round Head Screw
4 x M2x25mm Round Head Self-Tapping Screws
31 x M3x10mm Countersunk Head Screw
1 x 6-Pin JST-XH to DuPont Female Cable
1 x 2-Pin JST-XH to DuPont Female Cable
1 x Wifi Antenna with Adapter
1 x Screwdriver

Downloads

Additional Information

Device	Robot Car Kit
Type	ESP32 \| CAM \| 4WD \| Smart
