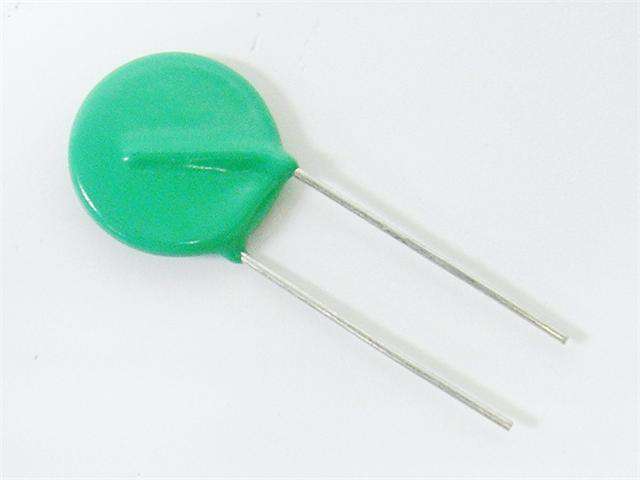

ZOV20D391K
MOV Metal Oxide Varistor Ø 20mm • VACrms= 250V • Prated= 1W • Energy10/1000 uS= 180 J

SKU: ZOV20D391K

BRAND: Hitano


Or split into 4x interest-free
payments of 25% on orders over
R10
Learn more

 ZOV varisotrs are nonlinear 2-electrode semiconductor voltage-dependant resistors, which are designed for transient voltage suppression and surge energy absorption.



  • Large absorbing transient energy capability
  • Very short response time
  • Low Clamping ratio and no follow-on current
  • High resistance Insulation Material prevents the electric arching to the adjacent devices

Size 20mm
Max Allowable ACrms Voltage (V) 250V
Max Allowable DC Voltage (V) 320V
Varistor Voltage @1mA (V) 390V
Max Peak Current @8/20uS (A) 6500A
Max Energy 10/1000 uS (J) 180
Rated Power (W) 1W
Typical Capacitance @ 1kHz (pF) 1000F
