ZKT F7-C
ZKT F7-C Standalone Fingerprint Access Control Terminal, TCP/IP or RS485 or WiFi communication, Audio-Visual indications for acceptance & rejection

SKU: ZKT F7-C

BRAND: ZKTeco


Or split into 4x interest-free
payments of R810.50 Learn more

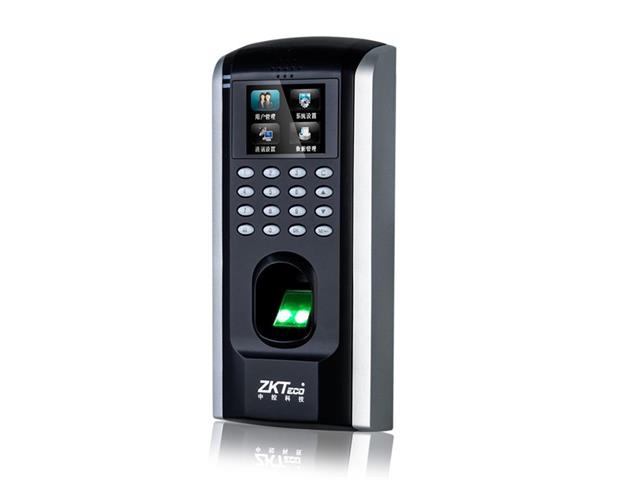

Standalone Fingerprint Access Control Terminal

The F7-C is an IP based fngerprint terminal that works in standalone and network modes. The 4*4 keypad and LCD display make it easy to operate in standalone mode. In network mode, it can connect with ZKAccess3.5 software for access control management.

Wiegand output enables the F7-C to connect with any third party control panel that supports 26 bit wiegand, which allows security suppliers and system integrators to integrate ZKTeco fingerprint identification technology that is accurate, convenient and cost-effective with their current system.

Auxiliary input interface allows F7-C to connect with an external source, for instance a smoke detector or emergency switch. Once the linkage function is enabled through the machine menu, the device would generate an alarm signal and open the door in case of emergency.

  • 2-inch color display with graphical UL, easy for operation.
  • Audio-Visual indications for acceptance & rejection of fingerprint.
  • TCP/IP or RS485 or WiFi communication for various networking environments.
  • Built-in auxiliary input with enhanced flexibility to link with wired detecter or switch.
  • Multi-verificatio methods to enhance security level.
  • Standard access control features such as Time Zone, Holiday, A&C Group, Unlock combination etc.
  • Tamper-proofs switch and multiple alarm Outputs.
  • Duress Alarm offers effective protection against duress by threats.
  • Optional metal protection case for outdoor installation.
  • Multi-language customizable.
  • Model : F7-C
  • LCD : 2-inch color display
  • Fingerprint Sensor : ZK Optical Sensor(500DPI)
  • Algorithm Version : ZKFinger VX\Finger VX
  • Communication : TCP/IP, RS485, WiFi
  • Fingerprint Capacity : 2000
  • Card Capacity (Optional) : 5000
  • Records Capacity : 100,000
  • Access Control Interface : Electric lock, Door sensonr, Alarm, Exit button, Door Bell
  • Wiegand Signal : Wiegand output (optional Weigand input)
  • Aux.Input : 1 ea for linkage function
  • Power Supply : DC 12V/3A
  • Operating Temperature : 0-45°C (32°-113°F)
  • Operating Humidity : 20-80%
  • Dimensions(W*L*H) : 91*188*33mm
Device Access Control Terminal
Type Standalone | Fingerprint
