ZKT CR20E

SKU: ZKT CR20E

BRAND: ZKTeco

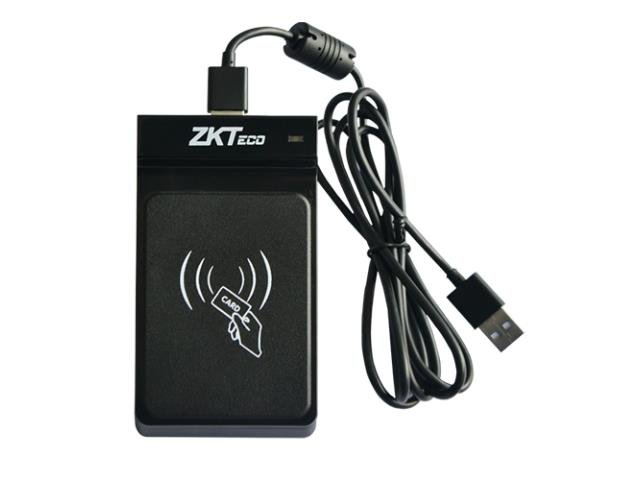

ZKT USB Enrollment Card Reader, Designed to Read (CR20E/M) & Write (CR20M/W) Proximity Cards

USB Enrollment Card Reader

Overview

CR20 Series are accessories designed to read (CR20E/M) & write (CR20M/W) proximity cards. They are connected to PC through USB Port (Plug & play). They allow high speed transactions and incorporate LED indicators. CR20M/W includes communication protocol for development and it’s compatible with S.O Windows 32 bits. CR20E and CR20M are compatible with windows S.O and read the same serial number as ZKTeco devices.

Specifications

  • Model : CR20E
  • Read Range : Up to 5cm
  • Power/Current : USB 5V DC / Max. 80mA
  • LED indicator:  2 Color LED Indicators (Red&Green)
  • Beeper : Yes
  • Operating Frequency : 125KHz
  • Operating temperature : -10o to +70
  • Operating Humidity : 10% to 90% ( relative humidity non- considered)
  • Color : Black
  • Material : ABS+PC with texture
  • Dimension: (WxHxT) mm : 117.2x66.2x17
  • Weight : 120g
  • Operating system support : Emulation Keypad (Compatible with WIN98/2000/XP/VISTA/7)



Downloads

Additional Information

Device Card Reader
Type USB | Enrollment
