WVS ESP32-S3-TOUCH-LCD-1.28+GYRO
MCU Board with Onboard 1.28INCH Capacitive Touch Display, Li-Ion Battery Recharge Manager, 6-Axis Sensor (3-Axis Accelerometer And 3-Axis Gyroscope), and so on, Which makes it easy for you to develop and integrate it into products quickly

Name: WVS ESP32-S3-TOUCH-LCD-1.28+GYRO - Communica [Part No: WVS ESP32-S3-TOUCH-LCD-1.28+GYRO]
Brand: Waveshare
SKU: WVS ESP32-S3-TOUCH-LCD-1.28+GYRO
Price: 430.43 ZAR
Availability: OutOfStock

SKU: WVS ESP32-S3-TOUCH-LCD-1.28+GYRO

BRAND: Waveshare

Sold Out
R 494.99_{(inc VAT)}
R 430.43_{(ex VAT)}

Or split into 4x interest-free
payments of R107.60 Learn more

Collections: IoT, Internet of things

Type: ESP8266 & ESP32 Modules

Category: ESP32-S3 Development Board, Iot

ESP32-S3 Development Board

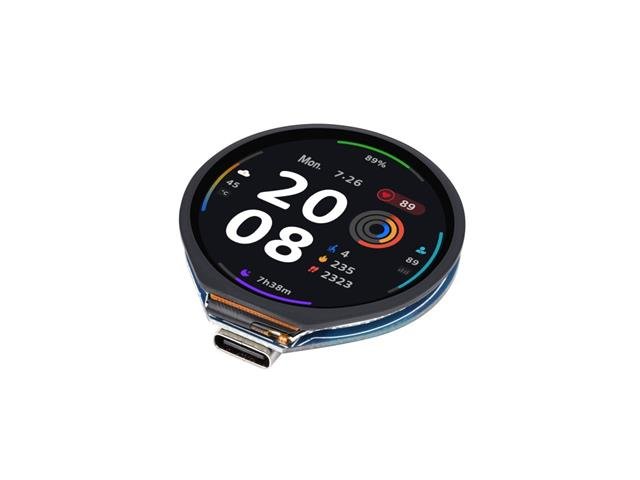

Overview

ESP32-S3-Touch-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.28inch capacitive touch display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly.

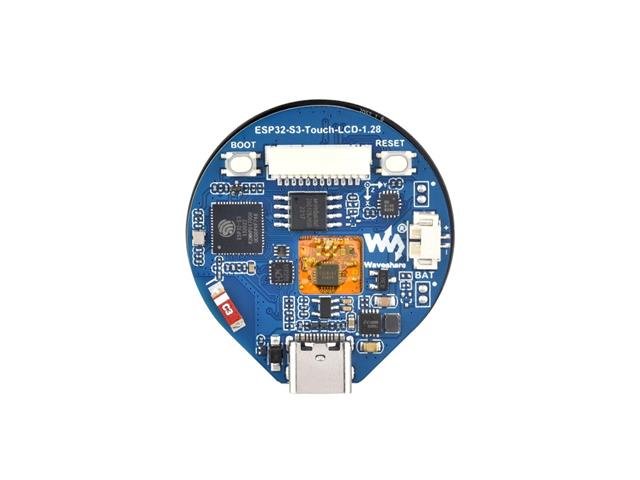

Features

Equipped with Xtensa® 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE), with onboard antenna
Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory
Type-C connector, keeps it up to date, easier to use
Onboard 1.28inch capacitive touch display, 240×240 resolution, 65K color
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture
Onboard 3.7V MX1.25 lithium battery recharge/discharge header

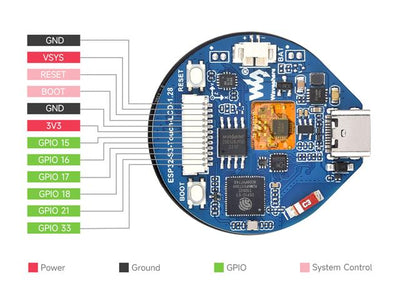

Adapting 6 × GPIO pins via SH1.0 connector
Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
Integrated with USB serial port full-speed controller, GPIO pins allows flexibly configuring pin functions

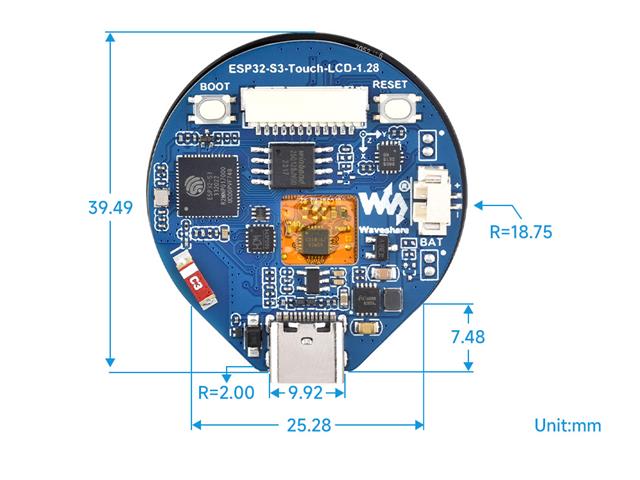

Specifications

Parameters

LCD Parameters
Touch Chip	CST816S	Touch Interface	I2C
Display Chip	GC9A01A	Display Interface	SPI
Resolution	240(H)RGB x 240(V)	Display Size	Φ32.4mm
Display Panel	IPS	Pixel Size	0.135(H) x 0.135(V)mm

IMU Parameters
Sensor	QMI8658
Accelaeration Parameters	Resolution: 16-bit Range (Optional): ±2, ±4, ±8, ±16g
Gyrometer	Resolution: 16-bit Range (Optional): ±16, ±32, ±64, ±128, ±256, ±512, ±1024, ±2048°/sec

Precautions

It is a normal phenomenon that the touch sensitivity and accuracy on the edge of the round touch screen will be reduced.
When using the development board, you need to pay attention to the ceramic antenna area and avoid the PCB board, metal, and plastic parts covering the ceramic antenna.
Onboard high-efficiency charge/discharge power management chip ETA6096 and MX1.25 battery header, the current charging current is set to 1A, the user can replace the R15 resistor to change the charging current, access to the 3.7V single-cell lithium battery. Please refer to the schematic for more details and connect a 3.7V single-cell lithium battery with appropriate capacity.
When setting up the environment, please be careful to use the provided library files with the specific ESP32 firmware version.

Additional Information

Device	Development Board
Type	ESP32-S3 \| 1.28INCH \| Capacitive Touch Display
References	wiki/ESP32-S3-Touch-LCD-1.28
