WVS ESP32 - S3 MCU WI - FI DEV BOARD - Development / Microcontroller Boards -

WVS ESP32-S3 MCU WI-FI DEV BOARD
ESP32-S3 Microcontroller, 2.4 Ghz Wi-fi Development Board, Dual-core Processor With Frequency Up To 240 MHZ

SKU: WVS ESP32-S3 MCU WI-FI DEV BOARD

BRAND: Waveshare


Sold Out

Or split into 4x interest-free
payments of R51.08 Learn more

Collections: IoT, Internet of things

Type: Development / Microcontroller Boards

Category: Iot, Wi-Fi Development Board

2.4 Ghz Wi-Fi Development Board

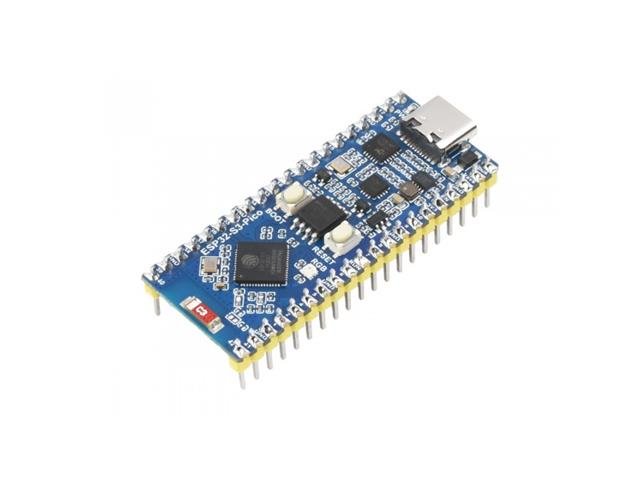

The ESP32-S3-Pico is a compact-size microcontroller development board with multiple digital interfaces. Adopts ESP32-S3R2 as the main chip, which is equipped with a dual-core Xtensa 32-bit LX7 processor with 240MHz running frequency, with built-in 512 KB SRAM (TCM) and 2MB PSRAM; Onboard CH343 and CH334 chips for USB and UART development via USB-C port; Onboard MP28164 high efficiency DC-DC buck-boost chip with load current up to 2A, ensuring the safety of the product.
  • Adopts ESP32-S3R2 chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
  • Integrated 512KB SRAM, 384KB ROM, 2MB PSRAM, 16MB Flash memory
  • Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance.
  • Type-C connector, easier to use
  • Onboard CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface
  • Onboard DC-DC chip MP28164, high efficiency DC-DC buck-boost chip with load current up to 2A
  • 27 × multi-function GPIO pins
  • Rich peripheral interfaces, including full-speed USB OTG, SPI, I2C, UART, ADC, PWM and DVP (8-bit ~ 16-bit camera interface), LCD interfaces (8-bit ~ 16-bit parallel RGB, I8080, MOTO6800), etc. to achieve various functions flexibly
  • Castellated module allows soldering directly to carrier boards
  • Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios
  • Supports Raspberry Pi Pico expansion board ecology, suitable for artificial intelligence IoT application development
Device Development Board
Type 2.4 Ghz | Wi-Fi
