WVS CP2102 MICRO USB TO UART BRD

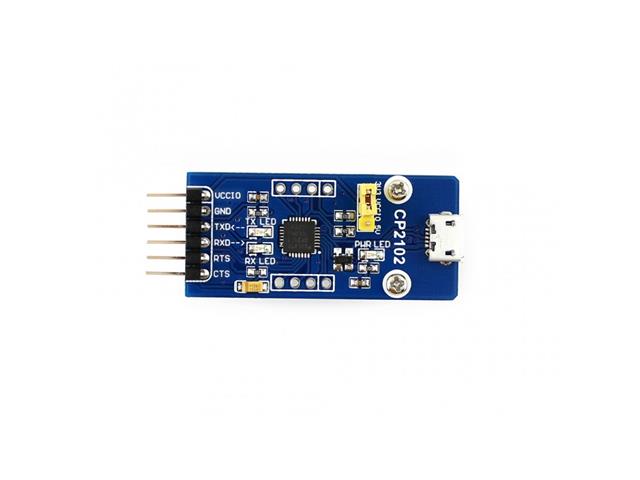

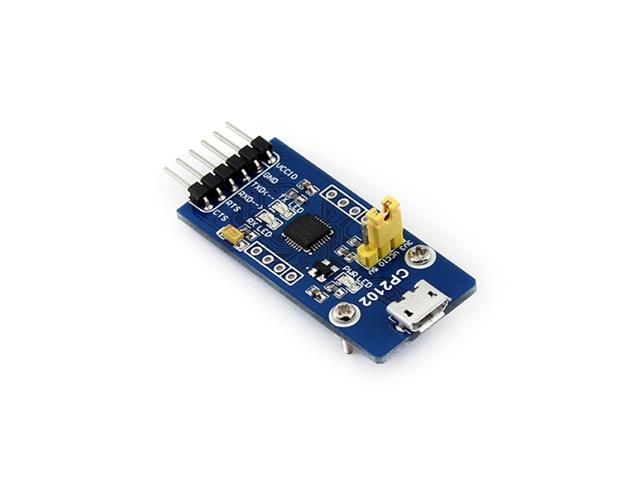

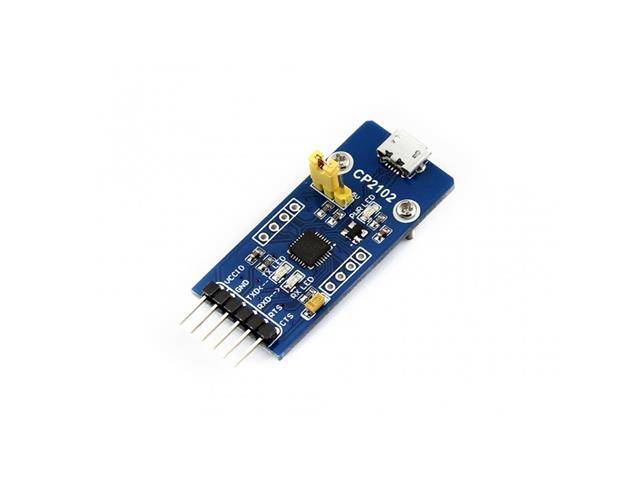

The CP2102 USB UART Board with Micro USB Interface is a Breakout Board that features the Single-Chip USB to UART Bridge CP2102 Onboard.

Name: WVS CP2102 MICRO USB TO UART BRD - Communica [Part No: WVS CP2102 MICRO USB TO UART BRD]
Brand: Waveshare
SKU: WVS CP2102 MICRO USB TO UART BRD
Price: 100 ZAR
Availability: OutOfStock

SKU: WVS CP2102 MICRO USB TO UART BRD

BRAND: Waveshare

Sold Out
R 115.00_{(inc VAT)}
R 100.00_{(ex VAT)}

Or split into 4x interest-free
payments of R25 Learn more

Collections: IoT, Internet of things

Type: Breakout boards / Shields / Modules

Category: CP2102 USB UART Board, Iot

CP2102 USB UART Board with Micro USB

Features

Supports Mac, Linux, Android, WinCE, Windows 7/8/8.1/10/11...
Voltage output support: 5V or 3.3V
Integrated USB protection device: SP0503
3 LEDs: TXD LED, RXD LED, POWER LED
Pins accessible on pinheaders: TXD, RXD, RTS, CTS

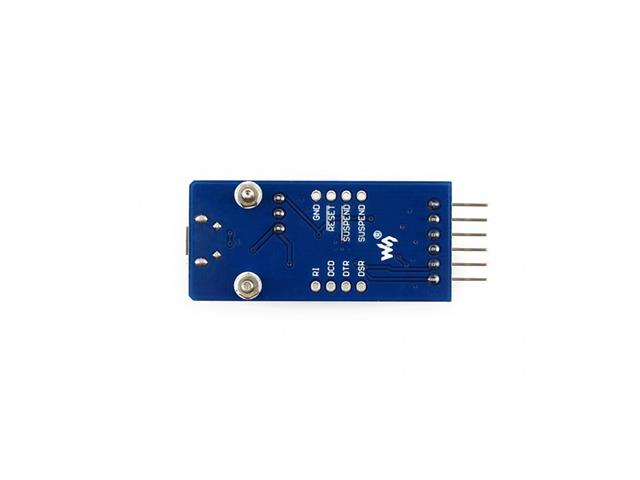

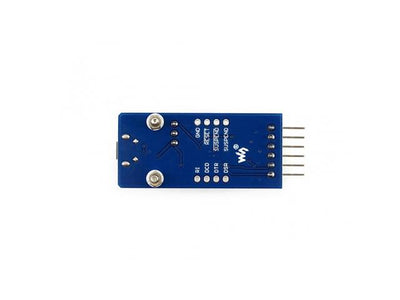

Other pins are accessible on drilled holes, easily connected to user application system (separate pinheaders are provided)

How to Use

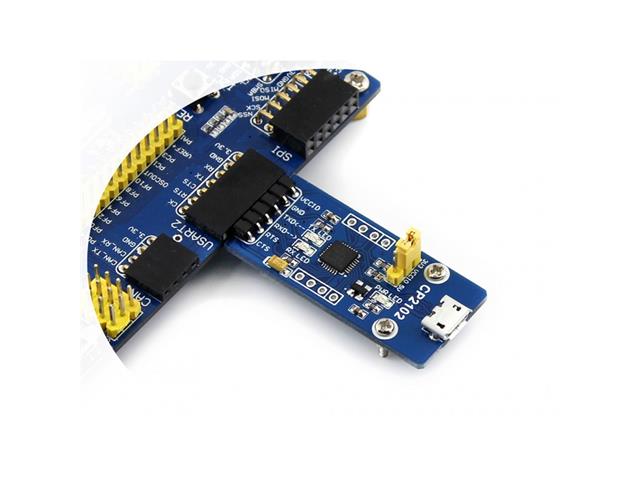

In the case of working with a MCU:

VCCIO: 3.3V or 5V output (the module is powered from USB, onboard jumper should be shorted to 3.3V or 5V)
GND: connects to GND
TXD: connects to MCU.RX (signal direction: MCU.RX << CP2102 << PC.TX)
RXD: connects to MCU.TX (signal direction: MCU.TX >> CP2102 >> PC.RX)
RTS: connects to MCU.CTS (signal direction: MCU.CTS << CP2102 << PC.RTS)
CTS: connects to MCU.RTS (signal direction: MCU.RTS >> CP2102 >> PC.CTS)

Specifications

CP2102 features:

Single-Chip USB to UART Data Transfer
- No external resistors required, no external crystal required
- On-chip power-on reset circuit and voltage regulator
- Integrated 1024-Byte EEPROM
USB Function Controller
- USB Specification 2.0 compliant; full-speed (12 Mbps)
- USB suspend states supported via SUSPEND pins
UART
- All handshaking and modem interface signals
- Data formats supported:
  - Data bits: 5, 6, 7, and 8
  - Stop bits: 1, 1.5, and 2
  - Parity: odd, even, no parity
- Baud rates: 300 bps to 1 Mbits
- 576 Byte receive buffer; 640 byte transmit buffer
- Hardware or X-On/X-Off handshaking supported
- Event character support
Virtual COM Port Device Drivers
- Windows 8/7/Vista/Server 2003/XP/2000
- MAC OS-X/OS-9
- Linux 2.40 or higher
USBXpress Direct Driver Support
- Windows 7/Vista/Server 2003/XP/2000
- Windows CE
Temperature Range
- –40 to +85 °C

Downloads

Additional Information

Device	CP2102 USB UART Board
Type	Micro USB
