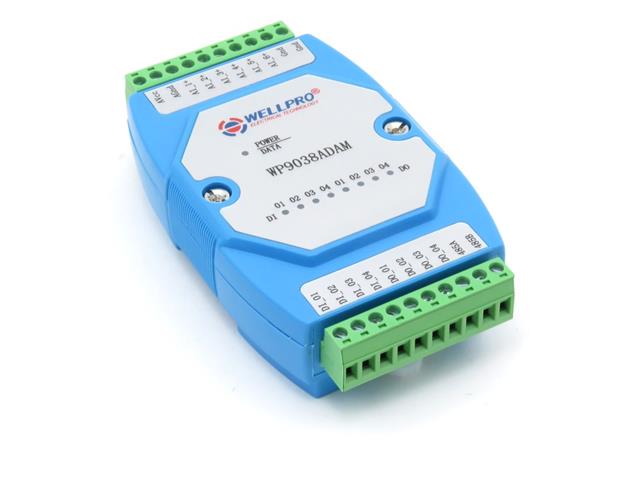

WP9038ADAM

SKU: WP9038ADAM

BRAND: Wellpro


RS485 MODBUS RTU standard communication protocol -Six current input channel: DC0~20mA / DC4~20mA / Four optoelectronic isolation digital I/O - Input (Low level) / Output (NPN Collector)

Standard Modbus RTU Communication Protocol

Features

  • Six current input channel: DC0~20mA / DC4~20mA
  • Four optoelectronic isolation digital input channel (Low level input)
  • Four optoelectronic isolation digital output channel (NPN collector output)
  • RS485 MODBUS RTU standard communication protocol
  • Netted with configuration software, PLC or industry touch panel
  • Communication, digital input and digital output status LED
  • Communication circuit designed for thunder protection and interference immunity
  • Used for signal collection and control in industrial field

Specifications

  • Analog input channel 6ch
  •  Analog input range DC0~20mA / DC4~20mA
  •  Analog input accuracy ±0.02mA
  •  Digital input channel 4ch (Low level input)
  •  Digital output channel 4ch (NPN collector output, 500mA)
  •  Working temperature -20~70℃
  •  External power supply DC9V~30V/2W
  •  Isolation protection DC1500V
  •  Installation method Standard DIN slide rail or screw
  •  Dimension 125×73×35mm

Downloads

Additional Information

Device Modbus
Type RS485
