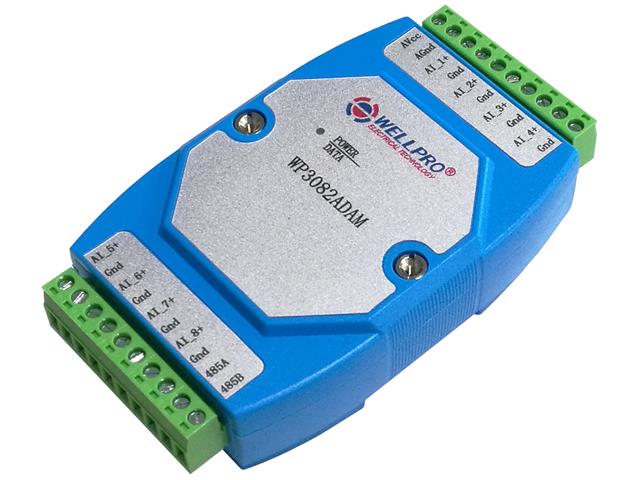

WP3082ADAM
RS485 MODBUS RTU Standard Communication Protocol - Eight Current Input Channel: DC0~20mA / DC4~20mA

SKU: WP3082ADAM

BRAND: Wellpro

Sold Out
R 1,405.40_{(inc VAT)}
R 1,222.09_{(ex VAT)}

Collections: Electromechanical

Type: Industrial Automation

Category: RS485 MODBUS signal collection and control devices

Standard Modbus RTU Communication Protocol

Features

Eight current input channel: DC0~20mA / DC4~20mA
RS485 MODBUS RTU standard communication protocol
Netted with configuration software, PLC or industry touch panel
Communication status LED
Communication circuit designed for thunder protection and interference immunity
Used for signal collection and control in industrial field

Specifications

Analog input channel 8ch
Analog input range DC0~20mA / DC4~20mA
Analog input accuracy ±0.02mA
Working temperature -20~70℃
External power supply DC9V~30V/2W
Isolation protection DC1500V
Installation method Standard DIN slide rail or screw
Dimension 125×73×35mm

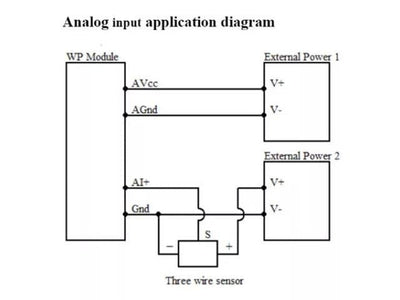

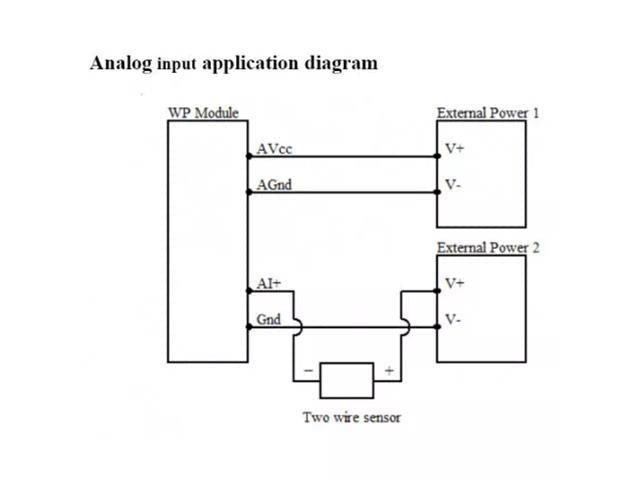

Pin Function

AVcc : External power supply input positive
AGnd : External power supply input negative / Power ground
AI_1+: Current input channel 1 positive
Gnd : Current input channel negative / Common analog ground
AI_2+ : Current input channel 2 positive
Gnd: Current input channel negative / Common analog ground
AI_3+: Current input channel 3 positive
Gnd: Current input channel negative / Common analog ground
AI_4+: Current input channel 4 positive
Gnd : Current input channel negative / Common analog ground
AI_5+: Current input channel 5 positive
Gnd: Current input channel negative / Common analog ground
AI_6+: Current input channel 6 positive
Gnd: Current input channel negative / Common analog ground
AI_7+: Current input channel 7 positive
Gnd : Current input channel negative / Common analog ground
AI_8+ : Current input channel 8 positive
Gnd : current input channel negative / Common analog ground
485B : RS485 signal B-
485A : RS485 signal A+

Downloads

Datasheet - WP3082ADAM

Additional Information

Device	Modbus
Type	RS485
