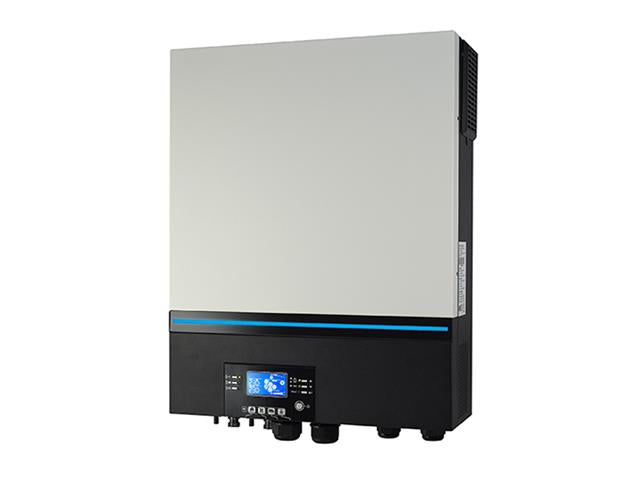

VP MKS 11K MCR - Power Inverters -

VP MKS 11K MCR
Voltronic Power Pure Sine Wave Inverter 11000VA/11000W 48VDC ,O/P:230VAC , MAX PV:11000W OCV:500VDC, Surge Power:22000VA, Built-in MPPT, Max Solar Charge Current 150A, Max AC Charge Current 150A, USB/RS232/RS485/WIFI/Dry-Contact, 147X432X553, 18.4kg

SKU: VP MKS 11K MCR

BRAND: Voltronic


In Stock
R 32,142.50 (inc VAT)
R 27,950.00 (ex VAT)

Collections: Loadshedding, Power

Type: Power Inverters

Category: Loadshedding, Pure Sine Wave Inverters

Power Pure Sine Wave Inverter

  • Status indication with RGB lights
  • Built-in Wi-Fi for mobile monitoring (Android/iOS App is available)
  • Supports USB On-the-Go function
  • Reserved communication port for BMS
  • Replaceable fan design for ease of maintenance
  • Battery independent design
  • Configurable AC/PV output usage timer and prioritization
  • Selectable high power charging current
  • Selectable input voltage range for home appliances and personal computers
  • Compatible to Utility Mains or generator input
  • Built-in anti-dust kit
  • Parallel operation with 6 units
  • Dual outputs selected as either programmable output or generator input
  • MODEL : Axpert MAX E-11000
  • Rated Power : 11000VA/11000W
  • Parallel Capability : YES, 6 units

INPUT

  • Voltage : 230 VAC
  • Selectable Voltage Range : 170-280 VAC (For Computers), 90-280 VAC (For Home Appliances)
  • Frequency Range : 50 Hz/60 Hz (Auto sensing)

OUTPUT

  • AC Voltage Regulation (Batt. Mode) : 230VAC ± 5%
  • Surge Power : 22000VA
  • Efficiency (Peak) : 93%
  • Transfer Time : 10 ms (For Personal Computers), 20 ms (For Home Appliances)
  • Waveform : Pure sine wave
  • No Load Power Consumption : <70W
  • Dual Outputs : Yes

BATTERY

  • Battery Voltage : 48 VDC
  • Floating Charge Voltage : 54 VDC
  • Overcharge Protection : 63 VDC

SOLAR CHARGER & AC CHARGER

  • Solar Charger Type : MPPT
  • Maximum PV Array Power : 11000W
  • MPPT Range @ Operating Voltage : 90 ~ 450 VDC
  • Maximum PV Array Open Circuit Voltage : 500 VDC
  • Maxmum Solar Charge Current : 150A
  • Maximum AC Charge Current : 150A
  • Maximum Charge Current : 150A

PHYSICAL

  • Dimension, D x W x H (mm) : 147.4 x 432.5 x 553.6
  • Net Weight (kgs) : 18.4
  • Communication Interface : USB/RS232/RS485/WiFi/Dry-contact

OPERATING ENVIRONMENT

  • Humidity : 5% to 95% Relative Humidity(Non-condensing)
  • Operating Temperature : -10°C to 50°C
  • Storage Temperature : -15°C to 60°C
Device Inverter
Type Power | Pure Sine Wave
