VON30 BLACK

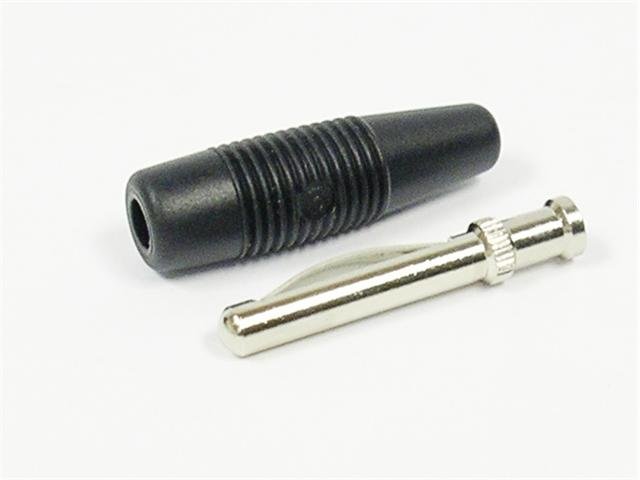

Banana Plug 4mm Nickel Plated Brass Contact 30A 30VAC / 60VDC CAT I

Name: VON30 BLACK - Communica [Part No: VON30 BLACK]
Brand: SKS Hirschmann
SKU: VON30 BLACK
Price: 23.50 ZAR
Availability: InStock

SKU: VON30 BLACK

BRAND: SKS Hirschmann

In Stock
R 27.03_{(inc VAT)}
R 23.50_{(ex VAT)}

Or split into 4x interest-free
payments of R5.87 Learn more

Collections: SKS Hirschmann, Test & Measurement

Type: Test Plugs & Sockets

Category: Banana Plug

Banana Plug 4mm Nickel Plated Brass

Overview

Fully mating connector, shatter-proof, flexible insulated sleeve. The tapering sleeve end also serves as kinking protection for the lead. Solder connection up to maximum cable cross-section of 2.5 mm². Nickel-plated brass contact material.

Features

Connection : Solder Connection
Rated Voltage(1) : 30 VAC / 60 VDC
Measurement Cat. acc. to IEC 61010 : CAT I
Rated Current(1) (consider derating curve) : 30 A
Material Plug : Brass, Nickel Plated
Housing Material : PVC-P
Temperature Range acc. To IEC61010(2) : -25 °C to +70 °C
Standard : IEC 61010
for normal environmental conditions -5°C to +40°C

Downloads

Datasheet - VON30

Additional Information

Device	Plug
Type	Banana \| Nickel Plated \| Brass
Colour	Black
Size	4mm
