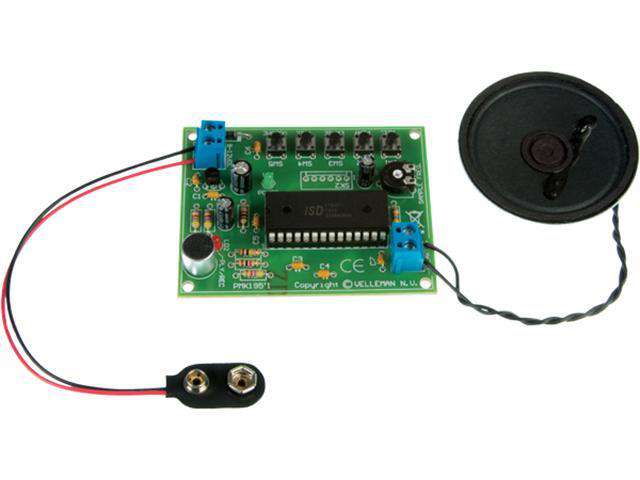

VELLEMAN MK195
12V Voice Recording/Playback Module with 57mm speaker

SKU: VELLEMAN MK195

BRAND: Velleman

Sold Out
R 500.25_{(inc VAT)}
R 435.00_{(ex VAT)}

Collections: DIY Kits

Type: Audio / Amplifiers ect

Category: Voice Recorder

Features

Recording time between 30 and 90s (adjust the sample rate)
On-board microphone
57mm speaker included
Using the speed adjustment, a "funny voice" can be created
External open-collector trigger inputs for recording, playback, delete, next, and volume

Specification

Power supply : 9 ~ 12 VDC or with a 9V battery
Power consumption :
- max. 150mA during playback
- max. 6mA during standby
Adjustable sampling rate : 5~12 kHz
Speaker output: 500 mW max., 8 ohm
Nominal recording time: 60 seconds
PCB dimensions: 77x60x15mm
