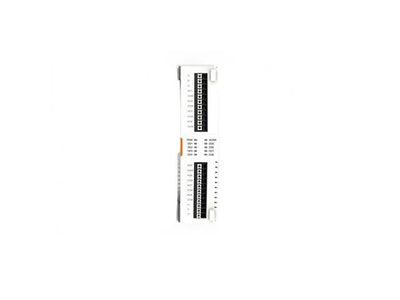

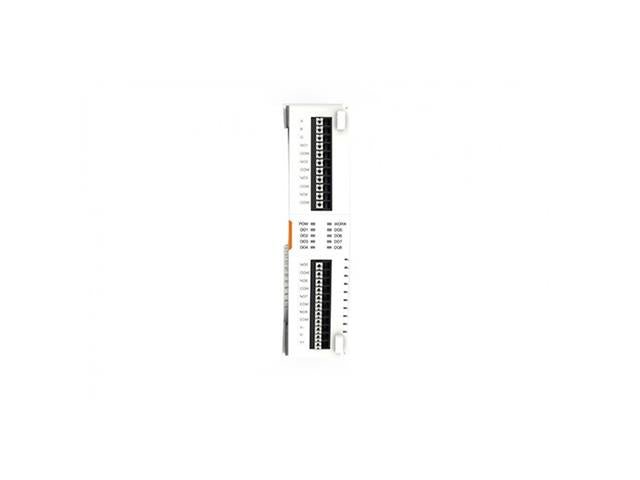

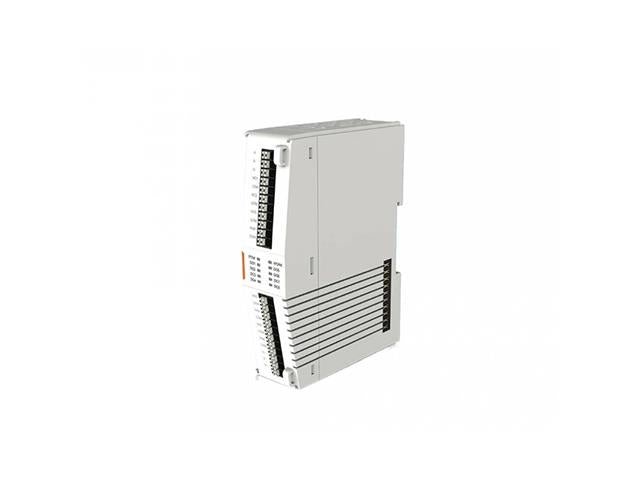

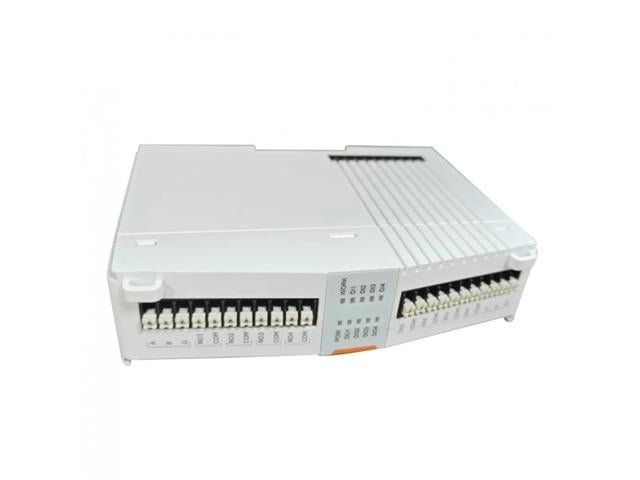

USR IO0440 IO EXPANSION MODULE
Expansion Module, 4 Analogue Inputs & 4 Digital Outputs. For use with USR M100-ETH REMOT IO EDG GATEWY, USR M100-EAU REMOT IO EDG Gatewy and USR M300 Remote I/O Edge Gateway

SKU: USR IO0440 IO EXPANSION MODULE

BRAND: UsrIoT


Or split into 4x interest-free
payments of R150 Learn more

Expansion Module

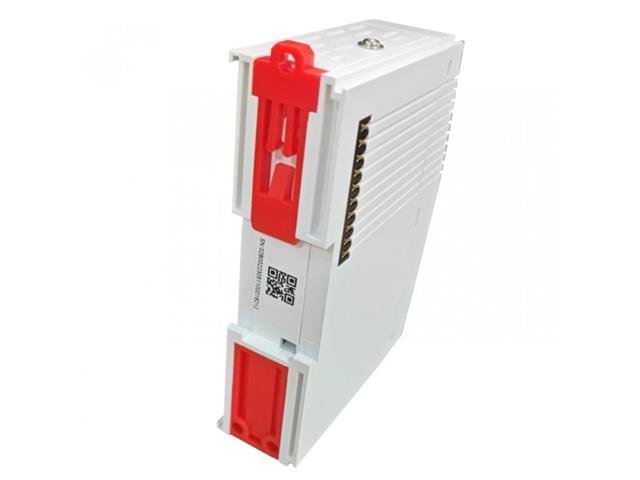

USR-IO4040 controller is a new generation of IO acquisition and control module launched by someone. It adopts expanded structural design, flexible matching, standard RS485 interface, and standard Modbus RTU protocol to quickly achieve application matching. The product is compact in size, rail + mounting ears. Three-dimensional installation saves space. Simple and practical, with rich indicator lights, you can judge the device status at a glance.

The USR-IO0440 4 AI (Analog Input) + 4 DO (Digital Output) Extension Module is a cutting-edge industrial solution crafted to elevate the capabilities of the M100 series. This module seamlessly integrates with M100 controllers, providing enhanced analog input and digital output functionalities for a wide array of applications in industrial automation, control systems, and precision monitoring.

  • Interface : RS485
  • Analog Input : 4
  • Digital Output : 4
  • Default parameters : 9600, NONE, 8, 1
  • Baud rate : 4800, 9600, 115200, 230400
  • Check digit : NONE, EVEN, ODD
  • Data bits : 8
  • Stop bits : 1, 2
  • power supply :  DC 12~24V
  • Normal operating temperature : -25℃ ~ +75℃
  • storage temperature : -40℃ ~ +105℃

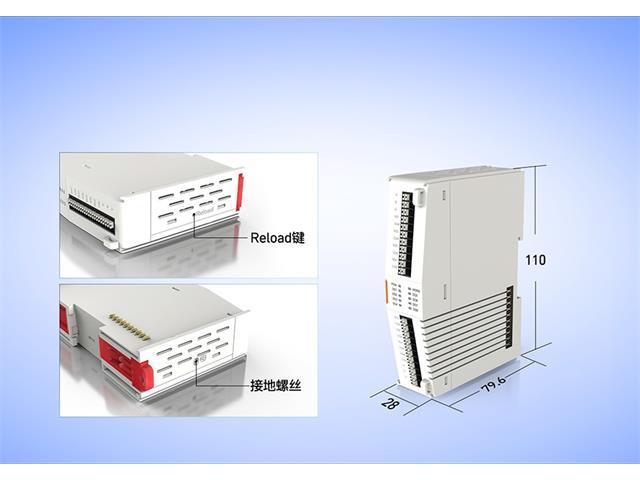

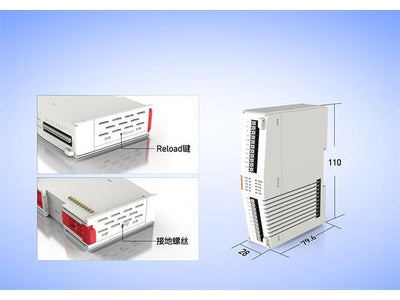

  • Dimensions (mm) : 79.6x 28x110 (mm)

IO Interface

  • DI : Digital input, 9-36V is high (status is set to 1), 0-2V is low (status is set to 0), optocoupler isolation
  • AI : Current detection, 4~20mA
  • DO : Relay output, contact load: 3A 250VAC/ 3A 30VDC, durability: 100,000 times
Device Module
Type 4 Analogue Inputs | 4 Digital Outputs
