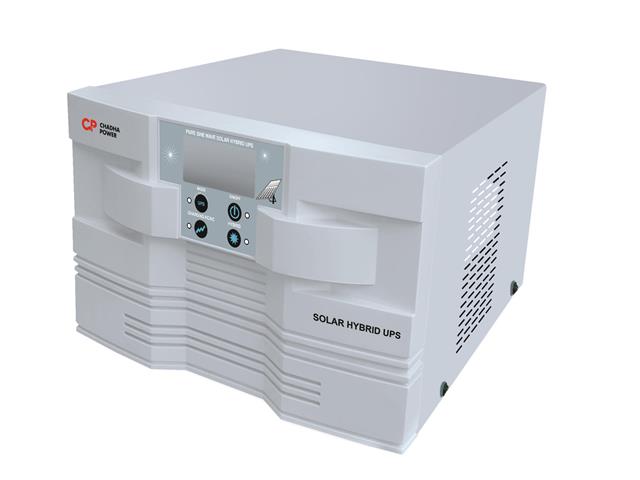

UPS HOME 1450VA HYBRID 24V - Power Inverters -

UPS HOME 1450VA HYBRID 24V
Chadha Power UPS/Inverter 1450VA 24VDC Pure Sine Wave 1160W, Max Solar I/P: 900W, Max Solar Charging CurrenT:30A, PWM Controller, 400x370x250mm, 17Kg, {Not Compatable with Omni Power / Lithium & Gel Batteries}

SKU: UPS HOME 1450VA HYBRID 24V

BRAND: Chadha


In Stock
R 4,542.50 (inc VAT)
R 3,950.00 (ex VAT)

Or split into 4x interest-free
payments of R987.50 Learn more

Collections: Loadshedding, Power

Type: Power Inverters

Category: Hybrid Inverter, Loadshedding

Power UPS/Inverter

  • Output Wave Form : Sinusoidal Wave Form
  • Power Card Design : Microcontroller Based, MOSFET Topology
  • Power Transformer Design : Copper Winding
  • Charging Technology : ASIC (Automatic Sense Intelligent Control)
  • Cooling : Air Cooled by in-built ventilation cooling fan
  • Mains Low Voltage Charging Available (8~10Amp Current at 120V Mains Input if battery voltage below 13V)
  • Wide Voltage Range : Wide Voltage Range from 90V - 300V for Charging
  • 8 Display Type : LCD & LED Indicator
  • Solar Charge Controller Rating : 30Amp (for upto 1450VA) & 50Amp (for 2KVA only)
  • Solar Charge Controller Type : PWM Hybrid

    Protections
  • Output Short Circuit Protection with Audio Alarm
  • Battery Reverse Protection Through DC Fuse
  • Short Circuit Protection at Mains Mode through AC Fuse with Audio Alarm
  • Battery Under Voltage and Over Voltage Charge Protection
  • Intelligent Overload Sensing Circuitry with auto retries facility with Audio Alarm
  • Phase Reverse Protection as Short Circuit with Audio Alarm
  • Over Temperature Protection with Audio Alarm
  • PV Reverse Protection with audio alarm
  • Reverse Current Flow Protection
  • No Load Output Voltage : 220V ± 7V
  • Charging Current (±1A) : HC-17A NC-12A
  • Transfer Time (UPS Mode) : < 10msec
  • Battery Boost Voltage (± 0.2V/ Batt.) : 28.8V
  • Battery Float Voltage (± 0.2V/ Batt.) : 27.4V
  • Charging Voltage Range (Normal Mode) : 90 VAC - 300 VAC
  • Charging Voltage Range (UPS Mode) : 180 VAC - 270 VAC
  • Output Frequency (Back-up Mode) : 450 Watt
  • Output Wave Form : Pure Sine Wave
  • Maximum Solar Input 900 Watt
  • Maximum Solar Charging Current (± 2Amp) : 30Amp
  • Charge Sharing : Available
  • Total Harmonics Distortion (THD) : <5% at Linear Load
  • Operating Temperature Range : 0&deg; C to 45&deg; C
  • Over Temperature Range : 95&deg; C ± 10&deg; C
  • Over Load Retries : 6 Time Auto Retries
  • Battery Low Retries : 4 Time Auto Retries
  • Battery Low Pre-Alarm (± 0.2/Batt.) : 21.6V
  • Battery Low Cut-Off (± 0.2/Batt.) : 21.0V
  • Short Circuit Retry Available
  • 21 Overload/Short Circuit/ Battery Low Reset : Through ON/OFF Switch or Mains Input

    Weights and Dimensions
  • Dimensions (±10 mm) : 400x370x250
  • Net Weight (±0.5 Kg) : 17.000 Kg
  • Gross Weight (±1 Kg) : 18.000 Kg
Device UPS/Inverter
Type Power
